The TeraFlex Pro LCG (Low Center-of-Gravity) Long Arm Suspension System is engineered for serious Jeep TJ Wrangler Unlimited owners who demand exceptional off-road capability without sacrificing on-road comfort and control. This complete 4-inch lift system includes all necessary components to transform your suspension geometry and deliver superior performance on any terrain.
Advanced Front Suspension Design:
The Pro LCG system enhances the stock 5-link front suspension with adjustable LCG Long Control Arms and Brackets. The front upper LCG long control arms extend more than 9 inches beyond stock length, allowing for optimized caster angle and pinion angle adjustment. This results in improved steering response, reduced vibration, and better suspension articulation during extreme off-road conditions.
Triangulated 4-Link Rear Suspension:
The rear suspension replaces the factory 5-link configuration and track bar with an adjustable Pro LCG Triangulated 4-Link Long Control Arm setup. This includes a rear axle truss and adjustable anti-squat brackets that allow you to fine-tune suspension behavior. The repositioned frame-end control arm mounting points relax suspension link angles, reducing bushing stress during extreme droop and minimizing shock load transfer through the control arms.
Superior Handling and Geometry:
The system includes a high-steer HD adjustable front track bar, drop pitman arm, and rear upper pro LCG triangulated 4-link control arms that work together to center the axles, optimize vehicle roll center, and reduce body roll. The restored front and rear roll axis angles minimize brake dive and acceleration squat, while significantly reducing noise, vibration, and harshness (NVH) for a comfortable ride quality.

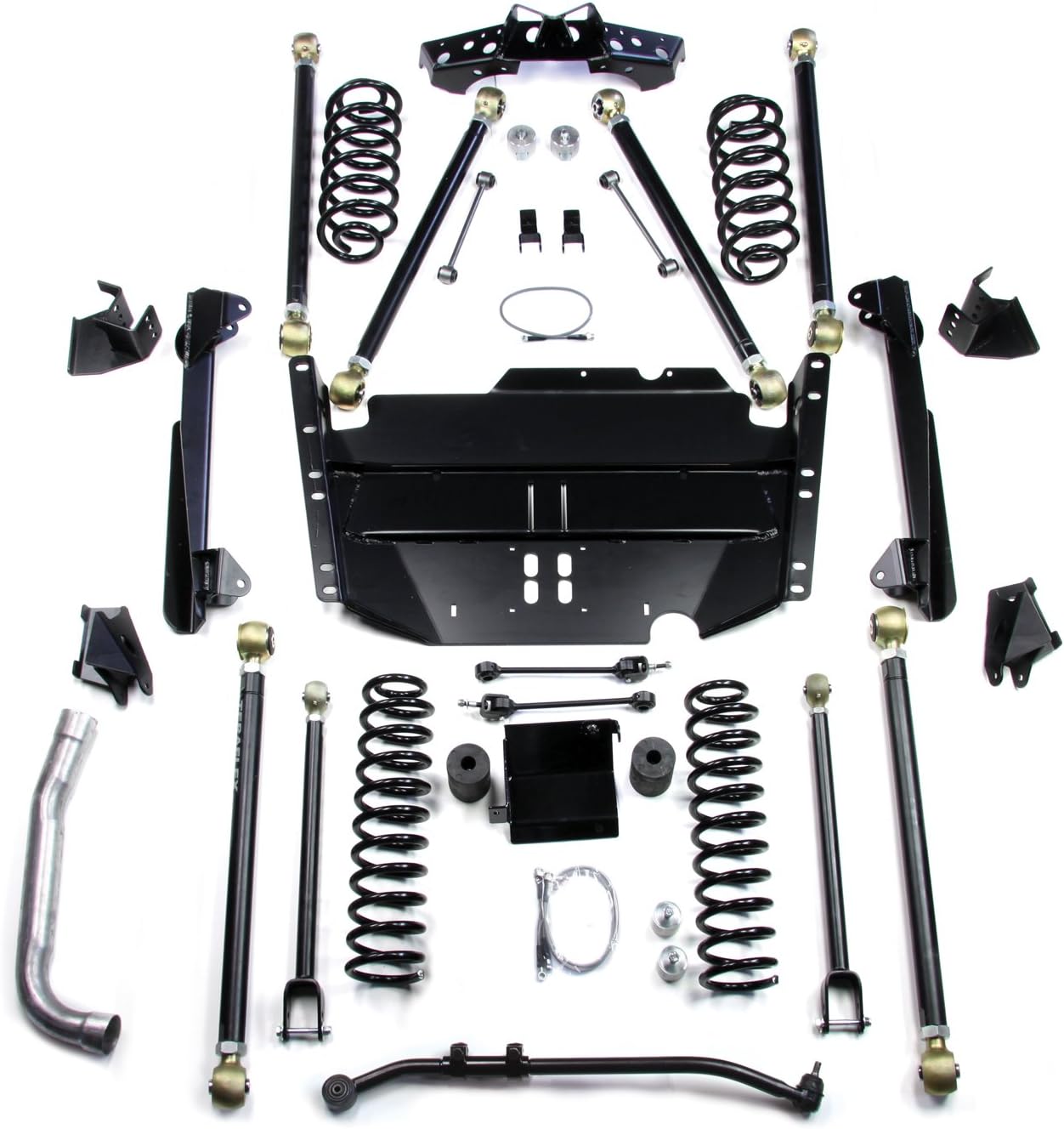

Complete System Includes:
- 4-inch lift coil springs (front and rear)
- Pro LCG long control arm and bracket kit - front upper (3-5 inch lift)
- LCG long control arm and bracket kit - front lower (3-5 inch lift)
- Pro LCG 4-link long control arm and bracket kit - rear upper (3-5 inch lift)
- HD adjustable front track bar (3.5-6 inch lift)
- High steer front track bar frame bracket kit
- Drop pitman arm (3.5-6 inch lift)
- Front upper bump stop extension kit - 2.25 inch (LCG lift)
- Rear lower bump stop extension kit - 1.75 inch (LCG lift)
- 10-inch front sway bar quick disconnect kit (3-6 inch lift)
- 10.5-inch rear sway bar link kit (2.5-5 inch lift)
- BellyUp skid plate kit
- HD steering box skid plate kit
- 1-inch transfer case lowering spacer kit (2003-2006 TJ)
- Shift linkage plate kit (year-specific)
- 26-inch stainless steel braided brake line kit (front and rear)
- Exhaust pipe extension
- Rear lower shock extension kit
- All necessary hardware
Specifications:
- Designed for 2003-2006 Jeep Wrangler TJ Unlimited (LWB - Long Wheelbase)
- Lift Height: 4 inches
- Maximum Tire Diameter: 35 inches
- Shocks NOT included
This comprehensive suspension system provides the perfect balance of extreme off-road performance and comfortable daily driving characteristics, making it ideal for enthusiasts who refuse to compromise.
