TeraFlex Suspension 1149075 Pro LCG Long Arm Suspension System for Coilover Setup 97-06 Jeep Wrangler TJ SWB

(1997-2006 Jeep Wrangler; 1997-2006 Jeep TJ)

Manufacturer

Part Number

1149075
Black Friday Price

$4,275.99

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The TeraFlex Pro LCG (Low Center-of-Gravity) Long Arm Suspension System is engineered for serious off-road performance without sacrificing on-road comfort and control in the 1997–2006 Jeep Wrangler TJ (short wheelbase). Designed specifically for use with aftermarket coilovers (not included), this comprehensive system addresses every major suspension geometry concern on lifted TJ builds running 3–5 inch lift heights.

Up front, the Pro LCG system expands on the stock 5-link suspension configuration with adjustable LCG Long Control Arms and Brackets. The front upper LCG long control arms are more than 9 inches longer than stock, dramatically improving caster angle correction and reducing bind throughout the suspension travel. Out back, the stock 5-link rear suspension and track bar are replaced by the Pro LCG Triangulated 4-Link Long Control Arm Suspension, complete with a rear axle truss and brackets for maximum rigidity and geometry correction.

The rear upper brackets include adjustable anti-squat tunability, allowing fine-tuning of the suspension for different load and terrain conditions. The LCG long arm brackets and 4-link rear axle truss reposition the frame-end control arm mounting points to relax suspension link angles on higher lifts, reducing bushing stress during extreme droop and minimizing shock load transferred through the control arms. The included HD Adjustable Front Track Bar, Drop Pitman Arm (4 inch+), and Rear Upper Pro LCG Triangulated 4-Link Control Arms work together to improve steering response, center the axles, optimize vehicle roll center, and reduce body roll.

This system restores front and rear roll axis angles to minimize brake dive and acceleration squat, resulting in a superior ride quality across all terrain types. TeraFlex engineering also delivers reduced noise, vibration, and harshness (NVH) compared to short-arm lift configurations.

Note: This system is designed for use with coilovers. Coilovers and coilover mounts are not included and must be purchased separately from the aftermarket.

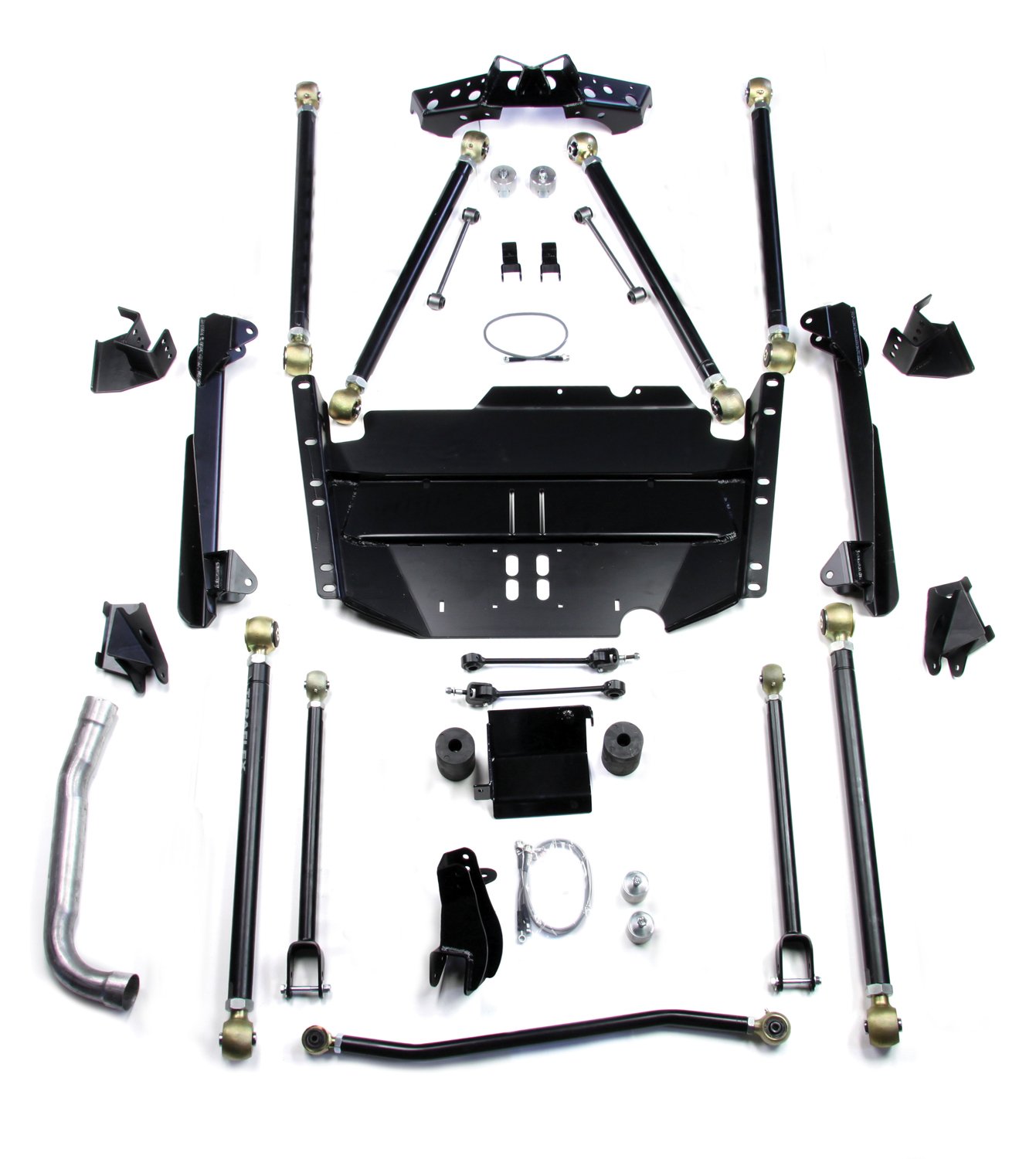

What's Included:

  • Pro LCG Long Control Arm & Bracket Kit – Front Upper, 3–5 Inch Lift (#1443470)
  • LCG Long Control Arm & Bracket Kit – Lower, 3–5 Inch Lift (#1447700)
  • Pro LCG 4-Link Long Control Arm & Bracket Kit – Rear Upper, 3–5 Inch Lift (#1444870)
  • HD Adjustable Front Track Bar, 3.5–6 Inch Lift (#1743070)
  • High Steer Front Track Bar Frame Bracket Kit (#1743031)
  • 10 Inch Front Sway Bar Quick Disconnect Kit, 3–6 Inch Lift (#1743090)
  • 10.5 Inch Rear Sway Bar Link Kit, 2.5–5 Inch Lift (#1944011)
  • BellyUp Skid Plate Kit (#4648403)
  • HD Steering Box Skid Plate Kit (#4627400)
  • 26 Inch Stainless Steel Braided Brake Line Kit – Front & Rear (#4350400)
  • Exhaust Pipe Extension
  • All necessary hardware

Products specifications

Fits

1997-2006 Jeep Wrangler; 1997-2006 Jeep TJ

Prop 65

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

NAFTA

B

Country of Origin

China

Harmonized Tariff Code

8708.80

Sold As

Each

UNIVERSAL

No
