Diode Dynamics DD5177 Elite Max LED Headlights Black Housing Clear Lens

(2021-2023 Ford F-150)

Manufacturer

Part Number

DD5177
Black Friday Price

$1,925.88

2 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Diode Dynamics DD5177 Elite Max Series LED Headlights are a premium, full-replacement headlight assembly featuring a black housing and clear lens. Engineered and assembled in St. Louis, Missouri using OEM-grade materials, these are the only aftermarket headlights for the F-150 built entirely in the USA — delivering factory-level quality with performance that surpasses it.

Maximum Light Output

Dual rectangular bi-LED projectors provide full LED illumination for both low beam and high beam functions. Output is rated at 665 lumens / 89,100 cd at 30W (low beam) and 1,210 lumens / 106,200 cd at 43W (high beam), both at 6000K — delivering nearly double the peak intensity of the factory projector lamps.

Key Features:

  • Dual Bi-LED Projectors — Full LED low and high beam illumination with exceptional center intensity and beam width
  • Selectable Blade DRL — Choose between crisp white or amber daytime running light color, with the option to add or remove the horizontal bar; programmable from inside the vehicle using existing controls — no extra switches or wiring required
  • Sequential Turn Signal — 12 amber LEDs in the DRL bar sequence outboard when the turn signal is activated, switching back to your selected DRL color when complete
  • Modern Welcome Sequence — Gradual LED illumination on startup; programmable and can be disabled; coordinates with Elite Series fog lights (if installed) for a fully integrated look
  • Adaptive Low Beam Assist (Elite Max) — Patent-pending feature activates an auxiliary pod to add extreme width to the sides of the road; can be enabled, disabled, or set to activate only during turns
  • High Beam Boost (Elite Max) — Additional output mode for maximum distance visibility
  • Integrated Off-Road Lighting & Show Mode (Elite Max) — Activates via an included braided wiring harness with toggle switch, or connects to an aftermarket switch bank
  • FMVSS 108 Compliant — Street legal for use in the United States

Proven Durability

Tested to SAE standards for long-term operation from -40°F to 185°F, including vibration, moisture intrusion, and corrosion resistance. Features integrated moisture-proof vents, robotic sealing, IP67 weatherproofing, and built-in circuit protection against voltage spikes and reverse polarity.

Plug-and-Play Installation

Direct-fit replacement for factory projector headlight assemblies. Includes a plug-and-play wire harness — no splicing, no FORScan, and no reprogramming required. Built-in adjusters allow for proper beam aim using the included adjustment tool. Elite Max models also include an extra braided wiring harness for the off-road and show mode features.

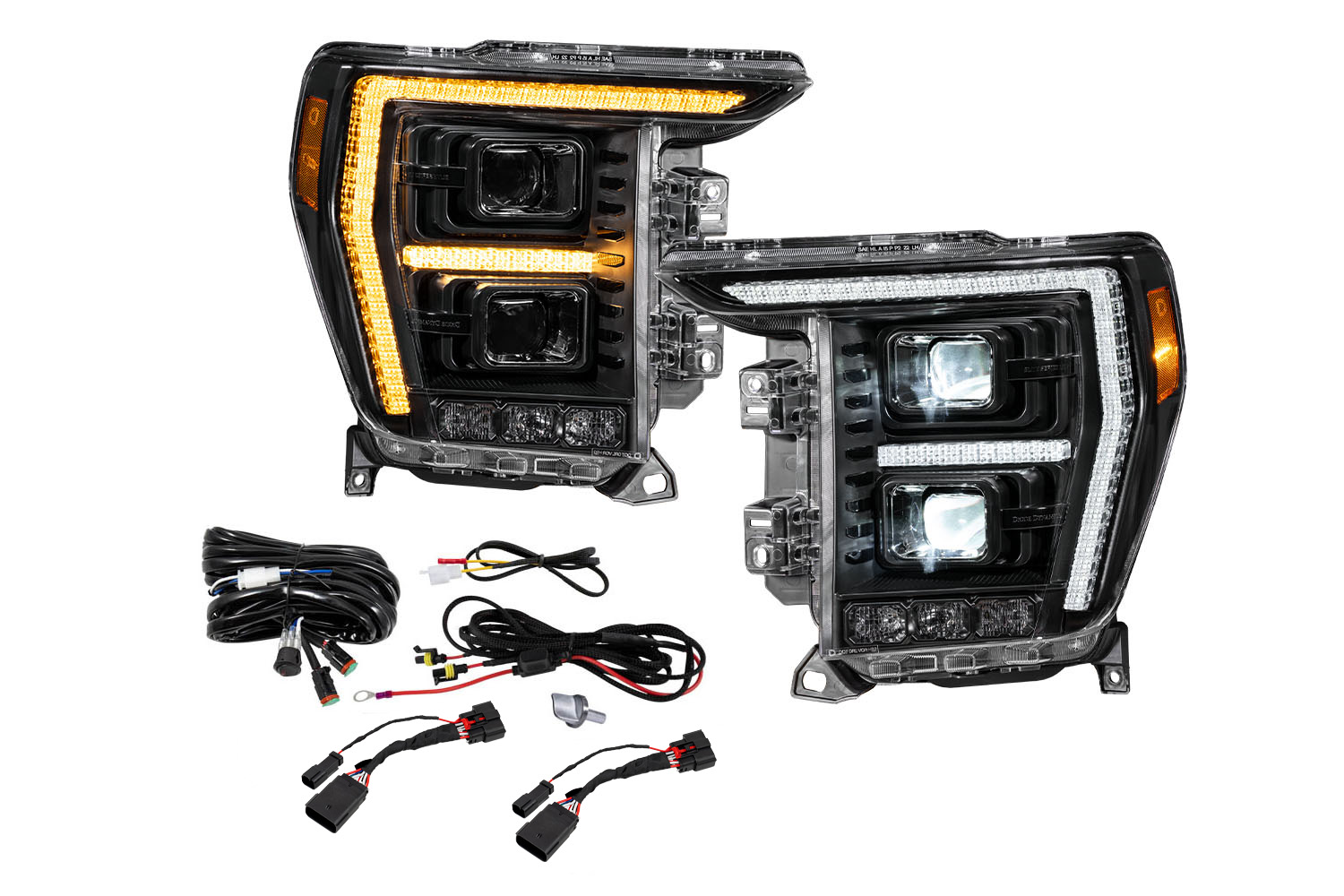

What's Included:

  • Two (2) Diode Dynamics Elite Max Headlights (Left & Right)
  • Plug-and-play wire harness
  • Braided off-road/show mode wiring harness with toggle switch
  • Beam adjustment tool

Backed by an industry-leading 8-year limited warranty — 3 years standard coverage plus 5 additional years of defect protection. Note: Fits 2021–2023 Ford F-150 models equipped with factory projector headlights only.

Products specifications

Fits

2021-2023 Ford F-150

Adaptive Headlight

No

Prop 65

Yes

Compliance Rating

SAE J575 Durability Test

Adaptive High Beam

No

Adjusting Screw Included

Yes

Amperage Rating

3.986

Ballast Included

No

Beam Type

High Beam Low Beam

Bezel Color

Black

Bulb Finish

Clear

Bulb Technology

LED

Bulbs Included

Yes

Color Temp

6000K

DOT Approved

Yes

Emergency Warning Lights Included

No

Grade Type

Regular

Headlight Type

Assembly

Housing Color

Black

Input Power (watts)

Low Beam: 30 High Beam: 43 Offroad: 61

Intensity (lux)

Low Beam: 89100 High Beam: 106200 Offroad: 102150

Intrusion Rating

IP67 Weatherproof

Lens Color

Clear

Low Beam Bulb Technology

LED

Measured Output (lumens)

Low Beam: 665 High Beam: 1210 Offroad: 1720

Mounting Hardware Included

No

Operating Temperature

-40C to 85C (-40F to 185F)

Operating Voltag

9-16V

Turn Signal Included

Yes

Universal Or Specific Fit

Specific

Voltage

9-16V
