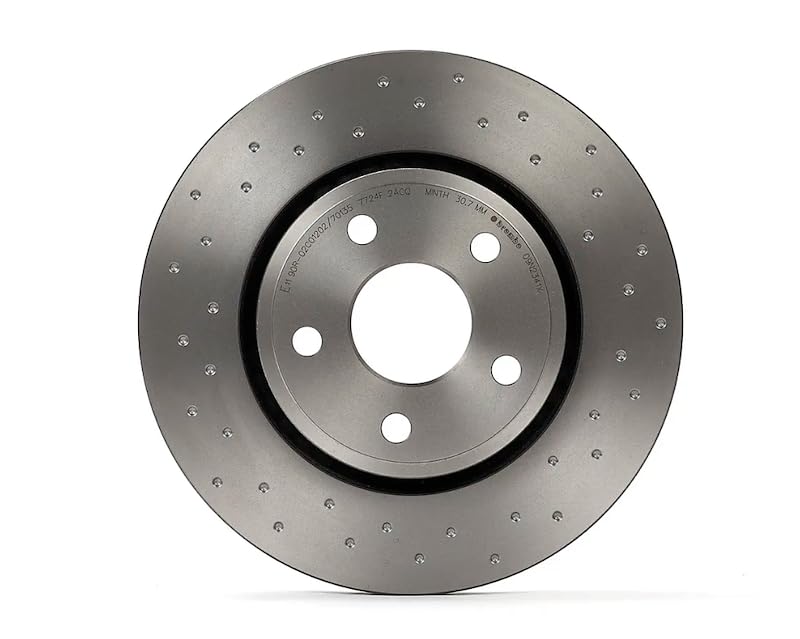

Brembo 09.N234.1X Xtra Drilled UV Coated Vented Front Disc Brake Rotor

(2011-2020 Jeep Grand Cherokee; 2011-2020 Dodge Durango)

Manufacturer

Part Number

09.N234.1X
Black Friday Price

$168.62

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Brembo 09.N234.1X is a precision-drilled, UV-coated, vented front disc brake rotor from Brembo's Xtra line — engineered to deliver enhanced stopping power, superior heat dissipation, and lasting corrosion resistance. Part of the same proven N234 rotor family used on Dodge Durango and Jeep Grand Cherokee applications from 2011–2020, the 1X designation identifies this as the performance drilled variant for drivers who want both aggressive aesthetics and improved thermal management.

Key Features:

  • Precision Drilling: Cross-drilled holes enhance heat dissipation and reduce brake fade during hard or repeated braking
  • Pillar Vented Technology (PVT): Brembo's patented pillar venting design improves airflow through the rotor for over 40% greater resistance to thermal cracking vs. conventional vane systems
  • UV Coating: Solvent-free, environmentally friendly UV coating protects the entire rotor — including braking surfaces — against corrosion right out of the box, with no pre-installation cleaning required
  • High Carbon Cast Iron Construction: Elevated carbon metallurgy minimizes noise and vibration while maximizing thermal stability and braking comfort
  • OE-Quality Fit: Developed to meet or exceed OEM specifications; replaces OE part numbers 52124762AB, 52124762AC, and 52124762AD
  • ECE R90 Certified: Meets rigorous European safety and performance standards
  • Fixing Screw Kit Included: All necessary mounting hardware is included for straightforward installation
  • Intelligent Part Marking: Part number and minimum thickness are clearly marked on the rotor for easy identification

Specifications:

  • Position: Front
  • Construction: Vented (Pillar Vented / Drilled)
  • Outside Diameter: 330 mm (12.99 in)
  • Nominal Thickness: 32 mm (1.26 in)
  • Discard Thickness: 30.5 mm (1.20 in)
  • Overall Height: 55 mm (2.17 in)
  • Center Hole Diameter: 72 mm (2.83 in)
  • Number of Bolt Holes: 5
  • Material: Cast Iron
  • ABS Sensor Ring: Not Included
  • OEM Cross-Reference: 52124762AB, 52124762AC, 52124762AD

For best results, replace brake pads and rotors together. This rotor pairs directly with Brembo's NAO/Ceramic or Low-Met brake pad formulations for a complete, optimized braking system.

Products specifications

Fits

2011-2020 Jeep Grand Cherokee; 2011-2020 Dodge Durango
