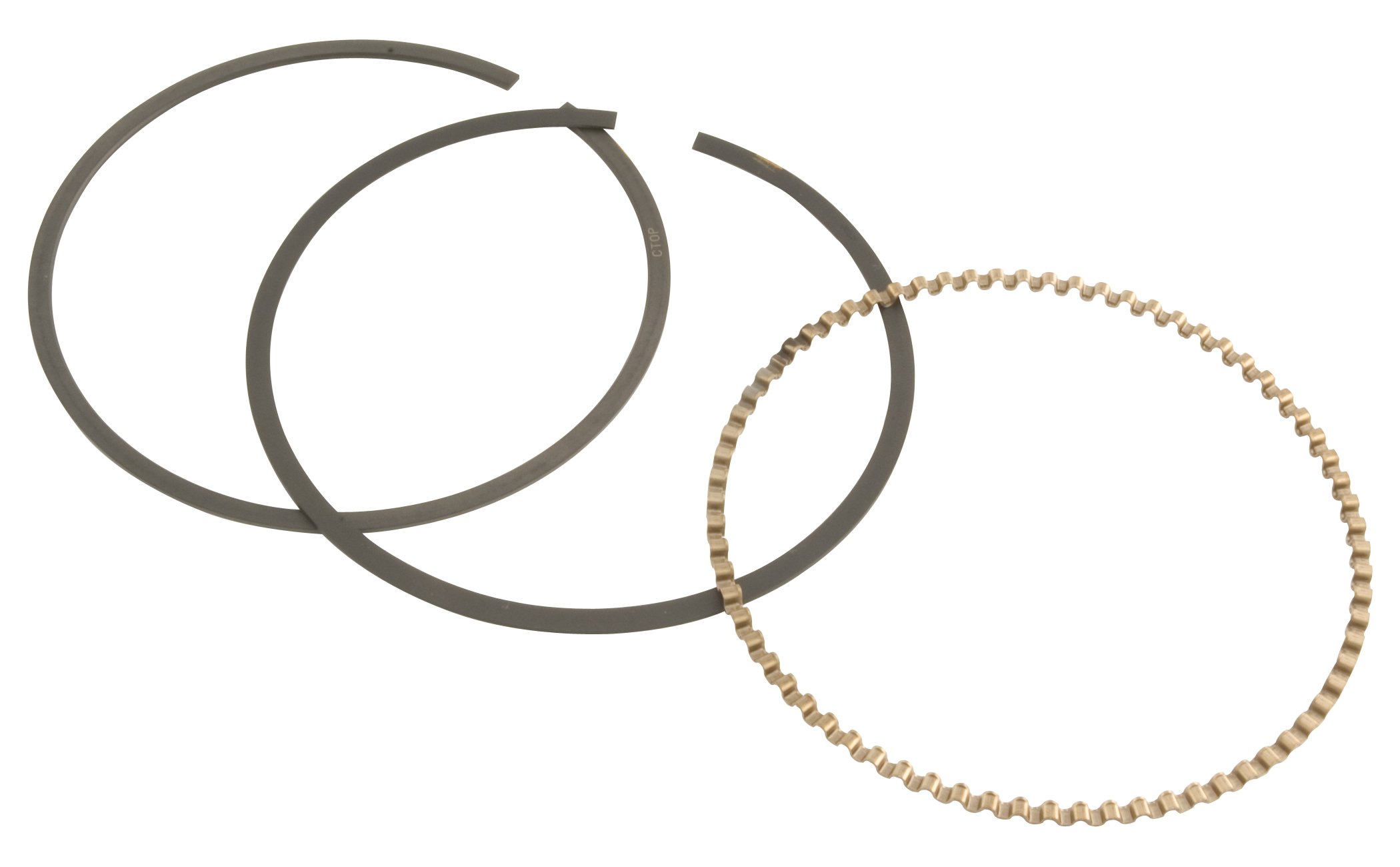

MAHLE 4035MS-15-1 Performance Piston Ring Set 4.030" Bore 1.5mm/1.5mm/3.0mm File Fit Single Cylinder

Manufacturer

Picture for manufacturer MAHLE

Part Number

4035MS-15-1
7 reviews
Sale Price

$22.09

In Stock (5)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 4035MS-15-1 is a single-cylinder performance piston ring set designed for a 4.030" bore with a +.005" file fit final bore of 4.035". Featuring a 1.5mm / 1.5mm / 3.0mm ring pack configuration, this set delivers the precision engineering and friction-reducing technology MAHLE is known for in high-performance engine building.

Key Features:

  • Top Ring: 1.5mm ductile iron construction with a plasma-moly barrel face for superior scuff resistance and durability
  • Second Ring: 1.5mm cast iron, reverse-twist design for effective oil control and sealing
  • Oil Ring: 3.0mm three-piece stainless steel construction with standard tension
  • File Fit design allows precise end-gap customization for your specific application
  • Ultra-flat ring flanks maximize ring-to-piston groove sealing contact
  • Engineered using piston ring simulation and computer development tools to minimize friction and maximize power
  • Sold as a single-cylinder set (1 cylinder)

MAHLE's plasma-moly top ring facing delivers outstanding wear resistance and break-in characteristics, while the reverse-twist cast iron second ring provides consistent oil control throughout the engine's service life. This ring set is ideal for custom performance engine builds requiring individual cylinder ring purchases.

Specifications:

  • Bore Size: 4.030" (102.362mm)
  • File Fit Bore: 4.035" (+.005")
  • Ring Pack: 1.5mm / 1.5mm / 3.0mm
  • Top Ring Material: Ductile iron / Plasma-moly faced
  • Second Ring Material: Cast iron / Cast iron faced
  • Oil Ring Material: Stainless steel
  • Oil Ring Tension: Standard
  • Gapless: No
  • Gas Ported: No
  • Quantity: 1 single-cylinder set

Products specifications

Bore (in)

4.030 in.

Bore (mm)

102.362mm

File Fit

Yes

Gapless

No

Notes

Single piston set.

Oil Ring Included

Yes

Oil Ring Material

Stainless steel

Oil Ring Tension

Standard

Oil Ring Thickness

3.0mm

Quantity

Sold as a set.

Second Ring Facing Material

Cast iron

Second Ring Included

Yes

Second Ring Material

Cast iron

Second Ring Thickness

1.5mm

Top Ring Facing Material

Plasma-moly

Top Ring Included

Yes

Top Ring Material

Ductile iron

Top Ring Thickness

1.5mm

Piston Ring Thickness

1.5mm, 1.5mm, 3.0mm
