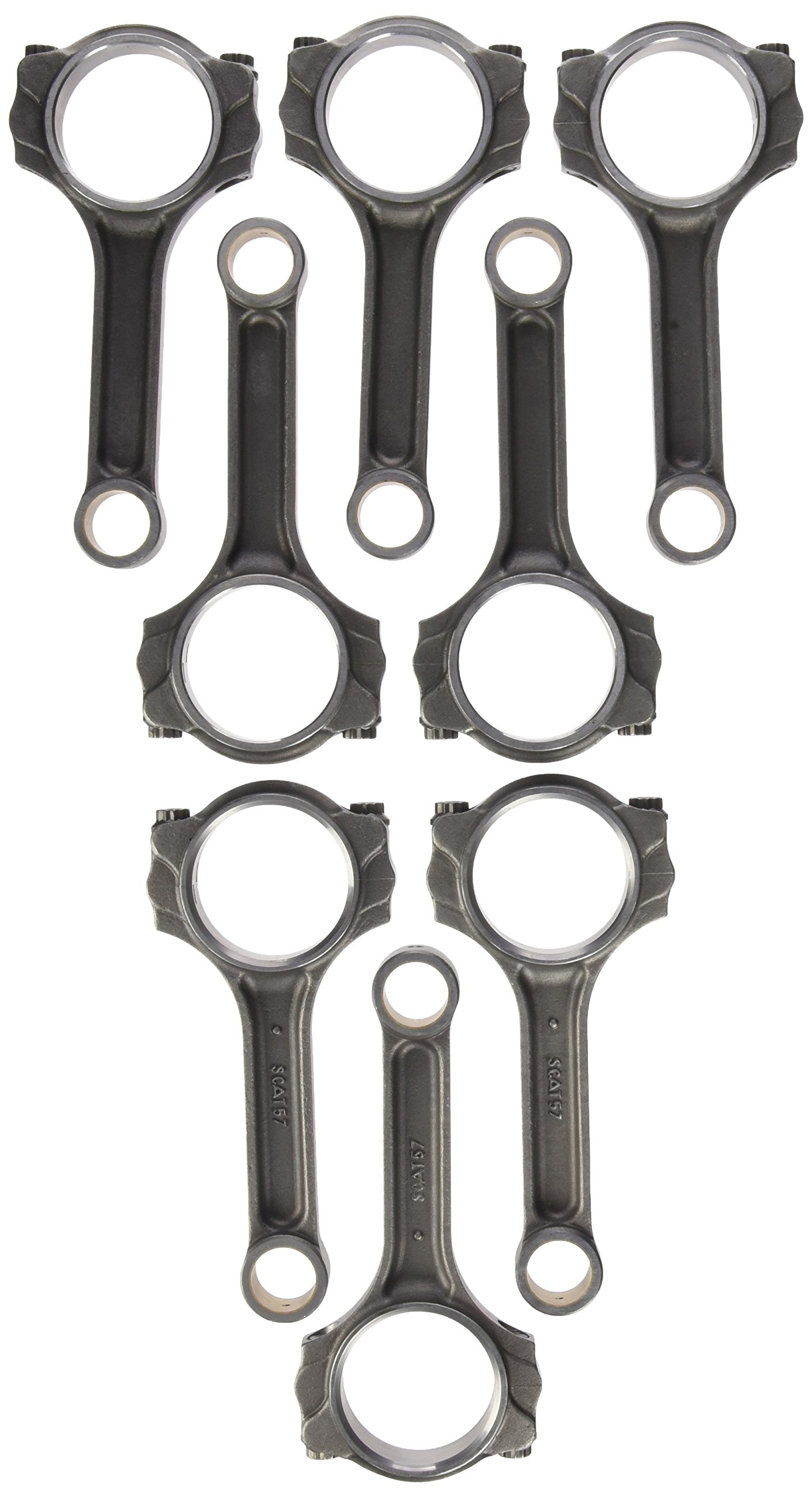

Scat Engine Components 25700716A Pro Series 4340 Forged I-Beam Connecting Rods 5.700in Bushed 7/16in ARP Cap Screw

Manufacturer

Part Number

25700716A
Black Friday Price

$681.54

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Scat Engine Components 25700716A Pro Series I-Beam connecting rods are purpose-built for high-performance Chevy Small Block applications. Forged from premium 4340 chromoly steel, these rods deliver exceptional strength and reliability for street, strip, and competition engine builds.

Key Features:

  • 4340 Forged Chromoly Steel Construction — delivers maximum strength and durability under high-load, high-RPM conditions
  • I-Beam Profile with Stroker Clearancing — profiled with clearance for long-stroke applications, reducing the need for block grinding
  • One-Rib Cap Design — provides added strength and superior bearing support
  • Polished and Shot-Peened Beams — eliminates stress risers for improved fatigue resistance
  • Special Hollow Doweled Cap — ensures precise cap-to-rod beam alignment during assembly
  • 7/16 in. ARP Cap Screw Bolts — oversized fasteners greatly increase clamping strength and horsepower capability
  • Bushed Small End — accepts floating wrist pin for greater flexibility in piston selection
  • Precision Diamond Honed Bores — machined to exacting tolerances for consistent fitment
  • Balanced in Sets to ±2 Grams — ensures smooth, vibration-free engine operation

Specifications:

  • Rod Length (Center-to-Center): 5.700 in.
  • Crank Pin (Big End) Journal: 2.100 in.
  • Wrist Pin (Small End) Diameter: 0.927 in.
  • Big End Width: 0.940 in.
  • Big End Bore Diameter: 2.225 in.
  • Bolt Size: 7/16 in. ARP Cap Screw
  • Pin Style: Bushed (floating pin)
  • Material: 4340 Forged Chromoly Steel
  • Manufacturer Part Number (MPN): 2-ICR5700-7/16A

All Scat connecting rods are finish-machined at their Redondo Beach, California facility using Sunnen honing machines to meet the tight tolerances demanded by performance engine builders. These rods incorporate design features from both I-Beam and H-Beam technologies, making the 25700716A one of the strongest I-beam rods available for the Chevy Small Block platform.
