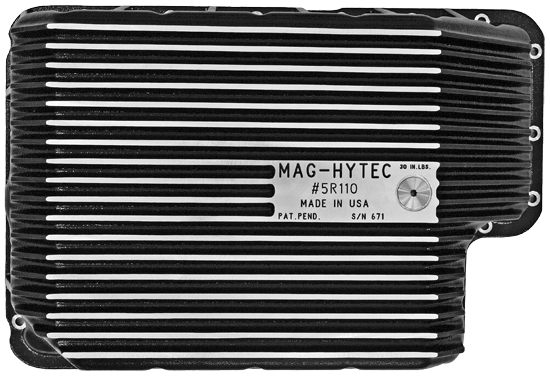

Mag-Hytec F5R110 Deep Transmission Pan for Ford 5R110 TorqShift

The Mag-Hytec F5R110 Transmission Pan is a high-capacity aftermarket replacement designed for the Ford 5R110 TorqShift transmission found in 2003-2007 Ford F-250, F-350, F-450, and F-550 Super Duty trucks with the 6.0L Powerstroke diesel engine. This deep sump pan significantly increases fluid capacity and cooling performance to protect your transmission under heavy loads and demanding conditions.

Key Features:

• Cast aluminum construction with finned design for superior heat dissipation
• Holds 8.3 to 9 quarts total capacity - approximately 4 quarts more than stock pan
• Overall height of 4.25 inches provides deep sump capacity
• Magnetic drain plug for easy, mess-free fluid changes and metal debris collection
• Pre-drilled 1/8" NPT port for aftermarket temperature gauge sender installation
• Built-in O-ring seal design eliminates need for gaskets or sealants
• Powder-coated finish for corrosion resistance
• Includes zinc-plated allen head bolts, stainless steel washers, and three allen wrenches
• Added rigidity helps strengthen transmission case

Important Notes:

• Designed to work with 4-wheel drive transmission filter only (filter not included)
• Requires Ford factory transmission pan filter for proper operation
• Fits 2008 model year vehicles built before 05/21/2007 only
• Features 3-inch wide rectangular surface on center of pan (distinguishes from F5R110W model which is 4.5 inches wide)
• Kit includes two different bolt lengths for proper installation clearance

This premium Mag-Hytec transmission pan is precision-engineered from aircraft-grade aluminum to deliver maximum cooling efficiency and extended transmission life. The deep sump design and finned construction work together to reduce transmission temperatures by 20-50°F, making it ideal for trucks used for towing, hauling, or performance applications.
