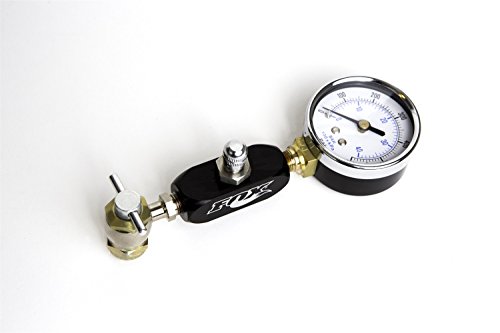

Fox Racing Shocks 802-02-002-A Nitrogen Filler Gauge Schrader Style 0-600 PSI

The Fox Racing Shocks 802-02-002-A is a professional-grade nitrogen filler gauge designed for precise pressure measurement and adjustment of gas shocks with Schrader-style fill valves. This is the same tool Fox technicians use to properly service and tune racing shocks.

Key Features:

• 0-600 PSI analog pressure gauge with easy-to-read dial display
• Schrader-style chuck threads directly onto valve stem for secure, leak-free connection
• Integrated mini T-handle valve opens and closes center pin while attached to valve stem
• No-loss design allows accurate pressure reading and adjustment without pressure drop
• Built-in pressure release valve for safe pressure adjustment
• Professional-grade construction for durability and long service life

How It Works:

The threaded chuck screws directly onto the shock's Schrader valve, creating a sealed connection. The T-handle valve controls the center pin, allowing you to read current pressure and add nitrogen as needed to achieve desired pressure settings. This ensures the pressure you set is the pressure you get, with no losses during the filling or measurement process.

Applications:

Compatible with Fox Racing Shocks and most other racing shocks that use a Schrader-style fill valve, including many King, Bilstein, Sway-A-Way, and aftermarket performance shocks. Essential tool for suspension tuning on off-road trucks, UTVs, side-by-sides, motorcycles, and other racing applications.

Requires a separate nitrogen supply system with regulator (sold separately) for filling operations.
