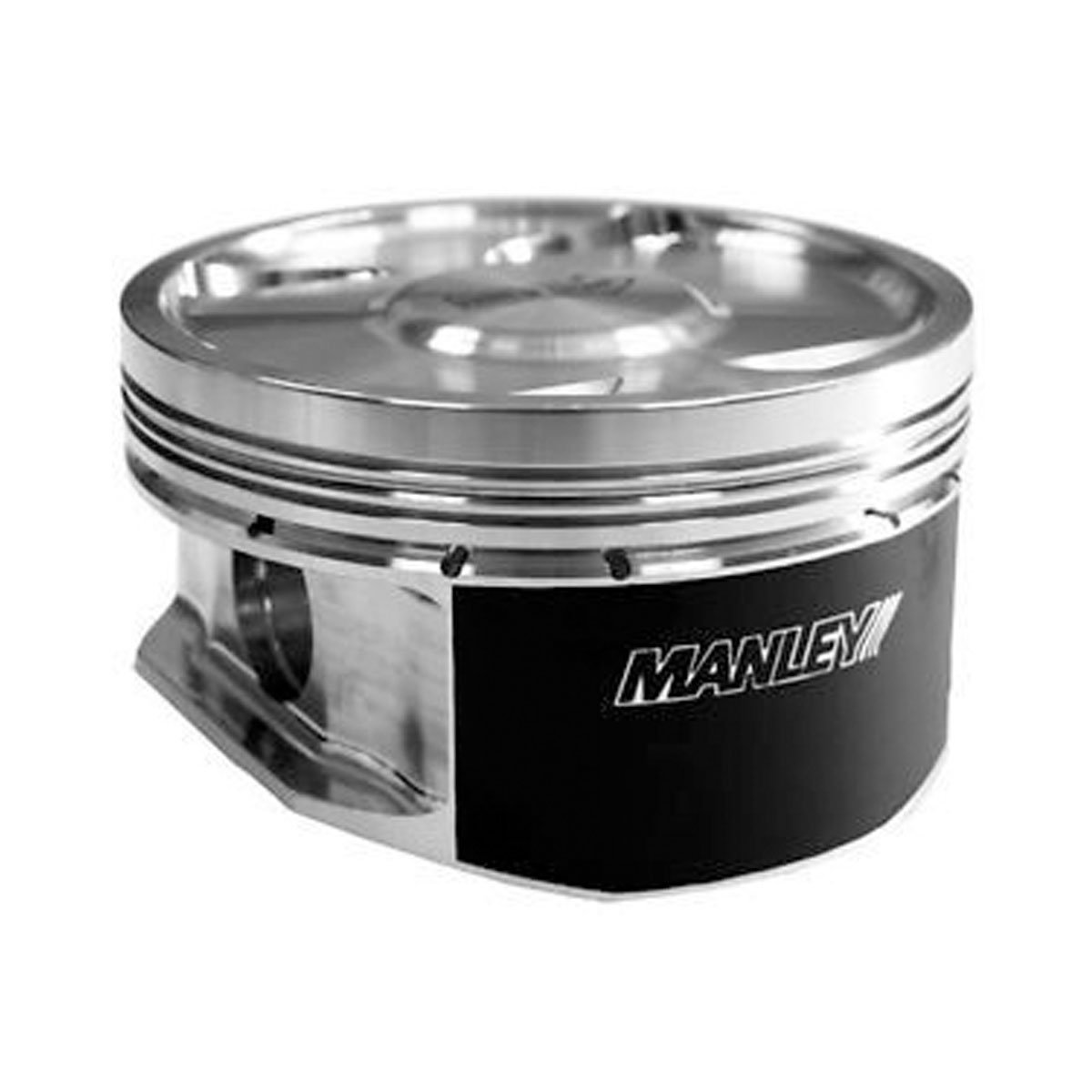

Manley 594400C-8 High-Performance Forged Piston Bore Alloy - 3.552 2618

(1997-2008 Ford F-150; 1996-2004, 2007-2008 Ford Mustang; 1999-2008 Ford F-250 Super Duty; 1999-2008 Ford F-350 Super Duty; 1997-1999 Ford F-250)

Manufacturer

Part Number

594400C-8
Black Friday Price

$867.04

2 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 594400C-8 is a precision-engineered forged piston designed for high-performance engine builds requiring durability and power. Machined from high-strength 2618 alloy material, this piston features an 18cc spherical dish design with a 3.552" bore, making it ideal for applications demanding maximum thermal resistance and fatigue strength under extreme conditions.

Specifications:

  • Bore: 3.552 inches
  • Compression Distance: 1.220 inches
  • Rod Length: 6.657 inches
  • Stroke: 4.165 inches
  • Piston Type: 18cc Spherical Dish
  • Weight: 351 grams (439 grams with pin)
  • Compression Ratios: 8.91:1 @ 42cc, 8.15:1 @ 51cc, 8.08:1 @ 52cc
  • Ring Package: 1.5mm, 1.5mm, 3mm Total Seal

Key Features:

  • 2618 Forged Alloy Construction: Provides exceptional high-temperature strength and fatigue resistance for extreme performance applications
  • Contour Forging Process: Optimizes strength-to-weight ratio without grain-interrupting internal milling
  • Single-Fixturing Manufacturing: All final machining performed in one setup ensures perfect ring groove squareness to cylinder wall for maximum horsepower and ring seal
  • Moly-Coated Skirts: Reduces friction and wear for extended service life
  • Offset Wrist Pin Design: Minimizes piston slap for quieter operation and improved performance
  • Precision Ring Groove Machining: Multi-step process guarantees optimal groove size, geometry, flatness, and finish
  • Pressure Balance Groove: Included as standard to equalize pressure behind the rings
  • Complete Hardware Included: Comes with round-wire locks and tool steel wrist pins at no additional charge

Each Manley piston undergoes rigorous quality control including Federal Form-Scan gauging to validate proper skirt indexing and polarity. The lightweight yet robust design delivers long service life while maintaining the strength needed for high-performance applications. Compression ratios are calculated at 0.00 deck clearance, 9.240" deck height, and 0.042" compressed head gasket thickness.

Products specifications

Fits

1997-2008 Ford F-150; 1996-2004, 2007-2008 Ford Mustang; 1999-2008 Ford F-250 Super Duty; 1999-2008 Ford F-350 Super Duty; 1997-1999 Ford F-250

Bore (in)

3.552 in.

Bore (mm)

90.221mm

Calculator

Compression Calculator

Compression Distance (in)

1.220 in.

Notes

Coated piston skirt.

Pin Diameter (in)

0.866 in.

Piston Head Volume (cc)

+23.00cc

Piston Material

Forged aluminum

Piston Ring Thickness

1.50mm x 1.50mm x 3.00mm

Piston Style

Dish, with no valve reliefs

Quantity

Sold as a set of 8.

Tool

Stroker Combinations

Wrist Pin Style

Press-fit or floating

Piston Quantity

8

Weight

351

Make

Ford

Bore Diameter

3.552

Compression Height

1.220

Engine Type

ICE

Product Type

Engine Piston Kit

Piston Volume

-23.00

Piston Series

Platinum Series

Title

Manley Piston Set, PIST-3.552/1.220 CD/D

Piston Sub-Series

Standard
