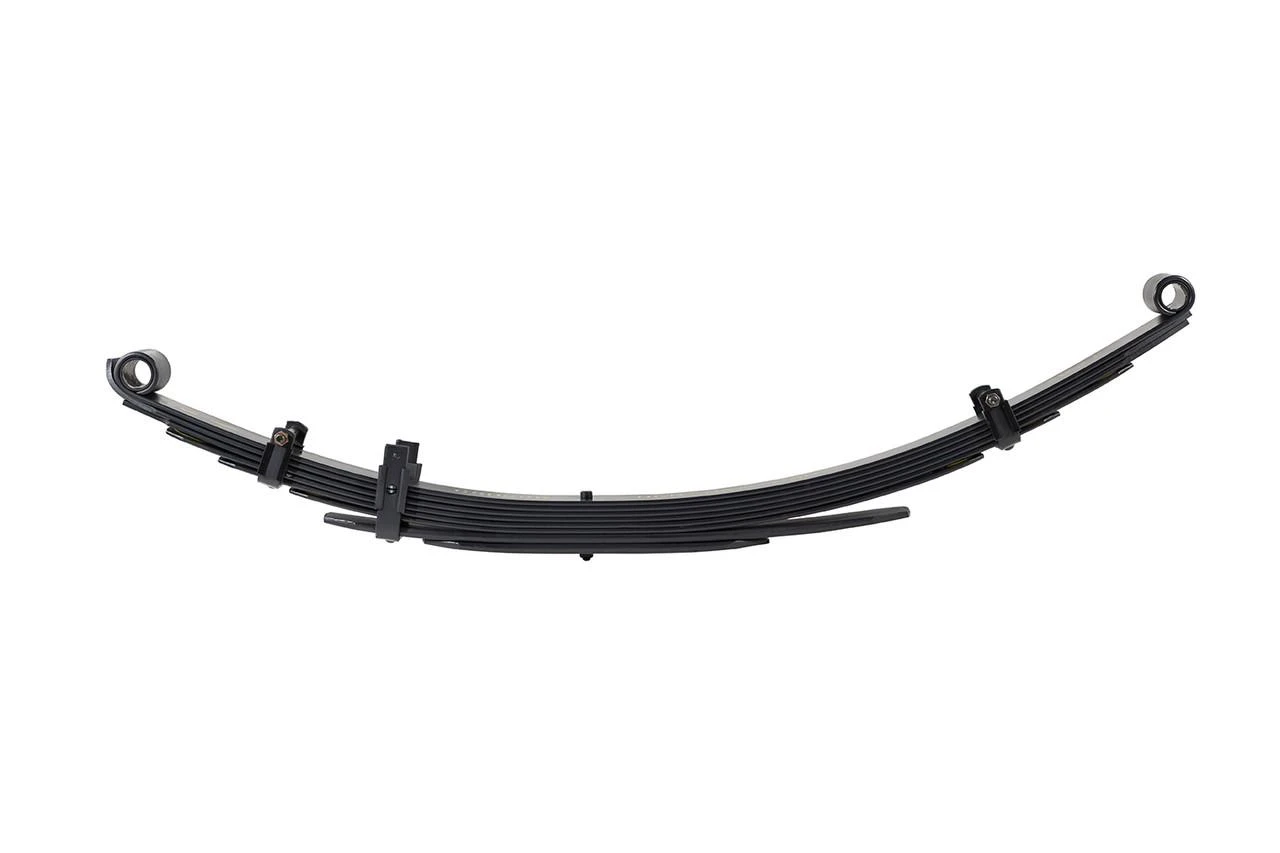

ARB CS023R Old Man Emu Heavy Duty Rear Leaf Spring

The ARB CS023R (OME222) is a heavy-duty rear leaf spring designed as part of Old Man Emu's integrated 4X4 suspension systems. Engineered to deliver optimum ride performance across all terrains and operating conditions, this Dakar leaf spring provides approximately 1.5 inches of lift and enhanced load-carrying capability for demanding off-road applications.

Advanced Engineering Features:

• Draw-Tapered and Diamond-Cut Leaves: Progressively distributes loads over a larger surface area, reducing stress concentrations at leaf ends for improved ride quality and significantly extended spring life
• Two-Stage Leaf Pack: Primary stage provides comfortable unladen ride while secondary stage engages under heavy loads for additional support
• Shot Peening Treatment: All leaves are shot peened on the tension side to reduce spring stress, potentially doubling service life
• Bolted Leaf Clamps with Nylon Liners: Allows installation of anti-squeak liners for quieter operation
• Re-Greasable Anti-Friction Pads: Nylon interleaf pads reduce friction at critical load points where stress is greatest
• Flat Axle Seat Design: Ensures positive, safe axle mounting while reducing spring stress and increasing longevity
• Military Wrap Construction: Provides added safety and durability in demanding conditions

When paired with Old Man Emu 4X4 shock absorbers, these Dakar leaf springs deliver vastly improved ride quality, handling precision, and load-carrying capability. Backed by ARB's comprehensive warranty coverage, this spring is engineered and tested in the demanding Australian Outback to provide reliable performance for recreational and commercial applications alike.
