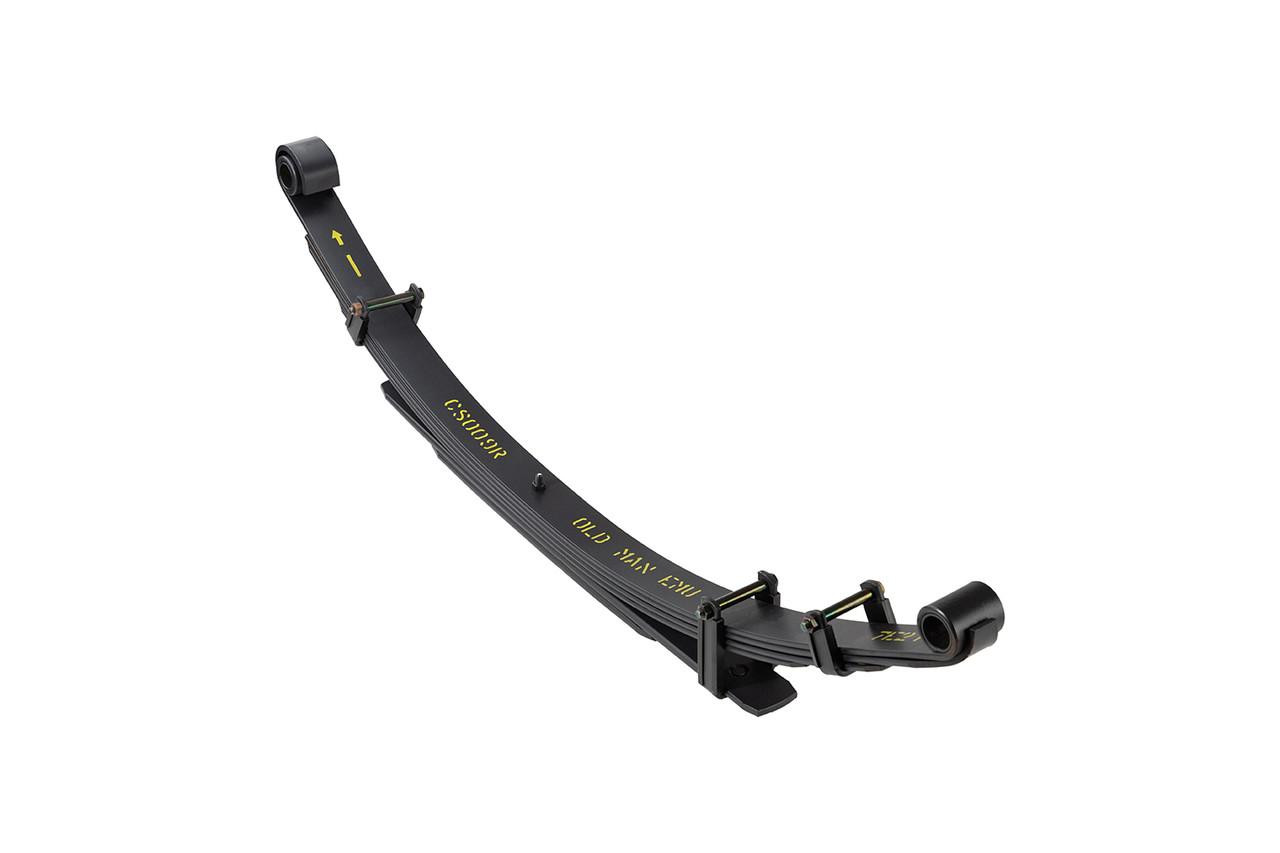

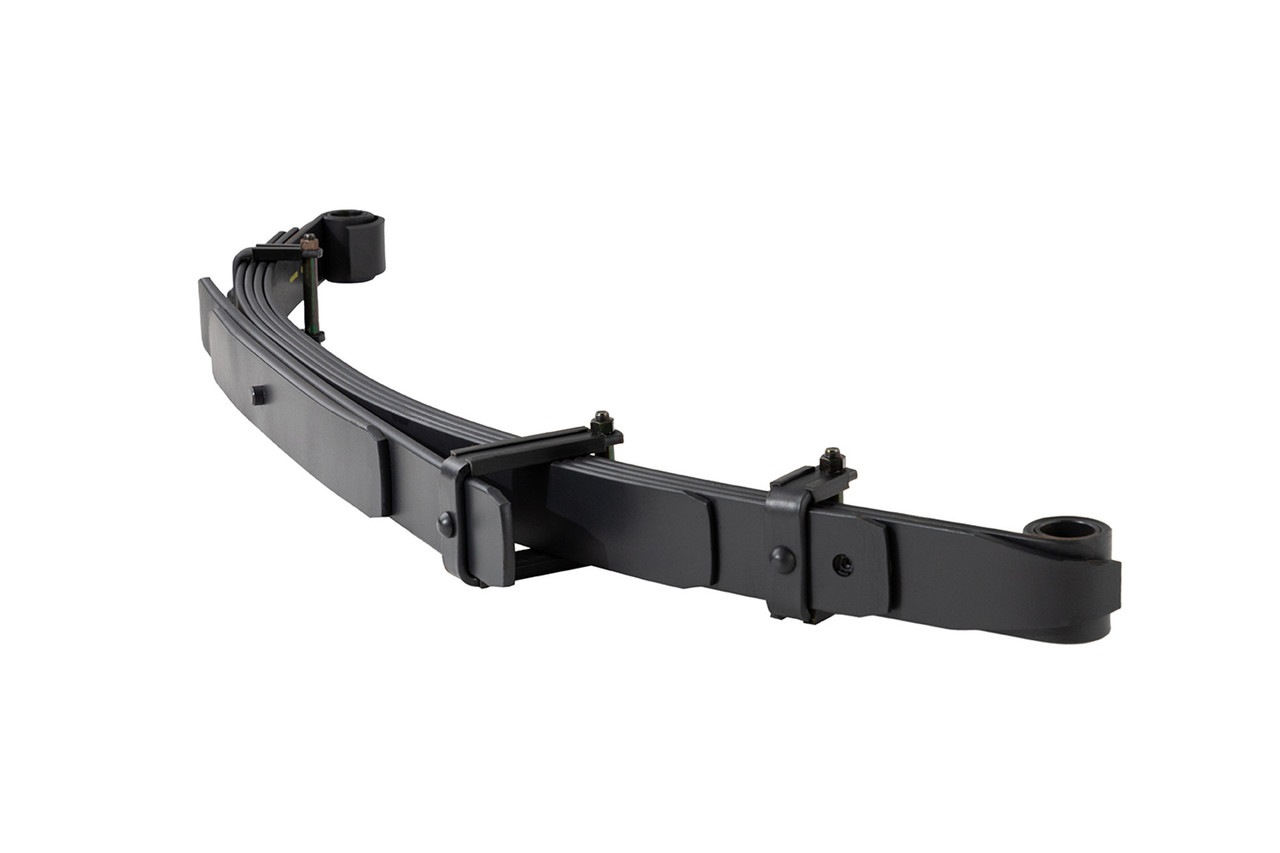

ARB CS009R Old Man Emu Dakar Rear Leaf Spring Medium Load

The ARB CS009R is a premium rear leaf spring from the Old Man Emu Dakar line, engineered as part of ARB's integrated 4x4 suspension systems. This medium load spring is designed to deliver optimum ride performance across all operating conditions, from daily driving to extreme off-road terrain.

Construction Features:

• Draw-tapered and diamond cut leaves for superior ride quality and protection against leaf breakage
• 4+2 leaf configuration (four main leaves plus two overload leaves)
• Military wrap design provides added safety and durability
• Fully scragged during manufacturing to reduce the risk of sagging over time
• Load tested to ensure the spring meets required specifications
• High-grade steel construction with black finish

Performance Enhancements:

• Re-greasable nylon interleaf anti-friction pads reduce friction at leaf tips for extended spring life
• Flat axle seat area minimizes friction and wear
• Bolted leaf clamps allow installation of anti-squeak nylon liners
• 30mm front and rear eye diameter
• Spring rate: 217/388 lbf/in
• Primary free camber: 230mm

When paired with Old Man Emu 4x4 shock absorbers, these Dakar leaf springs deliver vastly improved ride quality, handling, and load carrying capability. The CS009R provides approximately 2 inches of lift and is ideal for setting up your vehicle for recreational or commercial purposes. Sold as a single spring; bushings and hardware sold separately.
