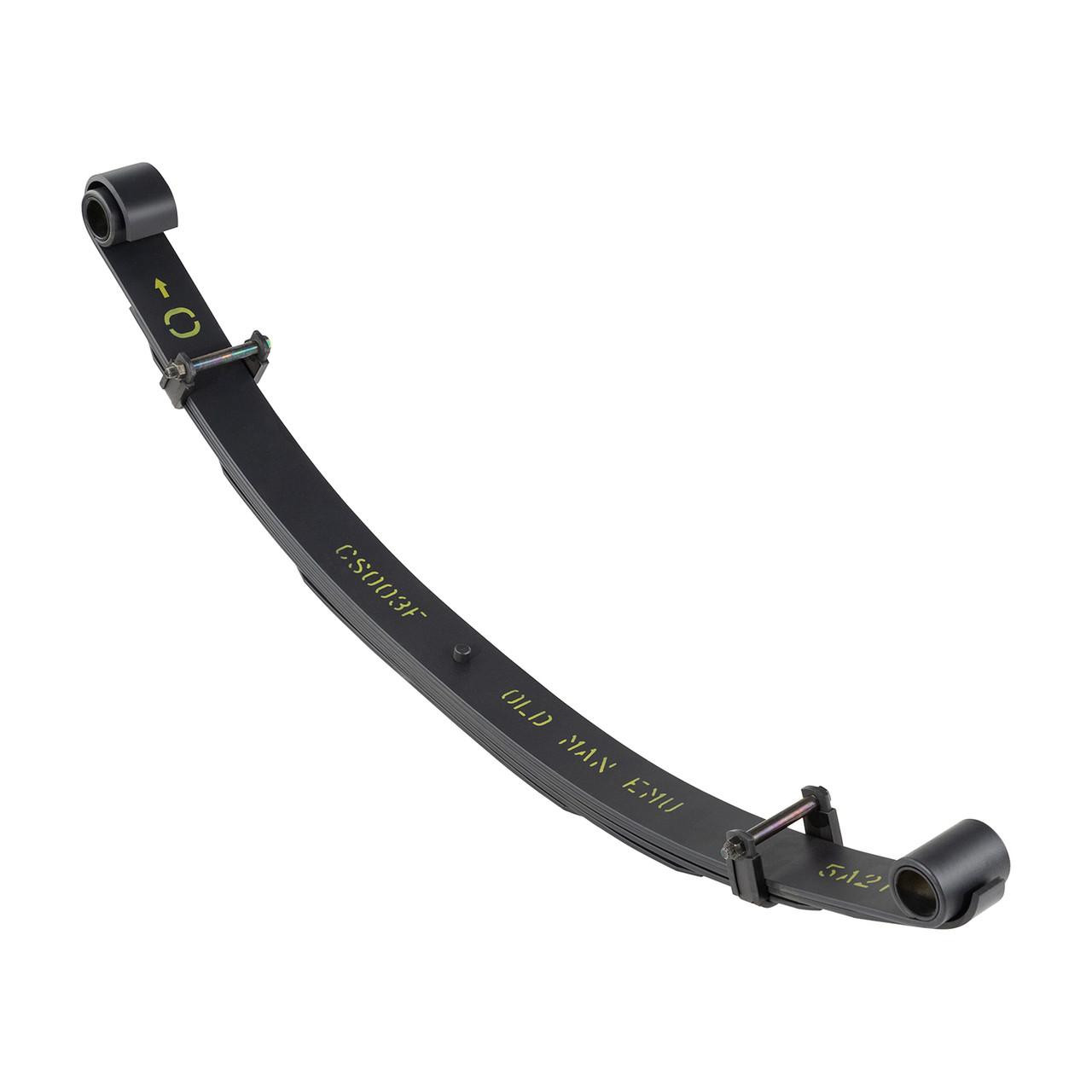

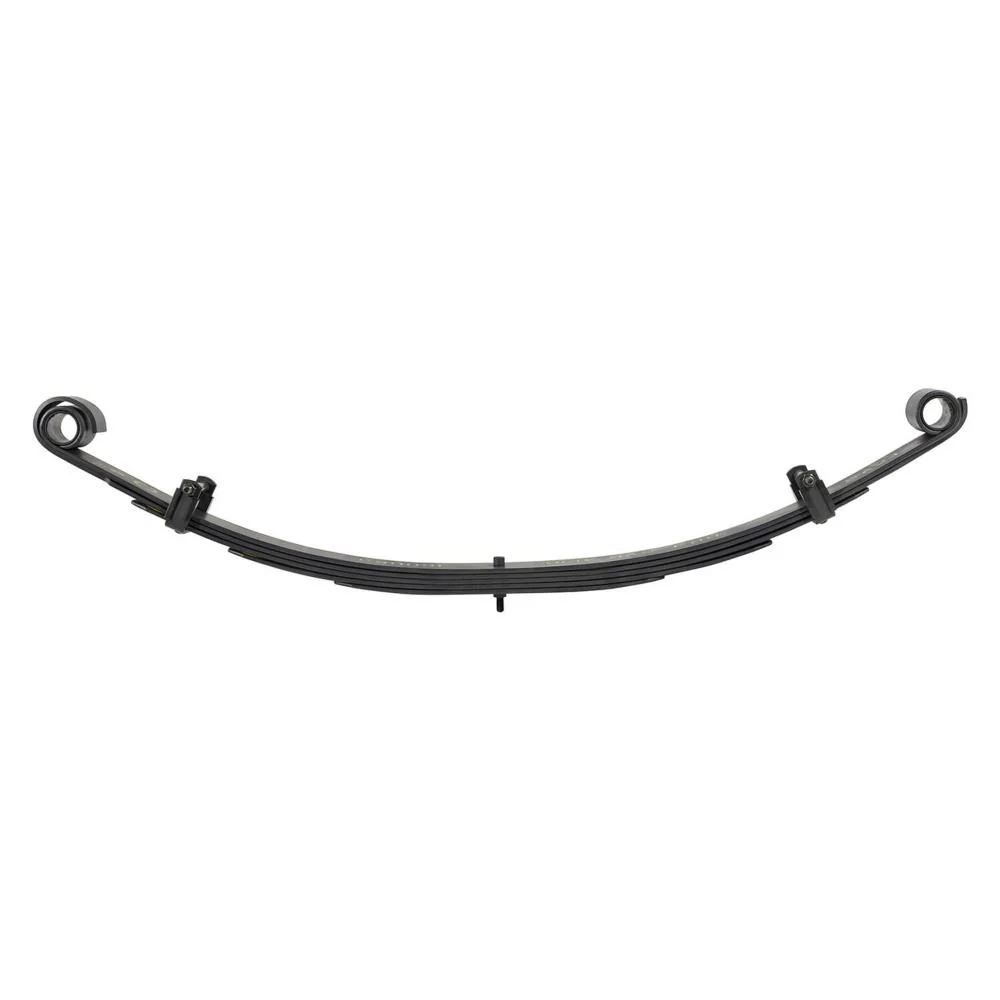

ARB CS003F Old Man Emu Dakar 2 Inch Front Lift Leaf Spring

The ARB CS003F is a premium Old Man Emu Dakar front leaf spring engineered to deliver superior ride performance across all terrain conditions. This front lift spring features a 220 lbs/in spring rate and provides approximately 2.0 inches of lift, making it ideal for 4x4 enthusiasts seeking improved ground clearance and off-road capability.

Technical Specifications:

• 5-leaf spring pack with 35mm eye diameter
• Spring rate: 220 lbs/in
• Load capacity: 0-110 lbs constant extra weight
• Primary free camber: 200mm
• Sold individually (order two for complete axle setup)

Advanced Engineering Features:

• Draw-tapered and diamond cut leaves ensure progressive load distribution over a larger surface area, reducing high stresses at leaf ends and significantly increasing spring life
• Fully scragged and load tested to ensure the spring takes a permanent set, reducing the risk of sagging and meeting required specifications
• Graphite coating reduces friction between spring leaves and friction pads
• Military wrap design provides added safety
• Re-greasable nylon interleaf anti-friction pads reduce friction at the leaf tips where load is greatest
• Flat axle seat area allows positive, safe axle mount while reducing spring stress
• Shot peening on tension side of all leaves reduces spring stress
• Bolted leaf clamps allow installation of anti-squeak nylon liners

Part of ARB's integrated 4X4 suspension systems, this Emu Dakar leaf spring is engineered to provide optimum ride performance under all operating conditions. When matched to Old Man Emu 4X4 shock absorbers, it delivers vastly improved ride, handling and load carrying capability. Designed and manufactured in Australia, this spring represents decades of testing and development in demanding off-road conditions.
