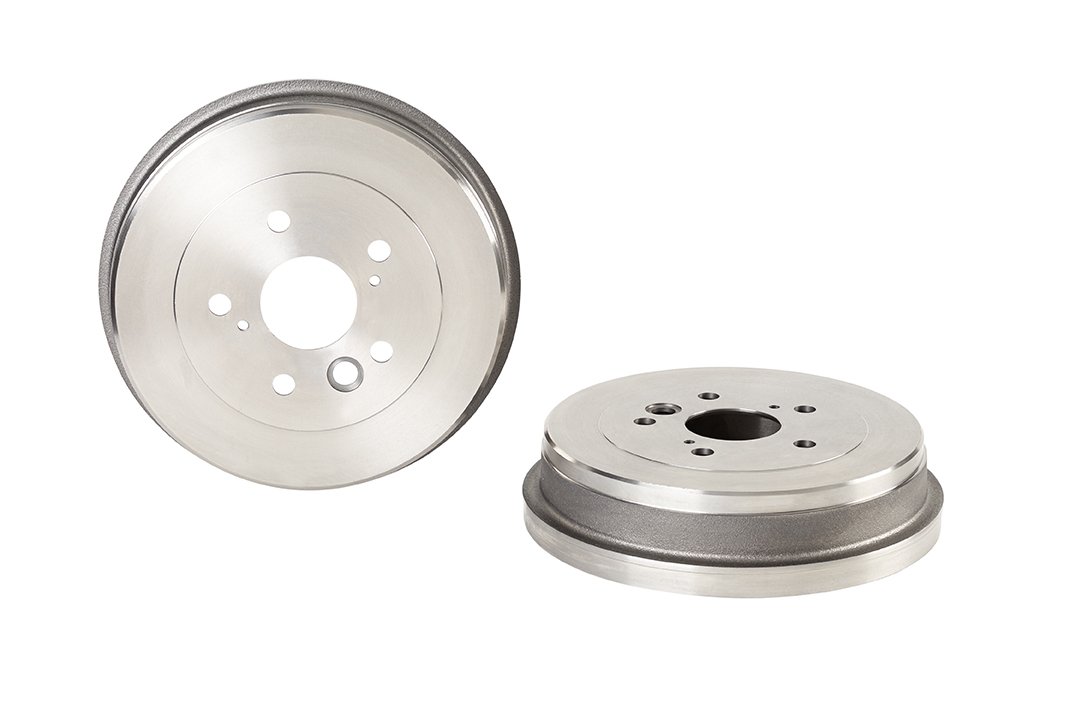

Brembo 14.A703.10 Rear Brake Drum 228mm

The Brembo 14.A703.10 is a premium OE-equivalent rear brake drum engineered with Brembo's advanced lamellar graphite cast iron construction for superior durability and reliable stopping power. This replacement drum meets or exceeds factory specifications, delivering the same quality and performance as original equipment.

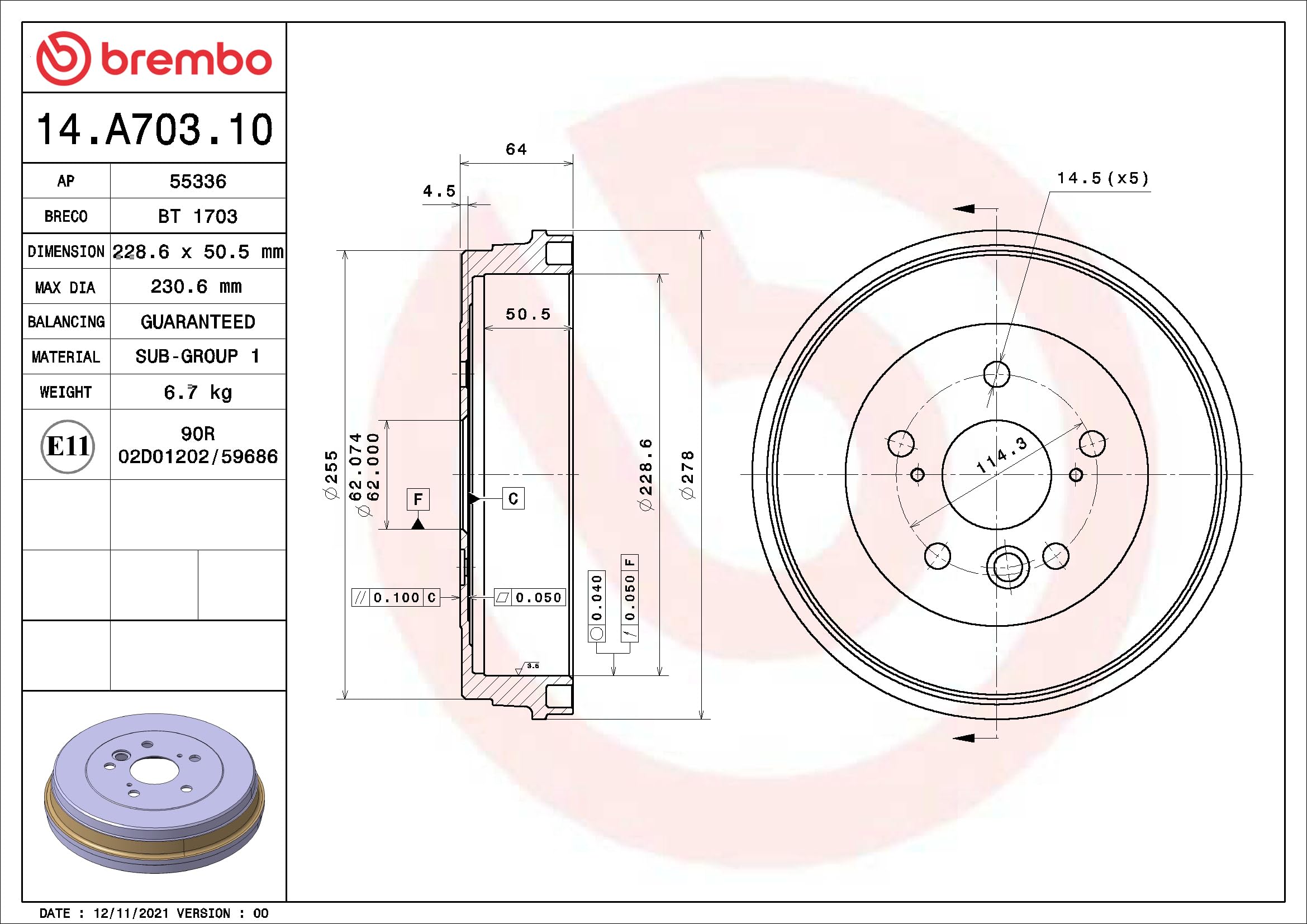

Key Specifications:

• Drum Diameter: 228mm (9.0 inches)
• Inner Brake Drum Width: 50.5mm
• Total Drum Height: 64mm
• Maximum Reboring Diameter: 230.6mm
• Bolt Pattern: 5-bolt configuration
• Centering Diameter: 62mm
• Position: Rear axle

Quality Engineering:

• Manufactured from high-grade lamellar graphite cast iron for optimal heat dissipation
• Precision-machined braking surface ensures consistent shoe contact
• OE-equivalent design guarantees proper fitment and function
• Built to Brembo's stringent quality standards for safety and longevity

Brembo's advanced manufacturing process combines multiple materials and design solutions to reduce overall weight while maintaining structural integrity. This drum provides exceptional wear resistance and enhanced driving comfort, making it an ideal replacement for worn or damaged factory drums.
