HKS 80310-AN001T Hipermax R Coilover Suspension Full Kit

Manufacturer

Part Number

80310-AN001T
Black Friday Price

$3,610.00

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

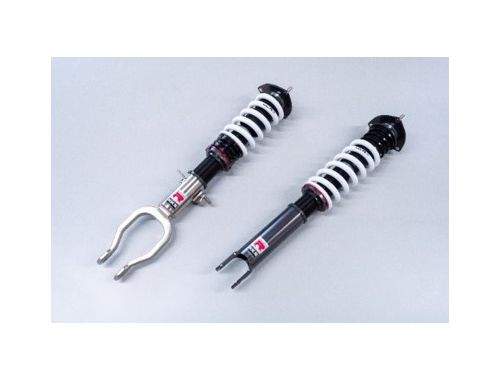

The HKS Hipermax R Coilover Full Kit (80310-AN001T) is a premium, track-focused suspension system engineered for the Nissan GT-R (R35). The Hipermax R series has evolved handling, traction, and ease of fit by concentrating the technological capabilities cultivated over nine years since the launch of the MAX IV SP. Designed for those who want to focus on sports driving performance on the race track without sacrificing driving comfort in everyday use.

Key Technologies:

  • SRF – Super Response Fluid: An exclusively developed high-viscosity oil resistant to heat sagging that initiates damping from very low speed ranges, resulting in reliable handling, great damping, and high stability.
  • LVS – Low Vibration Spring: A specially developed high-strength wire spring ideal for sports driving. Manufactured with 210k grade high-strength wire rods, designed to shorten wire length, reduce weight, and improve steering response.
  • Dual PVS – Dual Preload Valve System: Features the Dual Preload Valve System originally designed for the Hipermax S, with valve shims carefully selected for each vehicle model to provide direct handling and reliable stability.
  • WR Needle – Wide Range Damping Adjustment: The improved needle shape expands the oil relief channel, making each step of the 30-step adjustment more prominent, with softer adjustment options for greater street driving versatility.
  • Mono-Tube Design: The single-tube mono-tube design separates gas and oil chambers, and the use of a large-diameter piston provides high-quality and stable damping force characteristics.
  • Upper Spring Retainer: An exclusive Hipermax R design that allows the damping axis and spring load lines to align coaxially, reducing friction for smoother damping.
  • Advanced Bump Rubber: The advanced bump rubber aims for an early bump touch, gradually damping the load and suppressing abrupt changes in movement.

Specifications:

  • Spring Rate: Front 196 N/mm (20 kgf/mm) / Rear 157 N/mm (16 kgf/mm)
  • Free Height: Front 170 mm / Rear 200 mm
  • Damping Force (Rebound/Compression): Front 2266/515 / Rear 711/721 (at piston speed 0.1 m/sec)
  • Damping Force Adjustment: 30 steps (front and rear)
  • Ride Height Adjustment – Front: -2 mm to -58 mm / Rear: 0 mm to -60 mm
  • Upper Mount: Pillow Ball (front and rear)
  • Default Dial Position: 15 clicks (front and rear)
  • 2-year or 40,000 km manufacturer warranty

The new SRF (Super Response Fluid) and LVS (Low Vibration Spring) have been adopted to achieve unprecedented levels of both driving and ride comfort. New internal parts enable a wide range of settings with a large dial range, resulting in higher durability. The HKS Hipermax R is the definitive suspension upgrade for GT-R owners who demand uncompromising performance on both street and circuit.
