Skyjacker C20681TDK-M 6 in. Suspension Lift Kit with Torsion Bar Drop Brackets and M95 Monotube Shocks

(2020-2025 Chevrolet Silverado 2500 HD; 2020-2025 Chevrolet Silverado 3500 HD; 2020-2025 GMC Sierra 2500 HD; 2020-2025 GMC Sierra 3500 HD)

Manufacturer

Part Number

C20681TDK-M
Black Friday Price

$2,217.96

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

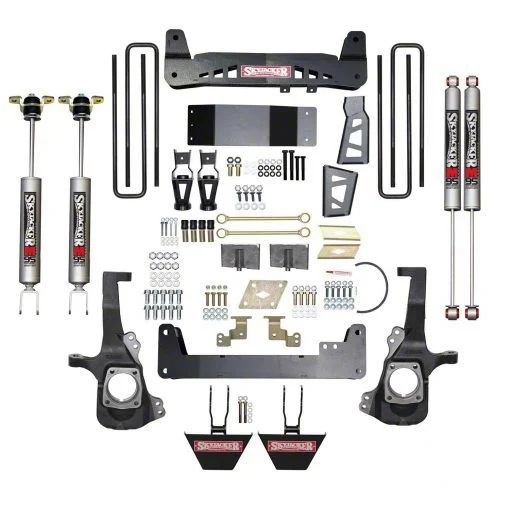

The Skyjacker C20681TDK-M is a comprehensive 6-inch suspension lift kit engineered specifically for 4WD GM 2500HD trucks. This all-inclusive system delivers a full 6 inches of lift, improving ground clearance, enabling larger tire fitment, and enhancing both on-road refinement and off-road capability.

Key Features:

  • Torsion Bar Drop Brackets – Precision-engineered to reposition the OEM torsion bar crossmember and maintain proper suspension geometry throughout the travel cycle
  • CNC Machined Ductile Iron Steering Knuckles – Replacement knuckles preserve OEM track width, maintain proper steering geometry, prevent CV axle overextension, and align to OEM specifications
  • Front & Rear Drop Crossmembers – Heavy-duty crossmembers provide solid mounting points for OEM lower control arms
  • Differential Skid Plate – Ties the two crossmembers together to form a rigid sub-frame while protecting vital steering and driveline components
  • Differential Relocation Brackets – Two separate brackets reposition and correct front CV axle and driveshaft angles
  • M95 Monotube Shocks – High-pressure nitrogen-charged monotube shocks with vehicle-specific valving and stroke for enhanced front and rear damping performance
  • Electric Stability Control (ESC) Compatible – System aligns to OEM specifications and works properly with the factory ESC system
  • Accommodates tires up to 35 inches with 5 or 4.5 inches of backspacing

Kit Also Includes:

  • Front bump stop brackets
  • Front and rear brake line relocation brackets
  • Differential vent tube extension
  • Front sway bar links and sway bar lowering brackets
  • Cast ductile iron rear blocks with Grade 8 U-bolts and lock nuts

Installation Notes: This lift kit installs using bolt-on components. Gas-powered models may require modification to the stock exhaust for proper driveshaft clearance. Professional installation is strongly recommended due to the complexity of the required suspension adjustments.

Products specifications

Fits

2020-2025 Chevrolet Silverado 2500 HD; 2020-2025 Chevrolet Silverado 3500 HD; 2020-2025 GMC Sierra 2500 HD; 2020-2025 GMC Sierra 3500 HD

Lift/Drop Height

6 in.

Prop 65

Yes
