Zone Offroad J16F Suspension Lift Kit with Fox Adventure Series Shocks - 4-Inch 2.0

Manufacturer

Part Number

J16F
Black Friday Price

$872.06

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

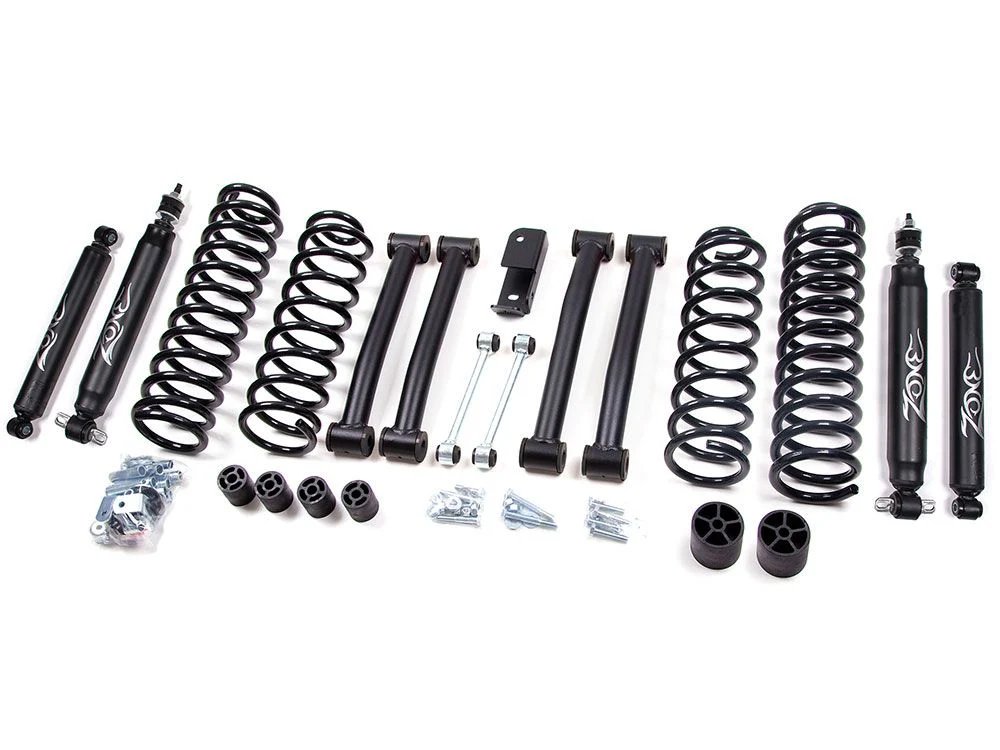

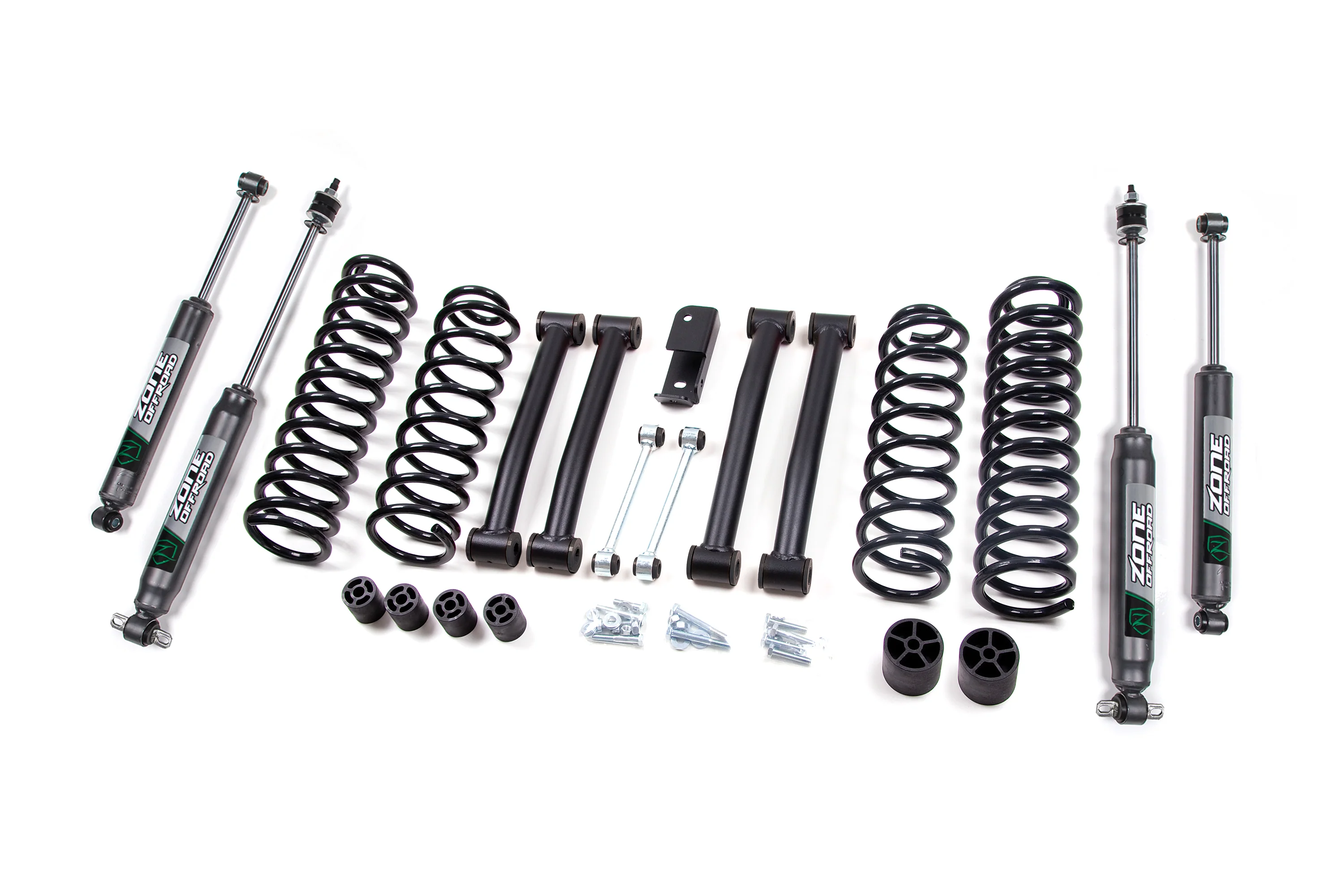

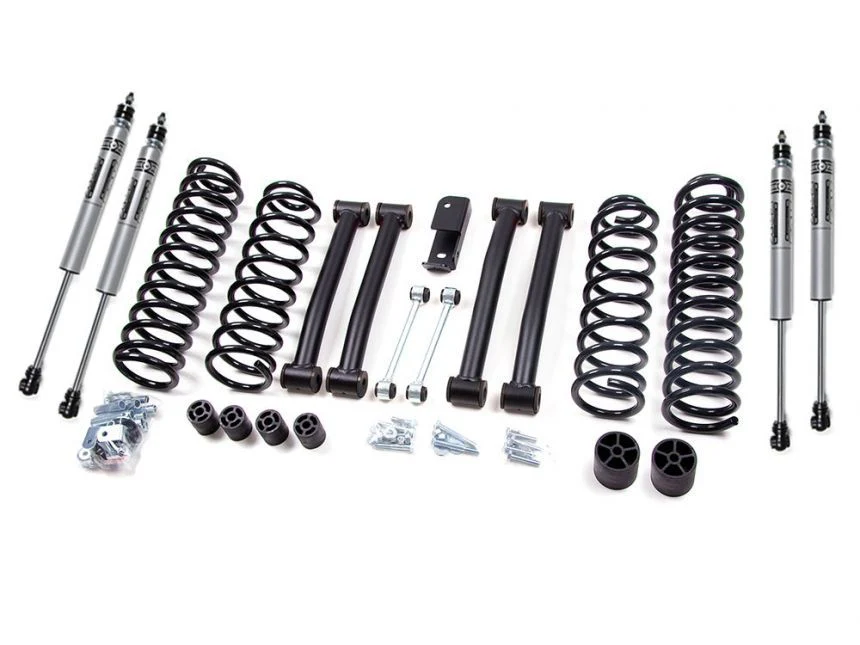

The Zone Offroad J16F is a complete 4-inch suspension lift system engineered to deliver a dramatic improvement in ground clearance and wheel travel. Featuring front and rear full-length replacement coil springs paired with four Fox 2.0 Adventure Series shocks specifically valved for this application, this kit strikes the ideal balance between confident off-road capability and comfortable on-road drivability.

The J16F kit is a comprehensive, bolt-in solution — no cutting or welding required — that accommodates factory wheels and allows fitment of up to 32-inch tires.

Key Features:

  • Full-length replacement front and rear coil springs add 4 inches of lift height while maintaining ride quality; fully compressible and return to original height
  • Heavy-duty lower control arms constructed from 1-3/4-inch x 1/4-inch wall DOM tubing — greaseable, formed to maximize wheel travel, and engineered to correct front caster and alignment
  • Extended-length front sway bar links with urethane bushings improve operating angle and reduce body roll at lift height
  • Rear track bar relocation bracket correctly re-centers the rear axle under the vehicle after lifting
  • Rear pinion cam locks rotate the rear pinion for proper driveline angles
  • Transfer case drop kit corrects rear driveline angle and allows continued use of the factory rear driveshaft
  • 3-inch bump stop extensions properly limit suspension up-travel to protect the vehicle while maximizing wheel travel
  • All necessary mounting and installation hardware included
  • No cutting or welding required; accommodates factory wheels

Quick Specs:

  • Front Lift Height: 4 inches (Coil Springs)
  • Rear Lift Height: 4 inches (Coil Springs)
  • Max Tire Size: Up to 32 inches
  • Shock Type: Fox 2.0 Adventure Series (qty. 4)
  • Cutting Required: No
  • Welding Required: No
  • Adjustable: No

Front Driveshaft Note: Measure the front driveshaft prior to installation. If over 24-1/2 inches, no modification should be necessary. If between 20 and 24 inches, a Spicer-type joint may be needed if vibration occurs. If under 20 inches, a Spicer-type joint is required.

Backed by Zone Offroad's Shield Lifetime Warranty, the J16F kit delivers a purpose-built off-road suspension upgrade with the added performance of Fox shocks for ZJ owners who demand the best from both the trail and the street.
