Zone Offroad F47F Suspension Lift Kit with Fox Adventure Series Shocks - 4-Inch 2.0

Manufacturer

Part Number

F47F
Black Friday Price

$1,318.78

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Zone Offroad F47F is a complete 4-inch suspension lift system engineered for 2015–2019 Ford F-150 4WD trucks. Built around the same premium architecture as Zone's flagship 6-inch system, this kit delivers a proven balance of aggressive lift height, everyday drivability, and serious off-road capability — with clearance for up to 35-inch tires.

The front lift is achieved via bolt-on strut spacers that do not require disassembly of the factory struts, making installation more straightforward. The system is built around two heavy-duty 1-piece lower control arm crossmembers and massive ductile cast iron steering knuckles that improve strength while correcting steering geometry. Differential relocation brackets reposition the front differential for optimal CV joint angles while allowing the factory front driveshaft to function as intended. Eccentric cam bolts simplify alignment adjustment post-install, sway bar drop brackets restore the sway bar to its proper operating position, and a heavy 1/4-inch thick differential skid plate shields the underside during off-road use.

In the rear, full 4-inch cast iron lift blocks with integrated bump stop wings provide the lift needed to level the truck's stance front to rear.

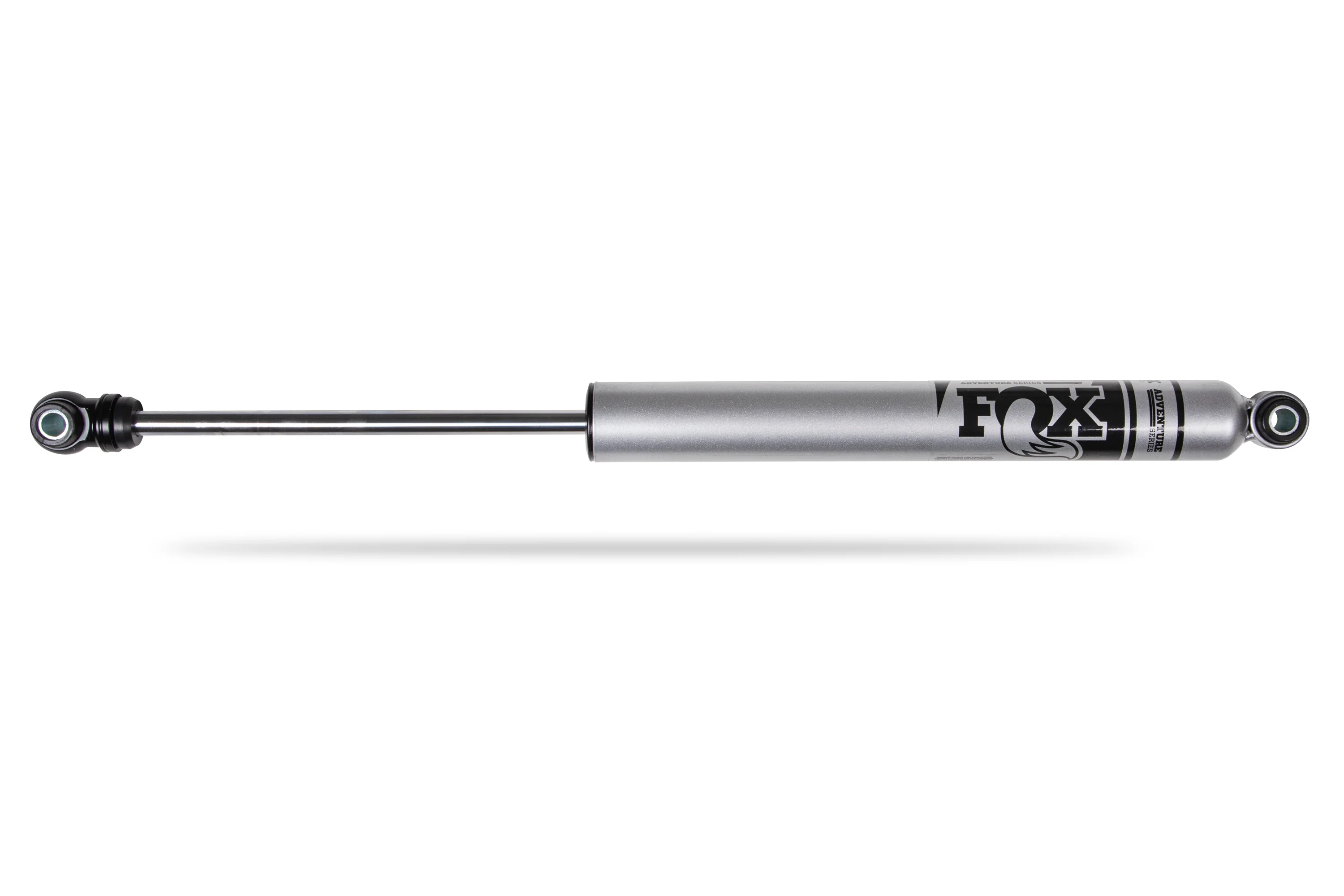

This F47F variant includes Fox 2.0 Adventure Series shocks — valved specifically to complement the Zone lift system. These monotube shocks feature a 2-inch OD steel body, a 5/8-inch heat-treated hard chrome plated shaft, and an internal floating piston (IFP) that separates shock oil from the high-pressure nitrogen-charged gas chamber, eliminating oil aeration for fade-free performance on and off road.

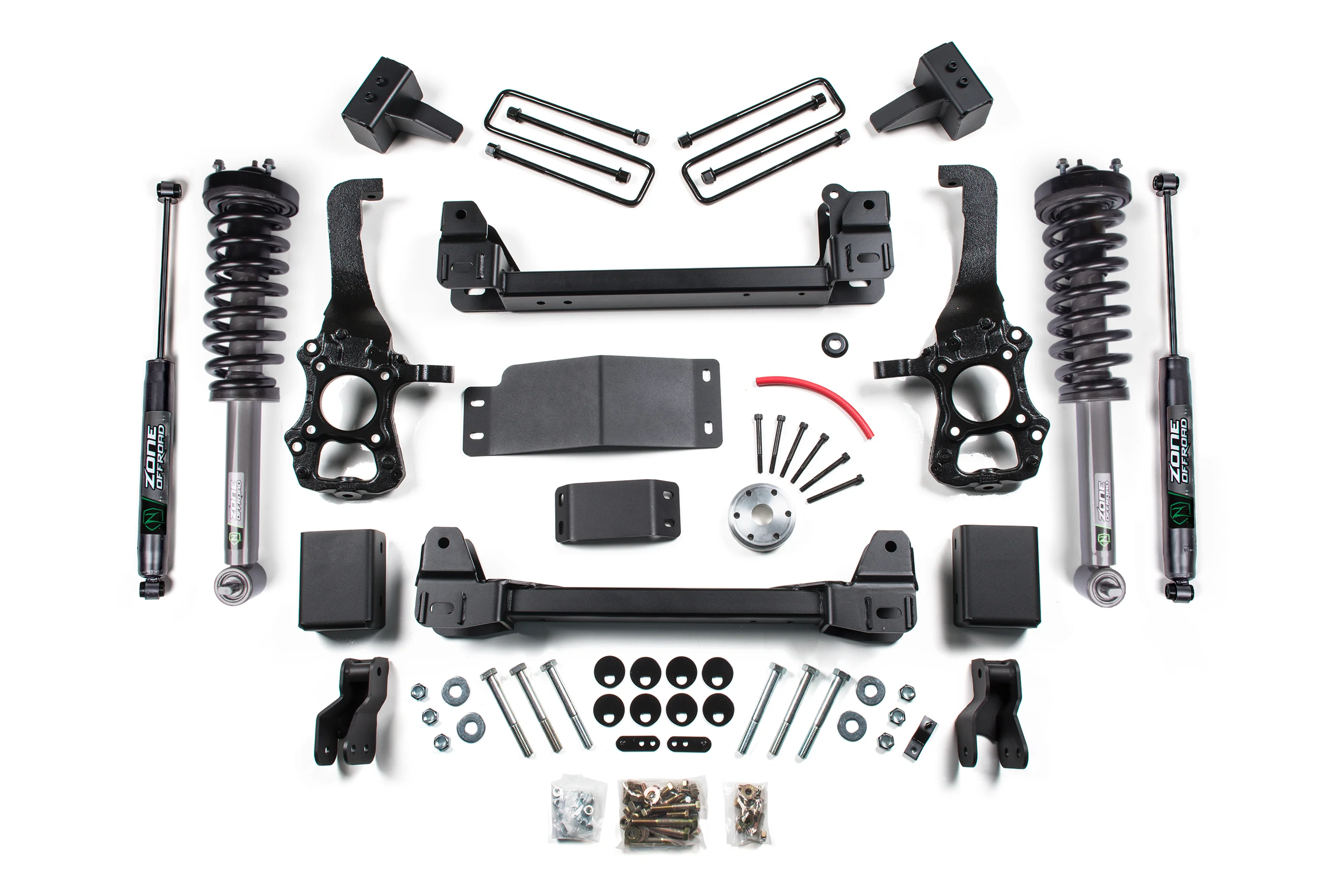

What's Included:

  • Heavy-duty lower control arm crossmembers (x2)
  • Ductile cast iron steering knuckles
  • Bolt-on front strut spacers
  • Differential relocation brackets
  • Driveshaft spacer
  • Eccentric cam bolts
  • Sway bar drop brackets
  • 1/4-inch thick differential skid plate
  • 4-inch cast iron rear lift blocks with bump stop wings
  • Rear U-bolt kit
  • Fox 2.0 Adventure Series shocks (front and rear)

Key Specs:

  • Front Lift: 4 inches — Strut Spacer / Knuckle method
  • Rear Lift: 4 inches — Cast iron block method
  • Max Tire Size: 35 x 12.5 inches
  • Compatible Wheel Sizes: 18x9, 20x9, 22x9 (5.5-inch backspacing)
  • No cutting or welding required
  • Powdercoated finish
  • Shock body: 2-inch OD steel | Shaft: 5/8-inch hard chrome plated

Installation Notes: 18-inch wheels should be test-fit to confirm tie rod end clearance, as wheel profiles can vary by manufacturer. Minor trimming may be required depending on wheel selection. Some 2015–2016 models equipped with Auto 4WD (indicated by a '4A' option on the transfer case shift knob) require the equivalent 2017–2018 lift system instead. Models with Auto 4WD may also require front driveshaft replacement. Requires frame bracket modification.
