Wilwood 120-17459-RD AeroDM Forged Disc Brake Caliper - 6-Piston Red

The Wilwood AeroDM forged six-piston disc brake caliper delivers serious heavy-duty stopping performance for street and off-road applications. Engineered with race-proven technology in a versatile body design, the AeroDM is purpose-built to handle the demands of heavy-weight braking across a wide range of late-model trucks and performance vehicles. This caliper is finished in a durable red powdercoat for a bold appearance under the wheel.

Stress-Flow Forged Aluminum Construction:

The AeroDM caliper body is stress-flow forged from a premium-grade aluminum alloy. Unlike a standard machined billet, the stress-flow forging process realigns the metal's internal grain structure to follow the contour of the caliper body. This eliminates grain structure interruptions caused by straight-cut machining, resulting in a caliper with superior clamping efficiency, enhanced fatigue resistance, and greater structural integrity under high-stress braking loads.

Key Features:

• Six-piston forged aluminum caliper for maximum clamping force and heat dissipation

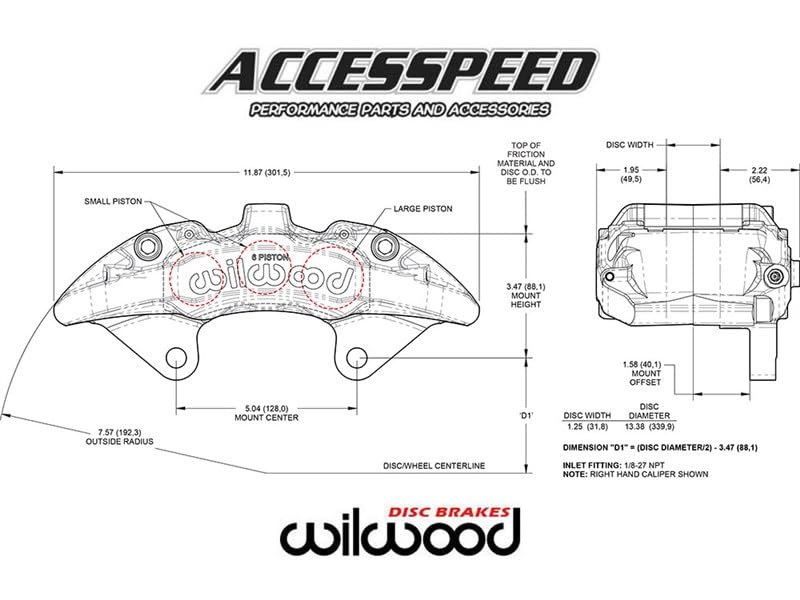

• Variable lug geometry enables direct spindle mounting with proprietary 13.38" diameter rotors
• Internal fluid ports eliminate external fluid cross-over tubes for a cleaner, more rigid assembly
• No massive center bridge assembly — internal porting design adds extra rigidity to the caliper body
• Multiple piston volume options provide versatility to match all types of heavy-weight braking requirements
• Red powdercoat finish for corrosion resistance and aggressive underhood appearance
• Race-derived design adapted for widespread street and off-road compatibility

The Wilwood AeroDM six-piston brake caliper is available in multiple mounting configurations and finishes to suit a variety of applications. Sold individually.
