Wilwood 261-17796-P Mopar Compact Tandem Master Cylinder Kit Bore Chrome - 15/16in

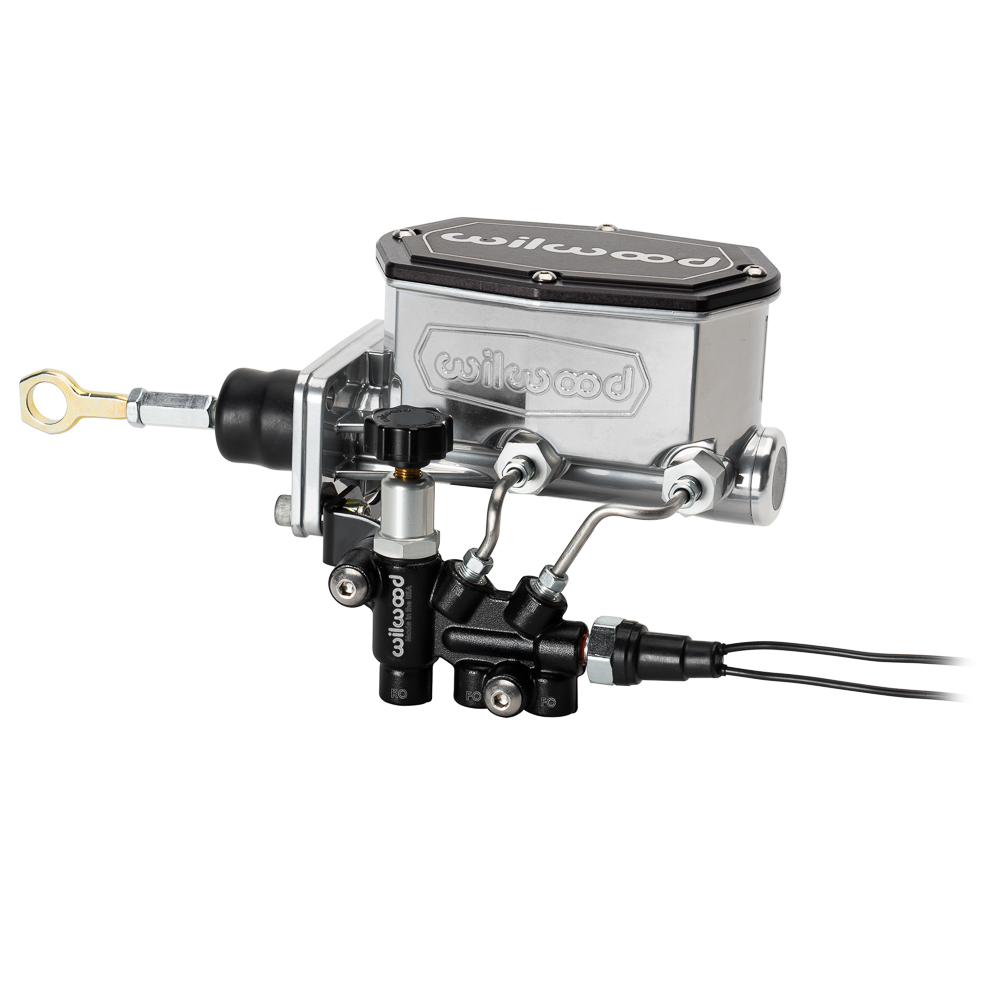

The Wilwood 261-17796-P is a complete Mopar Compact Tandem Master Cylinder Kit engineered specifically for classic Chrysler A-body, B-body, and E-body muscle cars from the 1960s and 1970s. Wilwood designed this master cylinder with a rectangular four-bolt mounting flange that matches Mopar's unique firewall bolt pattern — delivering a precise, factory-correct fit without custom fabrication.

This kit features a 15/16-inch bore and a premium Chrome Powdercoat finish to complement any engine bay build. A left-hand side bracket is included for clean, factory-style mounting. The kit comes complete with all hardware needed for a full installation, including an adjustable proportioning valve, pre-formed tubing, and a pushrod with a Mopar-style clevis end for direct pedal linkage connection.

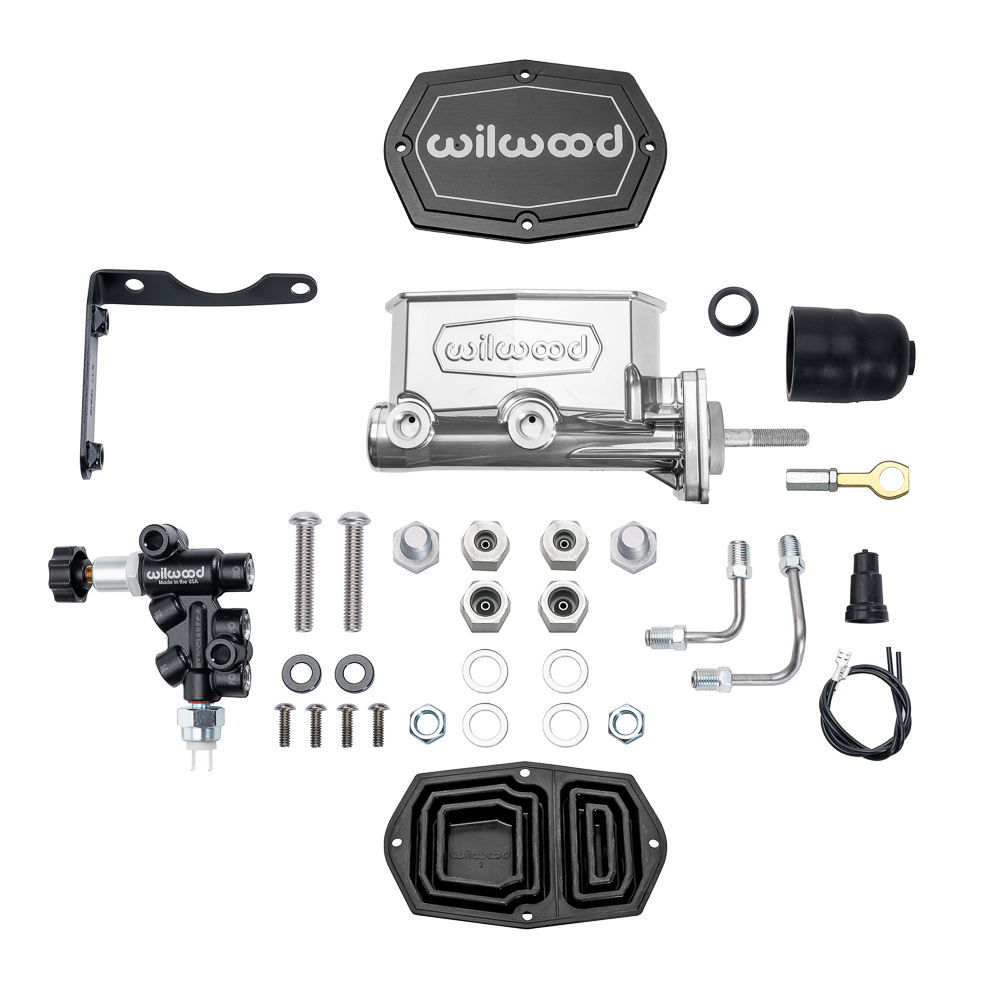

Kit Includes:

• Compact Tandem Master Cylinder — 15/16 in. bore
• Chrome Powdercoat finish
• Left-hand side mounting bracket
• Adjustable proportioning valve
• Pre-formed brake tubing
• Pushrod with Mopar-style clevis end

Key Specifications:

• Bore Size: 15/16 in. (0.9375 in.)
• Finish: Chrome Powdercoat
• Mounting Flange: Rectangular four-bolt Mopar pattern
• Bracket Side: Left-hand
• Part Number: 261-17796-P

Wilwood's Mopar Compact Tandem Master Cylinder series is also available in 1.00 in. and 1-1/8 in. bore sizes and in a glossy black E-coat finish, giving builders the flexibility to match their specific brake system requirements and aesthetic preferences.
