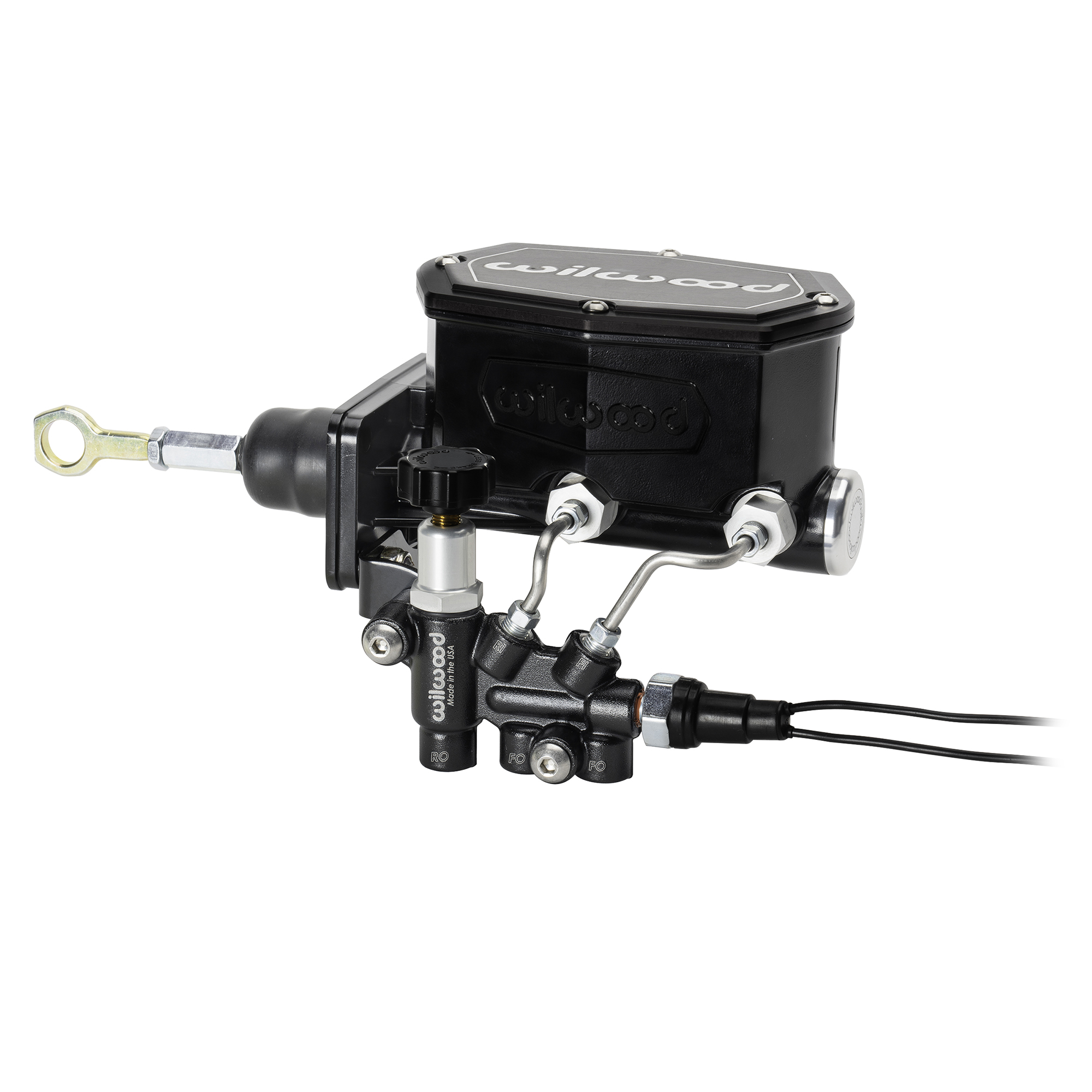

Wilwood 261-17796-BK Compact Tandem Master Cylinder Kit Mopar Bore - 15/16 Black

The Wilwood 261-17796-BK Compact Tandem Master Cylinder Kit is engineered specifically for Mopar applications with the factory four-bolt mounting pattern. This complete kit features a 15/16" bore master cylinder with a durable black E-coat finish, designed to fit A-body, B-body, and E-body firewalls from the 1960s and 1970s.

Key Features:

• 15/16" bore diameter for balanced braking performance
• Rectangular mounting flange matches Mopar four-bolt firewall pattern
• Black E-coat finish for corrosion resistance and show-quality appearance
• Left-hand side bracket for secure mounting
• Integrated adjustable proportioning valve for front-to-rear brake bias tuning
• Includes combination valve with hydraulic brake light switch
• Complete with pushrod featuring Mopar-style clevis end
• Pre-bent tubing and fittings included for simplified installation

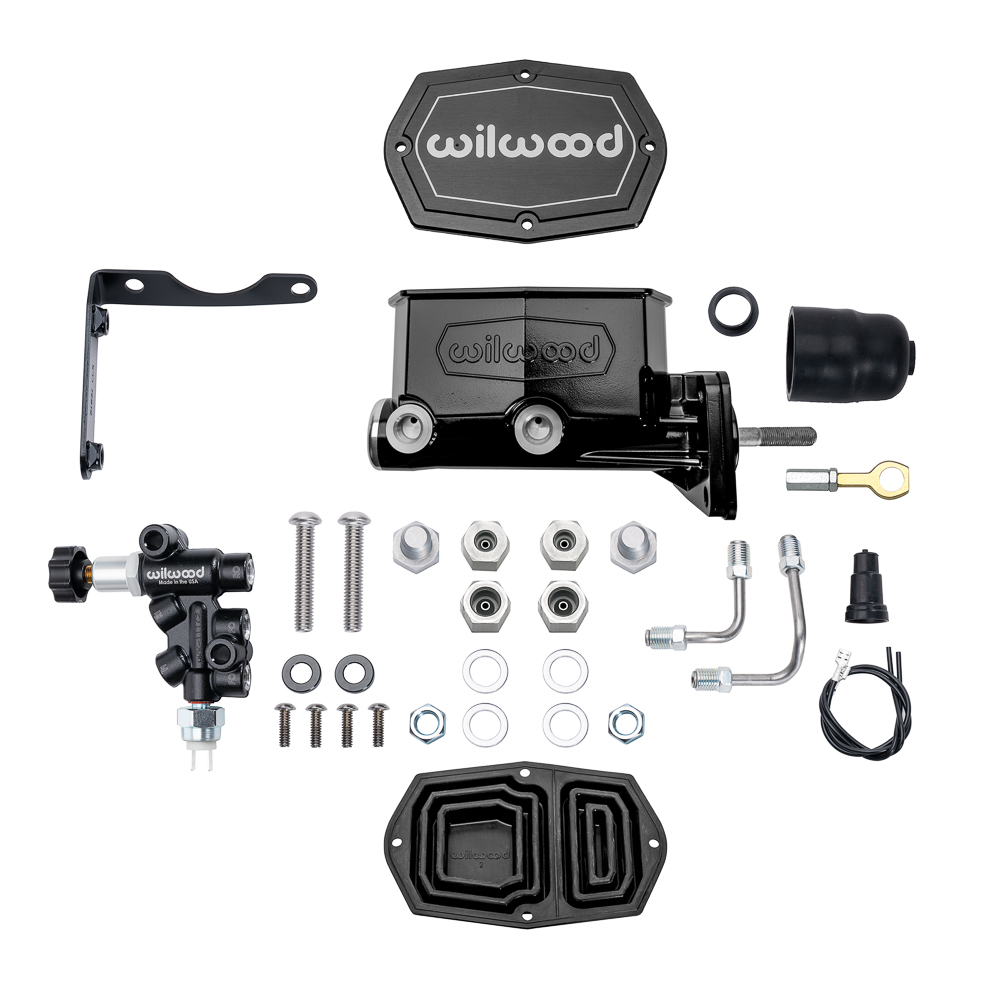

This complete bolt-on kit provides everything needed to upgrade your Mopar's braking system with Wilwood's proven tandem master cylinder technology. The compact design fits tight engine bays while the adjustable proportioning valve allows fine-tuning of brake balance for optimal performance and safety.
