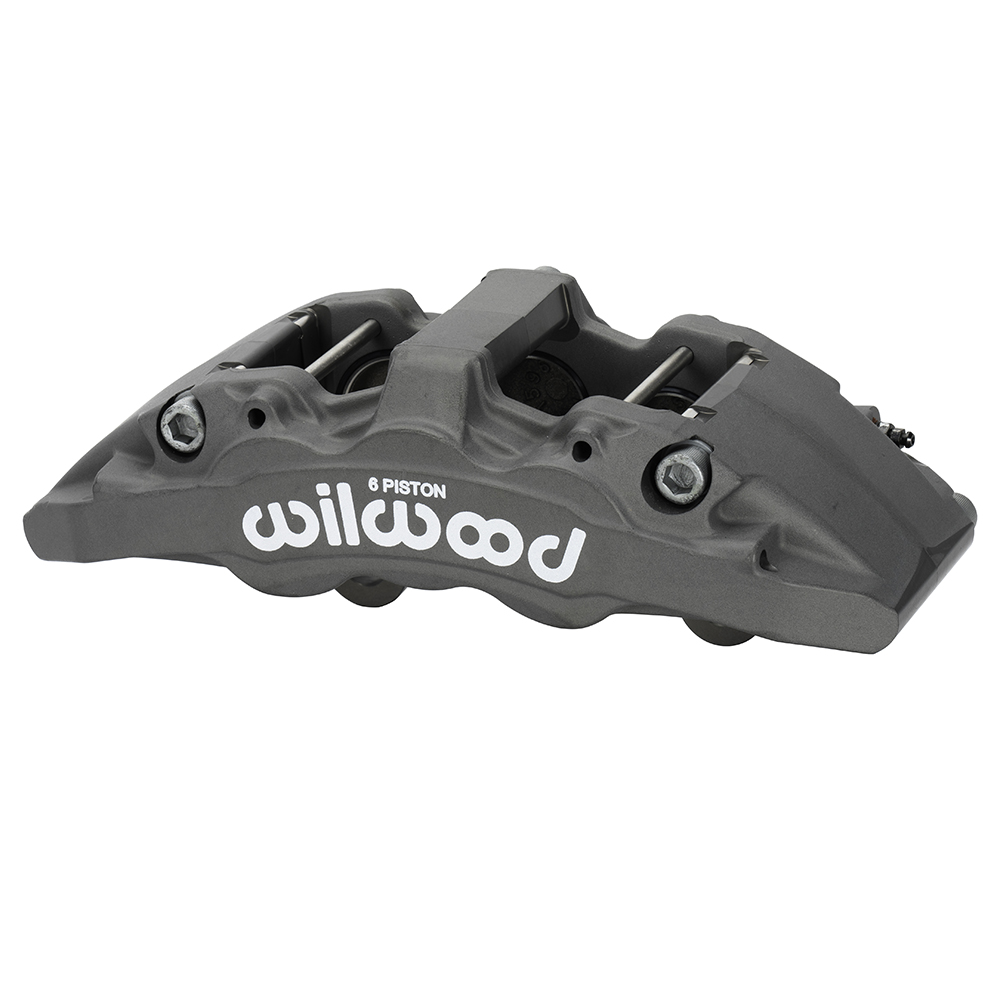

Wilwood 120-17592 AeroDM Six-Piston Forged Aluminum Disc Brake Caliper

The Wilwood AeroDM six-piston forged aluminum disc brake caliper brings race-proven stopping technology to street and off-road applications. Engineered for heavy-duty braking demands, the AeroDM combines advanced forging techniques with a versatile body design capable of suiting a wide range of trucks and performance builds.

Stress-Flow Forged Construction:

The AeroDM caliper body is stress-flow forged from a premium-grade aluminum alloy billet. This specialized forging process realigns the metal's internal grain structure to follow the contour of the caliper body — eliminating the stress points and grain interruptions that result from machining a straight billet block. The outcome is a caliper with superior clamping efficiency and exceptional resistance to fatigue, distortion, and stress under heavy load.

Key Features:

• Six-piston forged aluminum caliper body for maximum strength and reduced weight
• Variable lug geometry enables direct spindle mounting for widespread adaptability
• Compatible with proprietary 13.38" diameter rotors on many late-model trucks
• Multiple piston volume options to match varying heavy-weight braking requirements
• Internal fluid ports eliminate external fluid cross-over tubes for a cleaner, more rigid assembly
• Eliminates the massive center bridge assembly for added structural rigidity
• Available in multiple mounting sizes and finish options including powdercoat and anodized

The Wilwood 120-17592 AeroDM caliper is an ideal upgrade for truck owners and enthusiasts seeking a high-performance, race-derived braking solution with the durability to handle demanding street and off-road conditions.
