RADIUM Engineering 20-1972 Fuel Hanger Surge Tank BMW E90/E91/E92/E93 for Walbro F90000267/274/285

The RADIUM Engineering 20-1972 Fuel Hanger Surge Tank (FHST-RA) is a revolutionary in-tank solution to eliminate fuel starvation during high-performance driving while providing the ability to upgrade to high-flow aftermarket fuel pumps. This system is installed inside the BMW fuel tank on the opposite side of the factory fuel pump and can hold one or two high-flow aftermarket fuel pumps.

Key Features:

• Compatible with Walbro F90000267, F90000274, or F90000285 E85 fuel pumps (pumps sold separately)
• Collector box and built-in pressure regulator included
• The stock fuel pump is used to pump fuel into the FHST, while the pumps inside the FHST then supply fuel to the engine
• Integrated fuel pressure regulator can operate at a 1:1 ratio permitting fuel pressure to proportionally increase with boost pressure
• 6-hole diverter evenly disperses fuel inside the canister preventing air bubbles and foaming
• E85 compatible and does not require any permanent modifications for installation
• Can be converted from a built-in regulator dead head system to a return style system
• Custom designed stainless electrical studs easily handle high current demand and are properly sealed and impervious to all standard and exotic fuels

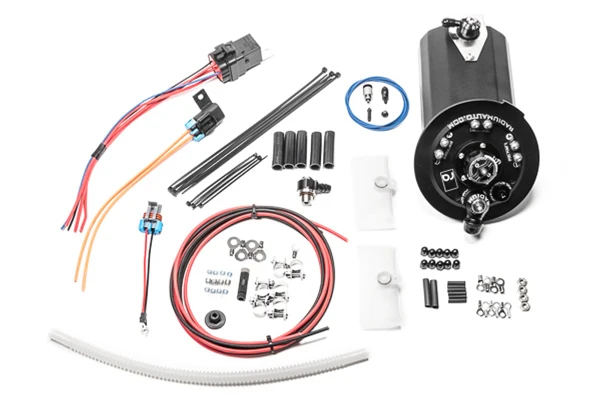

Compatible with all BMW E90/E91/E92/E93 3-series with the N54 or N55 engine. Includes 1 relay, 1 fuse, and all associated wiring and hardware to install 1 surge tank pump. Drop-in billet aluminum construction provides superior durability and performance for high-horsepower applications.

Note: Fuel pumps not included. A separate fuel feed kit (20-0475-0X series) is required for complete installation.
