The RADIUM Engineering 20-1204-V is a remote mount vented female dry break fuel filler system engineered for professional motorsports and high-performance racing applications. This complete fuel filling assembly is designed for mounting to external surfaces such as fenders, providing quick and mess-free refueling without traditional fuel caps.
How Dry Break Technology Works:
Dry break systems enable rapid fuel filling with zero spillage. The female dry break receiver installs on the vehicle while a male dry break probe connects to your fuel jug. When coupled together, both valve seals open and close with synchronized timing, preventing fuel leaks during connection and disconnection. This technology is essential for competitive racing where every second counts during pit stops.
Complete Kit Includes:
- 1.5 inch female vented dry break fitting
- Aluminum housing and aluminum nut ring
- Stainless steel mounting hardware
- Gasket for proper sealing
- 2.25 inch barbed outlet fitting for fuel hose connection
Technical Specifications:
- Mounting Type: Remote mount for external surfaces
- Required Hole Size: 77mm (3.03 inches) diameter
- Filler Hose Requirement: 2.25 inch ID
- Flange Outer Diameter: 4.75 inches
- Bolt Circle Diameter: 4.25 inches PCD
- Overall Height: 4.08 inches (dry break to barb)
- Dry Break Size: 1.5 inch female
- Mates With: 20-0496 Dry Break 1.5 inch Male probe
Safety Features:
- Vented cap with integrated rollover protection prevents fuel spillage if vehicle becomes inverted
- Compatible with Radium 20-0535 DSV Valve for automatic shutoff when tank is full
- Anodized aluminum construction with stainless steel hardware and bronze bushings
- Universal fuel compatibility: unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, and all racing fuels
Compatibility:

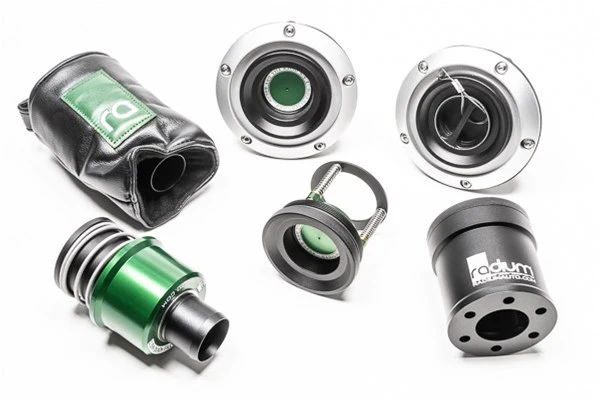

This system is compatible with all Radium Engineering dry break systems of the same 1.5 inch size. Can be used with optional adapters including the 20-1007 (2.25 inch adapter), 20-1008 (24AN adapter), or 20-1015 (1.5 inch adapter) for different hose configurations.
Ideal for circle track racing, road racing, rally, off-road competition, and any motorsports application requiring fast, clean refueling. Professional-grade construction ensures reliability under the most demanding racing conditions.
