RADIUM Engineering 20-1020 Fuel Pump Hanger for 89-05 Mazda MX-5 Miata

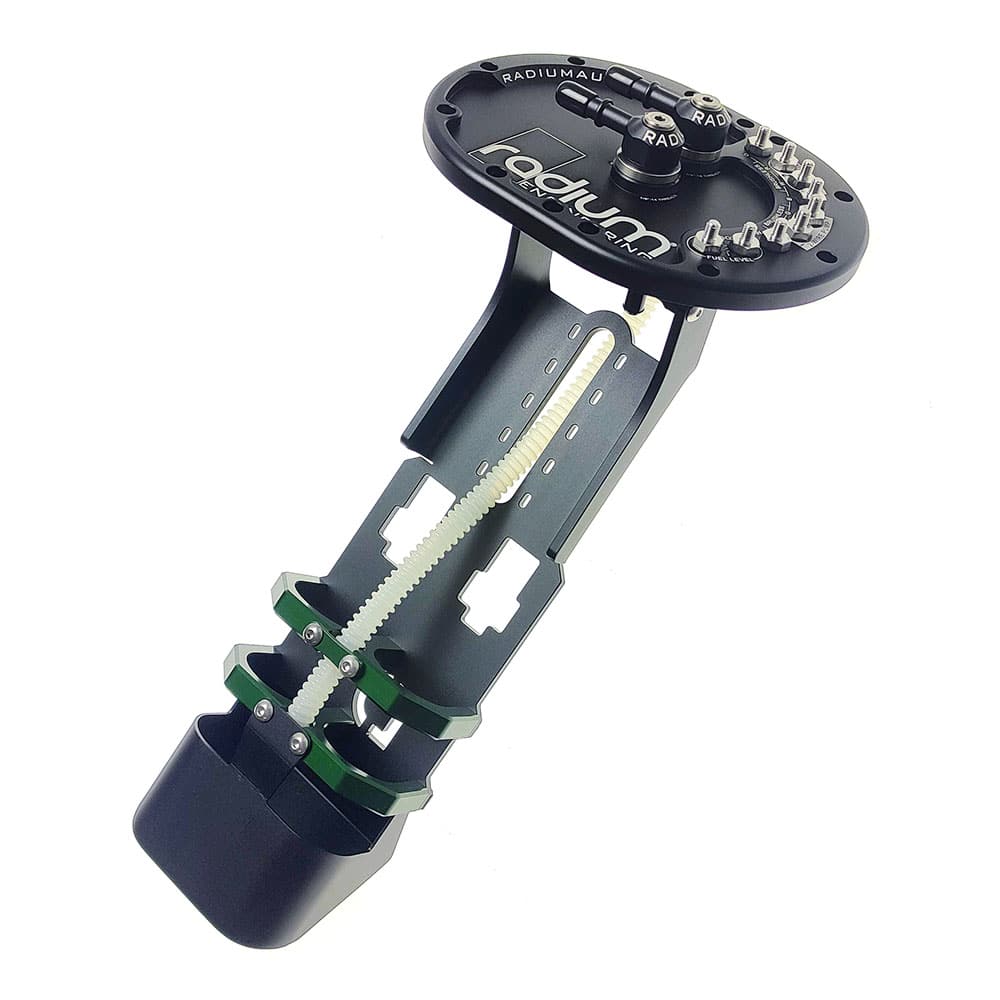

The RADIUM Engineering 20-1020 is a complete drop-in replacement fuel pump hanger designed for 1989-2005 Mazda MX-5 Miata (NA/NB chassis). This precision-engineered fuel hanger completely replaces the factory in-tank fuel pump module and supports one or two aftermarket fuel pumps with 39mm outer diameter, providing the flexibility to upgrade your fuel system for high-performance applications.

Key Features:

• Anodized billet aluminum construction with integrated fuel collector box for fuel starvation protection
• Reuses OEM fuel level sensor with included extension mount for deeper fuel tanks
• Direct fitment with no modifications required under fuel pump access cover
• 10AN ORB pump outlet port and 8AN ORB fuel return port with SAE quick-connect fittings included for both 89-97 and 99-05 models
• Two 355 LPH one-way fill valves prevent fuel from escaping collector box during hard cornering
• Multiple pre-pump filters included for all pumps
• ETFE-insulated in-tank wiring with stainless steel terminals and non-conductive anodized acorn nuts
• Adjustable extension brackets accommodate all fuel tank variations across 89-05 model years

Compatible Fuel Pumps: AEM 50-1200, Walbro GSS342, Walbro F90000267/F90000274/F90000285, Ti Automotive E5LM, and other aftermarket pumps with 39mm outer diameter (pumps sold separately).

Important Notes: 99-05 MX-5 installations require an aftermarket fuel pressure regulator as the OEM FPR will be removed (RADIUM 20-1022 FPR kit recommended). 89-97 models retain the OEM fuel rail-mounted regulator. Installation instructions available at radiumauto.com.

Note: This product is not CARB legal and not for sale in California or CARB states.
