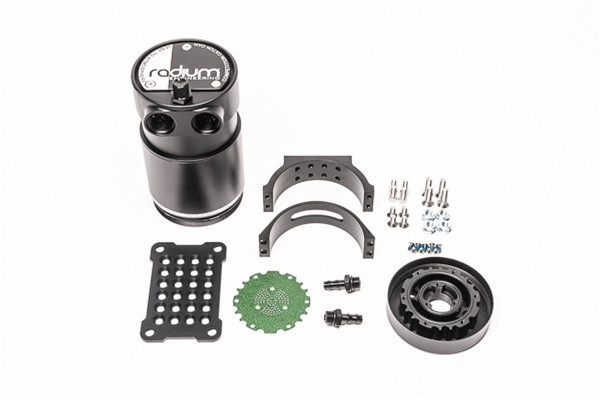

RADIUM Engineering 20-0819 Universal Air Oil Separator AOS-R VTA

Manufacturer

Part Number

20-0819
Sale Price

$303.95

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The RADIUM Engineering AOS-R (Air Oil Separator, Return) is designed to keep blow-by oil and pollutants out of the air intake, intercooler, and manifold while providing a service-free solution for high-performance engines. Unlike traditional catch cans, the AOS-R system returns filtered oil back into the engine oil pan, eliminating the need for regular draining and maintenance.

Vent-to-Atmosphere Design:

This VTA (vent-to-atmosphere) model features two side inlet ports, making it ideal for dual bank engines with two crankcase vent ports. For single crankcase vented engines, simply plug one inlet port with Radium Engineering 14-0351. Gases are vented to the atmosphere out the top of the AOS. Note: The VTA AOS-R is not recommended for mass-air flow (MAF) sensor engines due to the vented air in the system.

Advanced Filtration Technology:

  • Features a giant non-restrictive outlet over 183% larger than the inner diameter of the 10AN inlets
  • Dual stage design located in both the inlet and outlet
  • Stainless steel condensing material separates oil from gases
  • Increased volume slows air flow, allowing contaminants to fall out of suspension
  • Free-flowing chambers create no flow restriction

Specifications:

  • Height: 6.7 inches (without fittings)
  • Diameter: 3.45 inches
  • Capacity: 20.3 oz (600mL)
  • Inlet ports: 7/8"-14 threaded
  • Coolant ports: 7/16"-20 threaded

Key Features:

  • Machined aluminum construction with billet design
  • Aluminum mounting bracket permits 360-degree rotation for flexible installation
  • Includes two 5/16" barbed fittings for coolant lines
  • Engine coolant is routed through a specially designed heating chamber to keep the AOS-R warm and prevent internal water condensation
  • Integrated water trap around the bottom perimeter prevents condensation from entering the oil pan
  • Includes dipstick for easy inspection
  • Entire unit disassembles into three large pieces for servicing
  • M6x1mm hardware included for chassis mounting

Benefits:

  • Lowers hydrocarbon emissions
  • Effectively raises octane and increases engine performance with cleaner inlet air
  • Prevents oil buildup in intake and intercooler system walls, throttle body, and intake manifold
  • Service-free system eliminates regular maintenance

Installation Requirements:

  • Requires a return port on the engine to the oil pan
  • Must be mounted high enough so the bottom port is higher than the engine return port
  • Engine coolant must be routed to the AOS-R to prevent condensation
