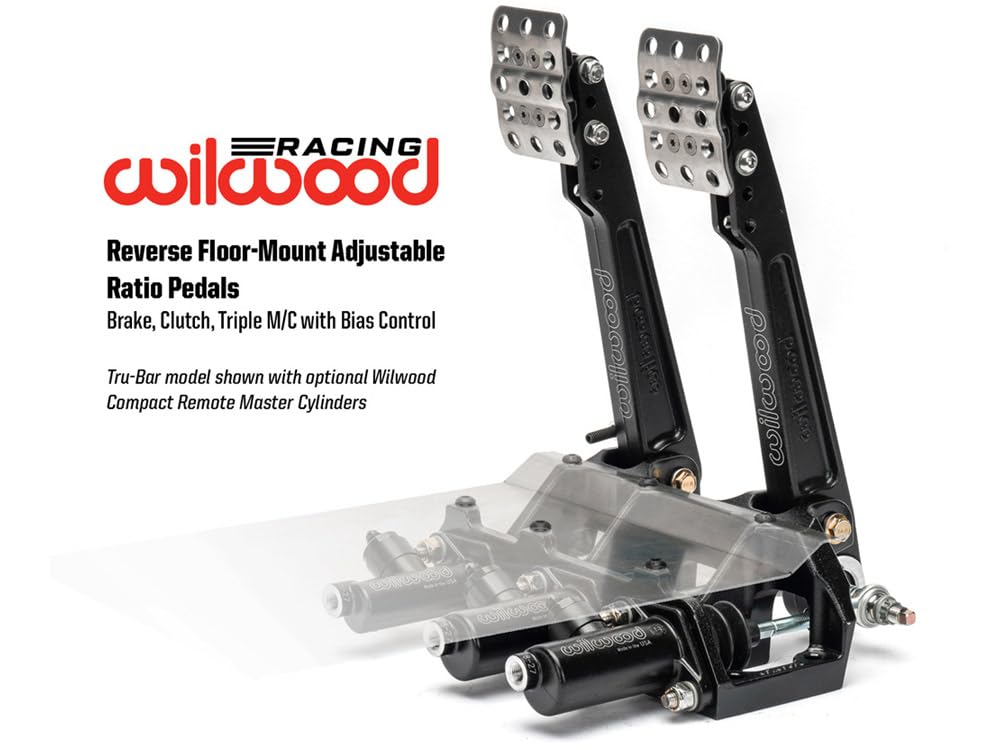

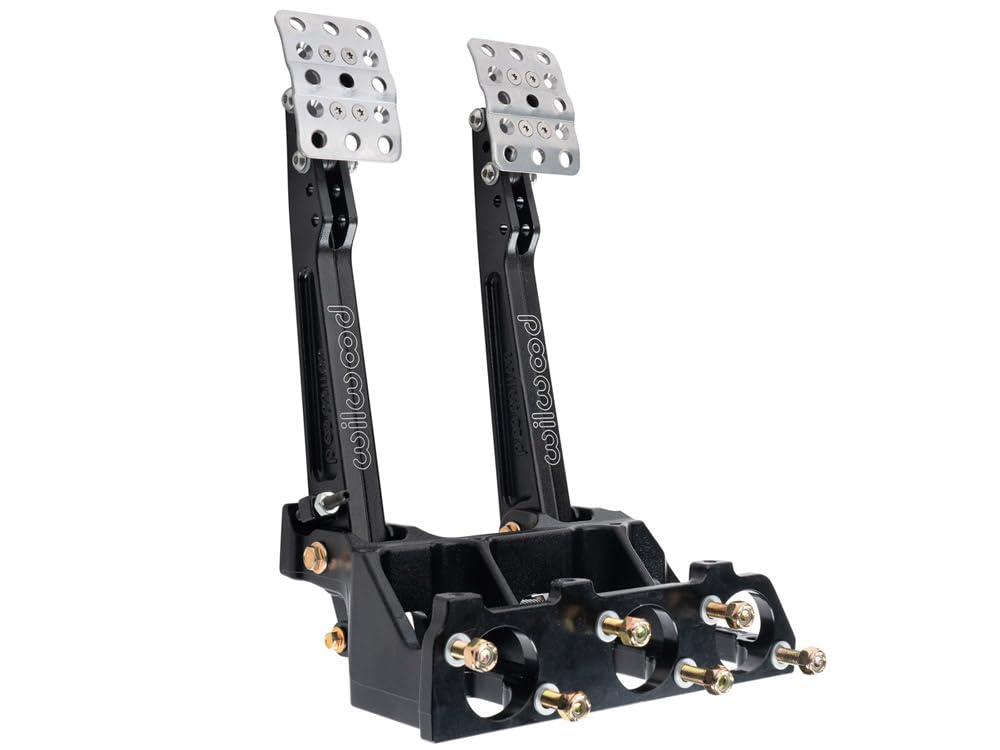

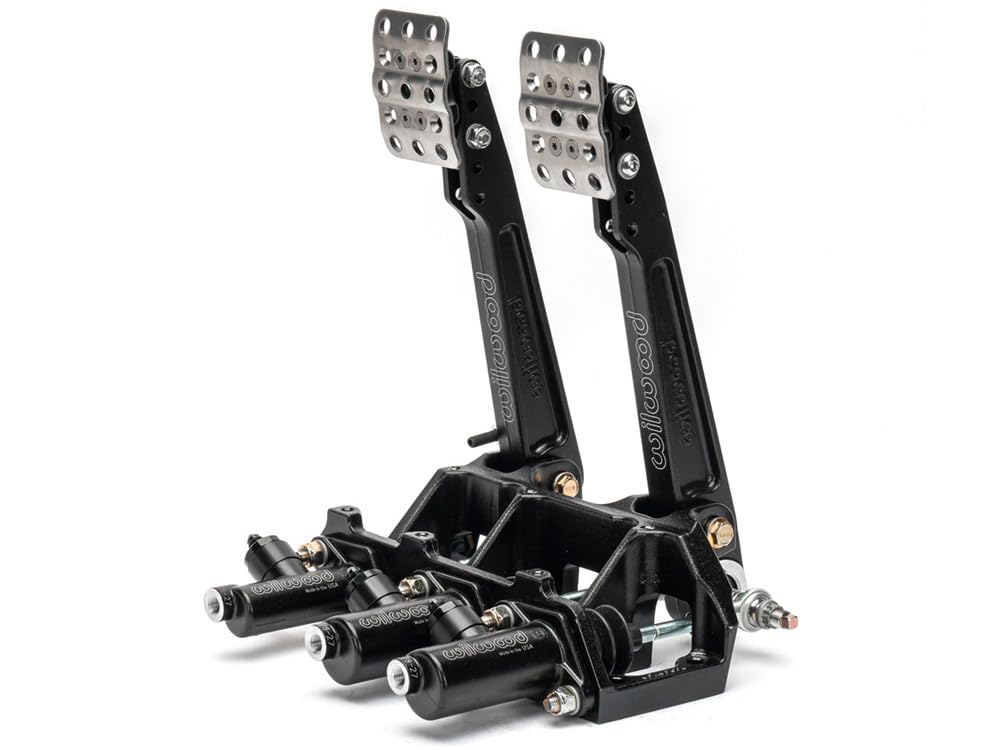

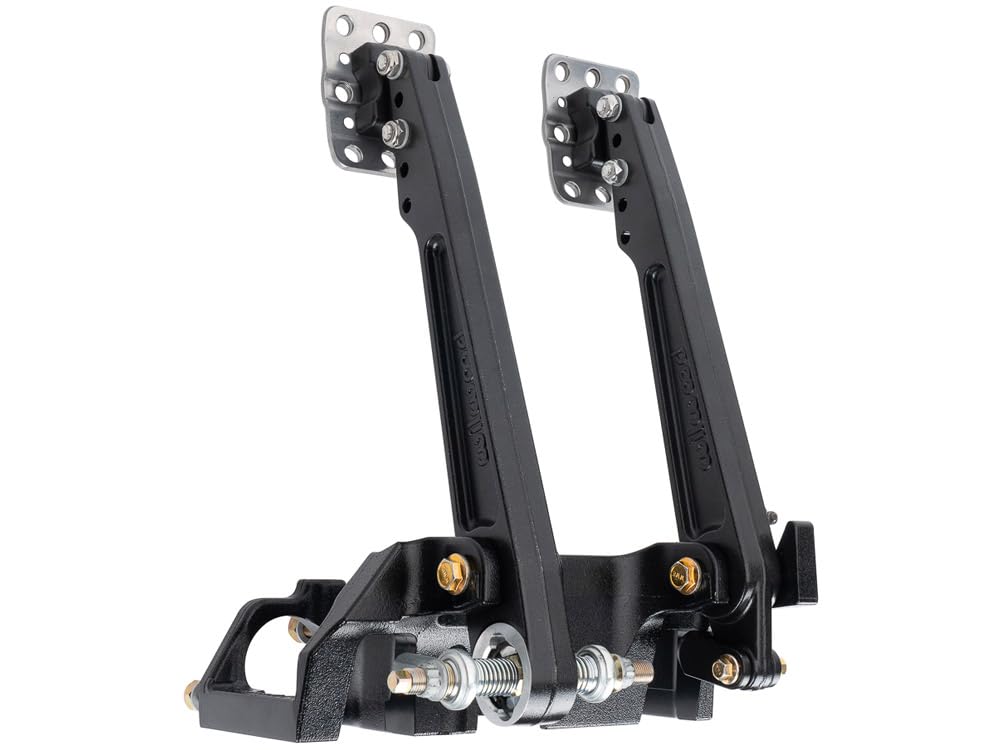

Wilwood 340-17804 Floor Mount Tru-Bar Brake and Clutch Pedal Assembly

Manufacturer

Part Number

340-17804
Black Friday Price

$683.05

In Stock (10)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wilwood 340-17804 is a floor mount brake and clutch pedal assembly featuring Wilwood's precision Tru-Bar balance bar system for race cars and high-performance custom street builds. Engineered with a lightweight aluminum frame and high-strength, reinforced I-beam style forged pedal arms, this assembly delivers superior brake feel, adjustability, and front-to-rear brake bias control.

Key Features:

  • Adjustable Pedal Ratio: Pedal head adjusts vertically to three positions — 5.25:1, 5.62:1, or 6.00:1 — for fine-tuning pedal feel and effort to driver preference

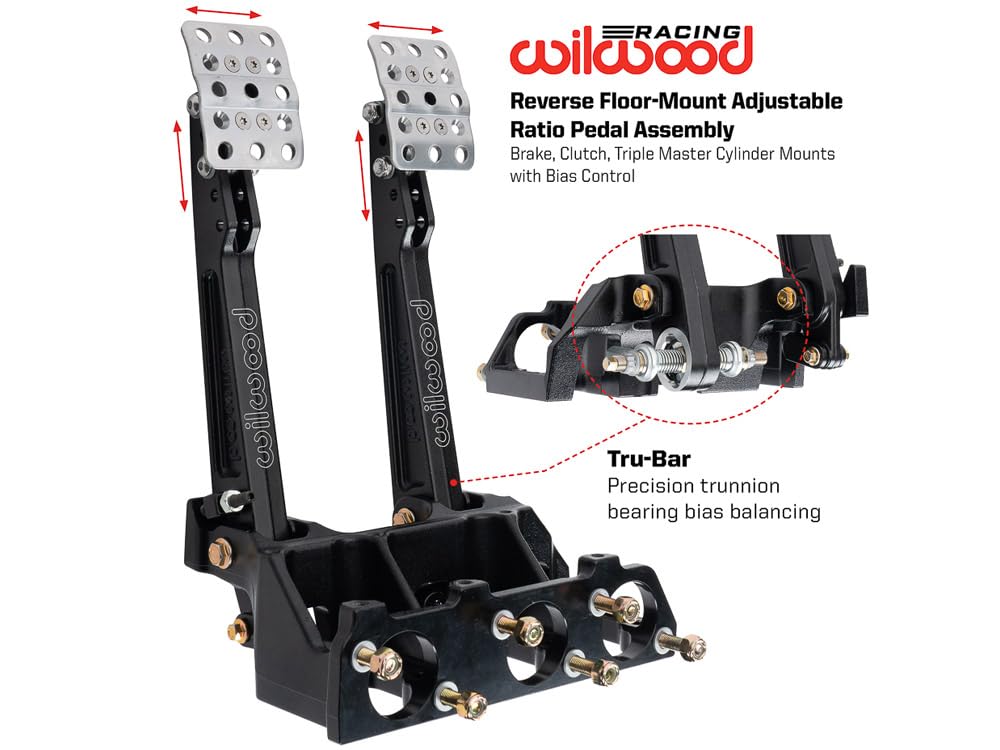

  • Tru-Bar Balance Bar: Friction-free, trunnion-based adjustable balance bar provides precise front-to-rear brake bias tuning; incorporates a positive detent stop every full turn to maintain adjustment position
  • Lockable Adjustment: Balance bar locks securely with the included jam nut, or accepts an optional remote knob for quick on-track adjustments without tools
  • Trunnion Bearing Design: Fixed trunnion bearing in the pedal arm with spherical rod-end bearing pushrod attachments minimizes compliance and friction for more accurate, consistent brake feel
  • Adjustable Foot Pads: Non-skid waffled pedal pads adjust laterally from 3.75 to 5.75 inches on center for optimal driver ergonomics; foot pad also adjusts horizontally 1 inch
  • Adjustable Clutch Stop: Limits clutch pedal travel to fine-tune engagement point
  • Triple Master Cylinder Mounts: Accepts three Wilwood 2.25-inch vertical mount flange, remote inlet, single outlet master cylinders (sold separately in a variety of styles and bore sizes)
  • Compatible Mounting: Shares the same chassis and master cylinder mounting pattern as Wilwood balance bar style pedals for easy integration
  • Lightweight Construction: Aluminum frame with forged pedal arms keeps unsprung and cockpit weight to a minimum

The Wilwood 340-17804 is engineered for builders who demand precision and repeatability in their braking system. Whether used in a dedicated race car or a custom street build, this floor mount pedal assembly provides the adjustability and performance that Wilwood is known for. Master cylinders are sold separately.
