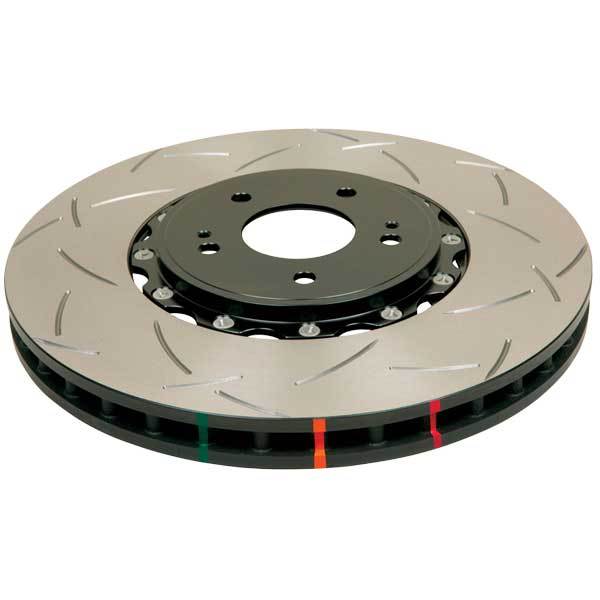

DBA DBA5240BLKS 5000 Series T3 Slotted 2-Piece Brake Rotor with Black Hat

(1999-2004 Audi A6 Quattro; 2002-2003 Audi S6)

Manufacturer

Part Number

DBA5240BLKS
Black Friday Price

$516.88

Estimated ship date Saturday, December 05

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The DBA DBA5240BLKS is a fully assembled 5000 Series T3 two-piece slotted brake rotor with black aluminum hat, engineered by Disc Brakes Australia (DBA) for high-performance street, track day, club racing, and rally applications. Sold as an individual rotor, this unit ships as a complete assembly ready for direct installation.

DBA's 5000 Series represents the pinnacle of their composite rotor technology. The two-piece design pairs a high-carbon cast iron rotor ring with an aerospace-grade T6061-T6 aluminum hat, secured together using National Aerospace Standards (NAS) bolts and crimp nuts rated to withstand operating temperatures up to 650°C. This construction reduces unsprung weight, allows for uniform radial disc expansion through the cast iron ring, and minimizes heat transfer from the disc to the wheel hub.

Key Features:

  • T3 Tri-Symmetrical Slot Design: Precision CNC-machined slots provide a quieter, more responsive, and smoother braking experience while increasing exit points for brake pad friction dust and gases
  • Kangaroo Paw Ventilation: Patented 144-pillar diamond and teardrop vane system delivers up to 20% better heat dissipation compared to conventional straight-vane rotors
  • Thermal Stability Profiling (TSP): Proprietary heat treatment process realigns the microstructure of the XG-150 high-carbon alloy iron, maximizing thermal stability and reducing metal fatigue under sustained heavy braking
  • Thermo-Graphic Heat Paint (TGHP): Temperature-sensitive paint markings permanently change color at specific heat thresholds, allowing drivers to monitor peak rotor temperatures and assess rotor fatigue
  • CBN Machine-Turned Finish: Cubic Boron Nitride surface finish minimizes disc thickness variation and reduces the risk of pad knock and premature wear
  • Black Aluminum Hat: High-temperature painted non-friction areas provide corrosion resistance and a premium appearance
  • NAS Hardware: Lightweight, high-tensile A286 corrosion-resistant alloy bolts and nuts; torque to 13 Nm (9.6 ft-lb)
  • Replaceable Rings: Two-piece design allows the cast iron rotor ring to be replaced independently, extending the service life of the aluminum hat
  • Sold Individually: Fully assembled hat and rotor ring, ready for direct installation

The DBA 5000 Series T3 is the ideal upgrade for performance-minded drivers who demand consistent, fade-resistant braking whether on the street, at a track day, or in club racing competition. DBA recommends pairing these rotors with matched DBA performance brake pads for optimal results.

Products specifications

Fits

1999-2004 Audi A6 Quattro; 2002-2003 Audi S6
