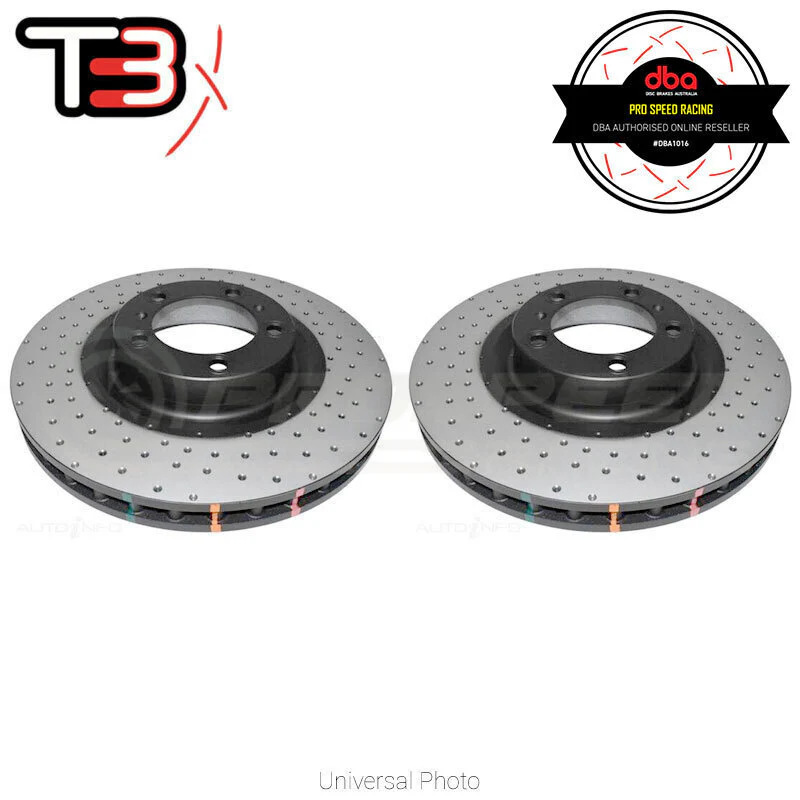

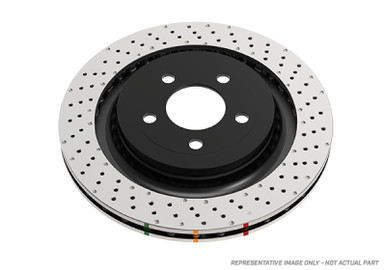

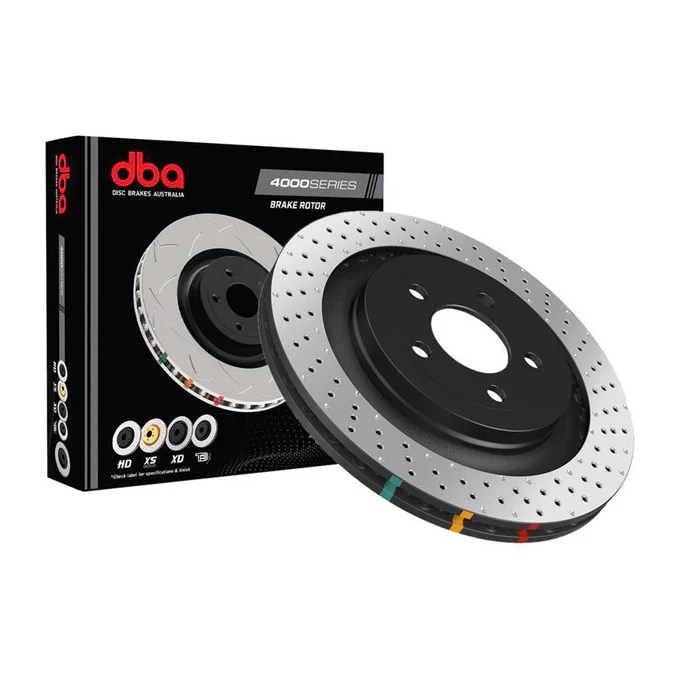

DBA DBA42830XD 4000 Series XD Cross-Drilled & Dimpled Front Brake Rotor 340mm

(2019-2023 Volkswagen Jetta; 2014-2023 Volkswagen GTI; 2015-2021 Volkswagen Golf; 2018-2023 Volkswagen Tiguan; 2012-2017 Volkswagen CC + 4 more models)

Manufacturer

Part Number

DBA42830XD
Sale Price

$234.26

Estimated ship date Sunday, November 29

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The DBA DBA42830XD is a 4000 Series XD front disc brake rotor featuring DBA's non-directional cross-drilled and dimpled surface treatment. Engineered as a direct-replacement, single-piece performance rotor, it delivers a meaningful upgrade over OEM braking components for drivers who demand more from their street or spirited-driving setup.

Cast from XG-150 high carbon alloyed iron and subjected to DBA's proprietary Thermal Stability Profiling (TSP) process, this rotor is built to handle the elevated stress and heat generated under demanding braking conditions. The XD CNC-machined surface features 84 cross-drilled holes and 36 dimples, promoting maximum heat transfer and efficient removal of brake dust and gases — all while maintaining rotor structural integrity above traditional fully-drilled designs.

Key Features:

  • XD Cross-Drilled & Dimpled Design — 84 drilled holes and 36 dimples for superior heat dissipation and gas/dust evacuation
  • Kangaroo Paw Ventilation — Patented vane design with 144 diamond and teardrop pillars delivers up to 30% more surface area and 20% improved cooling efficiency vs. straight-vane rotors
  • XG-150 High Carbon Alloyed Iron — Premium metallurgy optimised for DBA's TSP heat treatment process, ensuring long-term durability under repeated hard braking
  • Thermal Stability Profiling (TSP) — Stress-relief process that increases resistance to warping and cracking
  • Thermographic Heat Paint — Temperature-sensitive paint markings permanently change colour when threshold temperatures are exceeded, allowing easy monitoring of rotor fatigue
  • Direct OEM Replacement — Single-piece rotor designed for bolt-on installation with no modifications required
  • Vented Disc Construction — Internally vented for continuous airflow and improved thermal management

Rotor Specifications:

  • Outer Diameter: 340 mm (13.39 in)
  • Disc Thickness: 30 mm (1.18 in)
  • Minimum Thickness: 28 mm (1.10 in)
  • Hat/Centre Height: 49.5 mm (1.95 in)
  • Centre Bore: 65 mm (2.56 in)
  • Stud Holes: 5
  • Disc Type: Vented
  • UPC: 9316391428714

The DBA 4000 Series XD rotor is an ideal choice for performance-minded drivers looking to upgrade front braking capability with a proven, track-tested design backed by DBA's decades of brake engineering expertise.

Products specifications

Fits

2019-2023 Volkswagen Jetta; 2014-2023 Volkswagen GTI; 2015-2021 Volkswagen Golf; 2018-2023 Volkswagen Tiguan; 2012-2017 Volkswagen CC; 2019-2023 Volkswagen Arteon; 2012 Volkswagen Passat CC; 2015-2020 Audi S3; 2020-2021 Audi Q3
