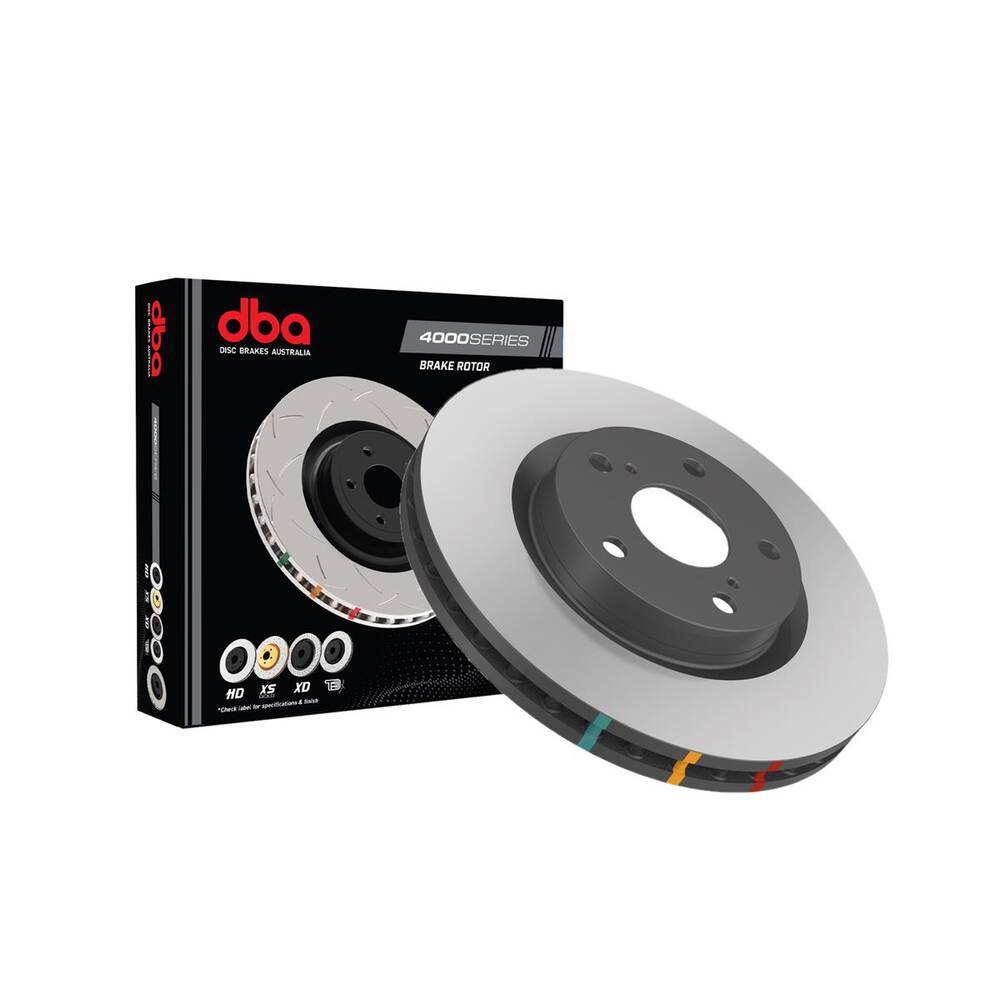

The DBA DBA42699 is a 4000 Series HD single-piece rear disc brake rotor measuring 330mm x 22mm, delivering upgraded braking performance above standard OE levels. Featuring a smooth OE-style rotor finish, this rotor is the ideal choice for performance drivers who want the advanced engineering of the DBA 4000 Series while maintaining a factory appearance — making it particularly popular in controlled race divisions and street use.
Cast from XG-150 high carbon alloyed iron with a dense metal matrix and manufactured to QS-9000 quality standards, each rotor undergoes DBA's proprietary Thermal Stability Profiling (TSP) process to stabilize the rotor's micro-structure for consistent performance under sustained heavy braking.
Inside, DBA's patented Kangaroo Paw ventilation system utilizes 144 diamond and teardrop-patterned pillars to deliver up to a 30% increase in cooling surface area and a 20% improvement in heat dissipation efficiency compared to conventional straight-vane designs. The result is lower operating temperatures, reduced brake fade, and a longer service life for both the rotor and brake pads.
Key Features:
- 4000 Series HD — smooth OE-style finish for a factory look with performance-grade engineering
- Kangaroo Paw ventilation — 144 diamond and teardrop pillars for up to 20% better heat dissipation
- XG-150 high carbon alloyed iron construction with dense metal matrix for superior thermal handling
- Thermal Stability Profiling (TSP) — stabilizes rotor micro-structure to resist warping, cracking, and premature wear
- Direct bolt-on replacement — no mechanical modifications required
- Manufactured to QS-9000 quality standards
- Sold individually (single rotor)
Specifications:
- Rotor Diameter: 330mm (12.99 in)
- Rotor Thickness: 22mm (0.87 in)
- Minimum Thickness: 20mm (0.79 in)
- Position: Rear
- Rotor Style: Vented, Smooth OE Finish
- OEM Cross-Reference: A1724230112
DBA (Disc Brakes Australia) is a globally recognized manufacturer of premium brake rotors, trusted as an OE supplier and a top choice for performance street, track day, 4x4, towing, and light commercial applications.
