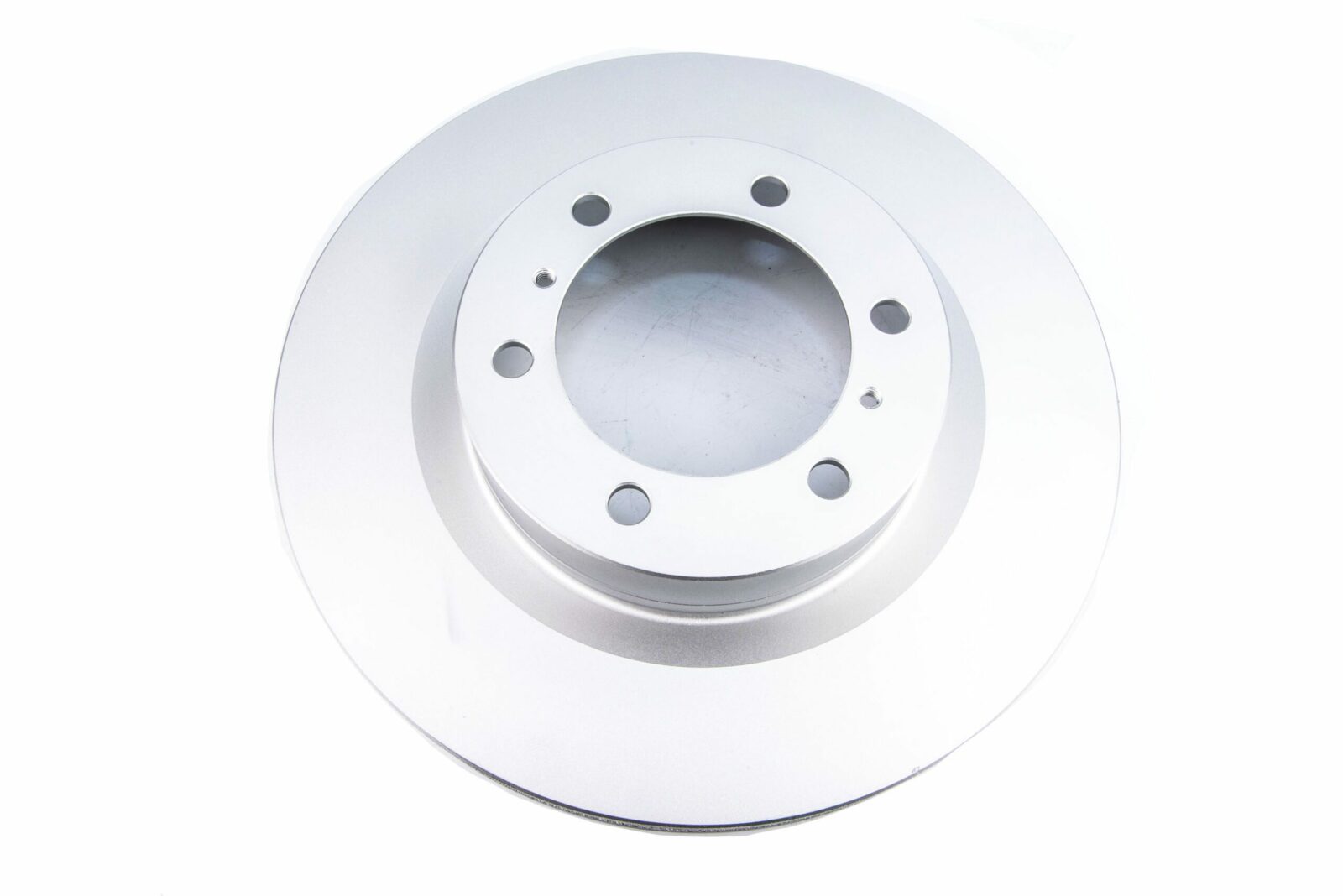

DBA DBA2736E Street Series En-Shield Front Brake Rotor 338mm

The DBA DBA2736E Street Series En-Shield brake rotor is a premium OE replacement front disc rotor designed for daily drivers, light commercial vehicles, and SUV applications. This 338mm rotor features DBA's innovative En-Shield corrosion protection technology and is manufactured from DBA's proprietary XG-150 high carbon cast iron alloy for superior performance and durability.

En-Shield Corrosion Protection:

• Zinc/aluminum water-based coating baked onto entire rotor surface for complete rust and corrosion resistance
• Chromium-free, non-toxic, environmentally compliant coating process
• Ready to install out of the box - no cleaning required before fitment
• Coating self-removes during braking on friction surfaces without affecting pad performance

Advanced Engineering Features:

• Patented Kangaroo Paw ventilation design provides up to 20% better heat dissipation than standard vane rotors
• Cubic Boron Nitride (CBN) machine-turned finish minimizes disc thickness variation and premature wear
• Centre-split core castings for increased heat transfer and thermal efficiency
• Precision cast and machined to ensure perfect fit and consistent stopping power

Specifications:

• Diameter: 338mm (13.3 inches)
• Thickness: 32mm
• Height: 68.5mm
• Centre Hole Diameter: 108mm
• Minimum Thickness: 29mm
• Wheel/Stud Holes: 6
• Axle Position: Front
• Quantity Required Per Vehicle: 2

Built with over 40 years of DBA braking expertise, this Street Series rotor meets or exceeds OE standards and provides reliable, fade-resistant braking performance throughout its service life.
