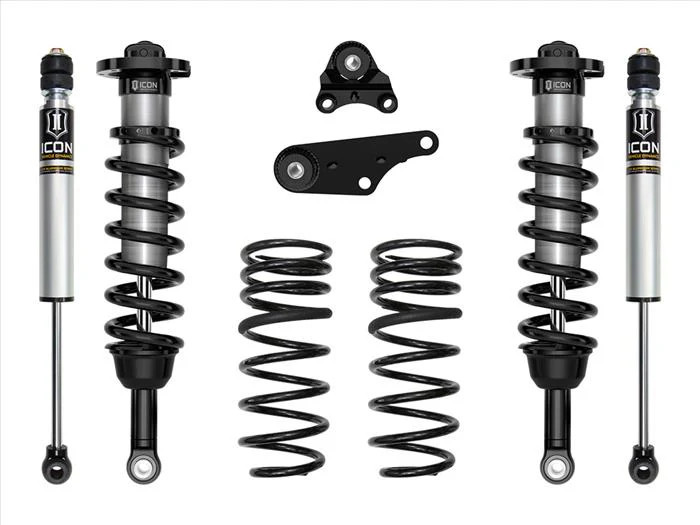

ICON Vehicle Dynamics 58691 2.5 Series Front Coilover Kit for 2024+ Toyota Land Cruiser 250

The ICON Vehicle Dynamics 2.5 Series V.S. (Vehicle Specific) internal reservoir coilover kit delivers exceptional suspension performance for the 2024+ Toyota Land Cruiser 250 Series. Engineered specifically for maximum wheel travel and superior damping control, these height-adjustable coilovers transform both on-road comfort and off-road capability.

Key Features:

• Height-adjustable design provides 1.25-3 inches of lift over stock suspension
• 2.5-inch diameter shock bodies with internal reservoirs for consistent thermal performance
• Vehicle-specific valving tuned for optimal damping and control
• ICON-engineered coil springs designed for superior ride quality through full range of travel
• Corrosion-resistant CAD plated shock bodies with 7/8-inch diameter shafts
• 6061 aircraft-grade aluminum CNC machined components
• FK Rod End bearings for extended longevity and minimal deflection
• Fully serviceable design allows for rebuilds and revalving
• Bolt-in installation into OEM shock locations

Performance Benefits:

• Increased piston surface area over stock components delivers superior shock damping
• Vehicle-specific shock length paired with ICON front differential drop (sold separately) maximizes available wheel travel and prevents CV bind
• Allows use of larger, more aggressive wheel and tire combinations (33-inch x 11.50-inch recommended)
• Superior low-speed control reduces body roll and increases on-road stability
• Enhanced off-road performance with exceptional bottoming resistance

When paired with ICON 2.0 or 2.5 Aluminum Series rear shocks, vehicle control is balanced front to rear for the best overall driving experience. This front coilover kit is a component of ICON's complete Stage 1, Stage 2, and Stage 3 suspension systems for the Land Cruiser 250 Series.

Important Notes:

• Requires front differential drop kit (ICON 55160) for 4WD models to maximize wheel travel
• ICON Delta Joint Pro upper control arms recommended to maintain proper alignment above 2 inches of lift
• Lift height ranges are for stock-equipped vehicles; added weight from accessories will alter lift range
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after installation
• Shocks are fully serviceable and rebuildable
