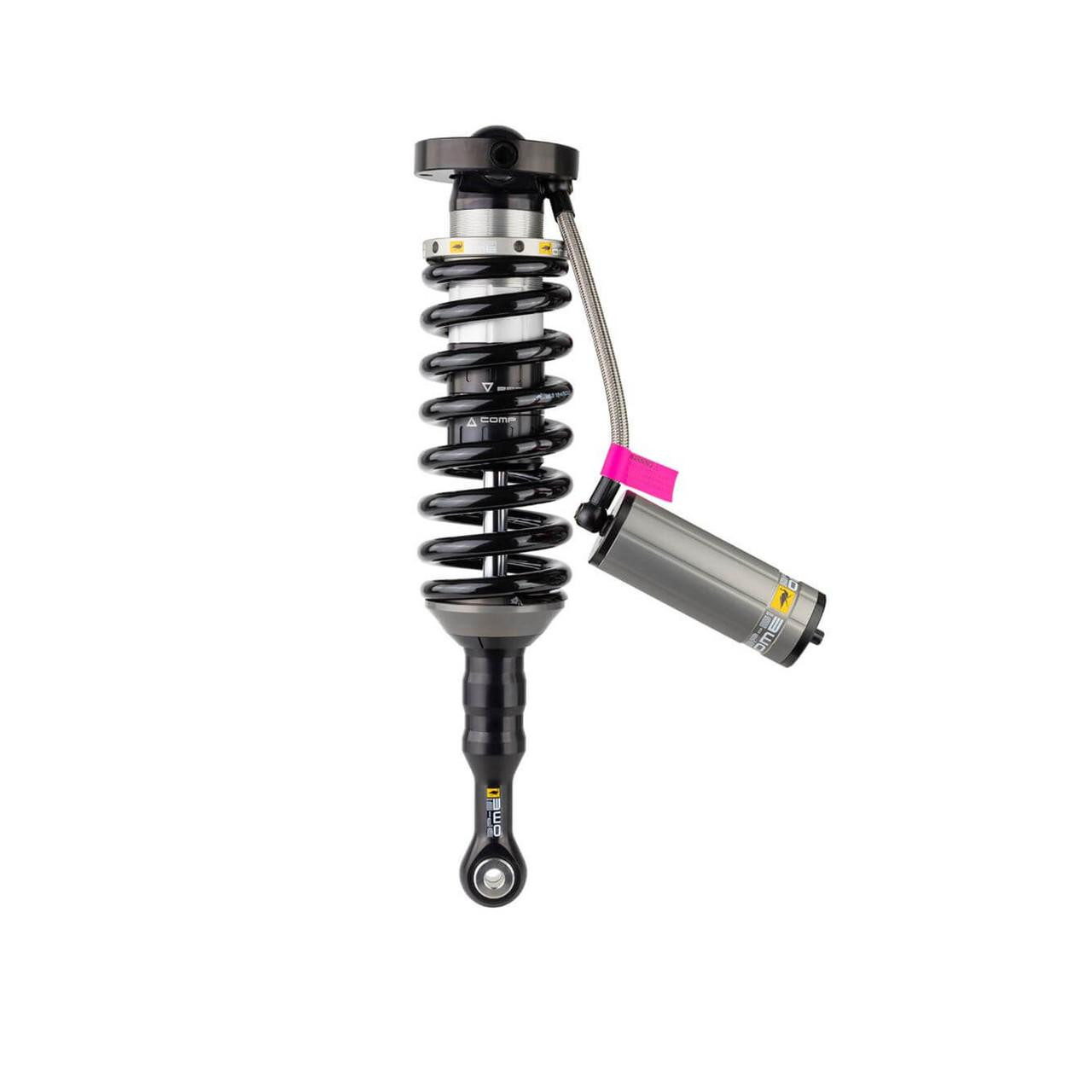

The ARB BP5190026L is a high-performance BP-51 coilover strut designed for the front left position. Part of ARB's Old Man Emu suspension lineup, this coilover brings race-proven technology to both off-road and on-road applications with its revolutionary internal bypass design.
Advanced Bypass Technology:
The BP-51 features a 51mm diameter bore with an internal bypass system that provides position-sensitive damping. Unlike conventional shock absorbers that only generate damping through the piston, the BP-51 creates an alternative fluid path through bypass passages. This innovative design delivers a comfortable, compliant ride during normal driving while providing increased control over challenging terrain.
Key Features:
- Independent rebound and compression adjustment for customized ride tuning
- 10 levels of compression and 10 levels of rebound adjustment
- Aircraft-grade 6061 anodized aluminum body with Type III hard anodized finish for superior heat dissipation and corrosion resistance
- High-quality X5K-grade steel coil springs engineered for application-specific performance
- Adjustable spring preload to compensate for added accessory weight
- Polyethylene shaft guard protects against off-road debris
- Remote reservoir design for increased oil volume and improved damping performance
- Vehicle-specific design utilizing existing mounting locations for easy installation
Performance Benefits:
Position-sensitive damping provides comfort at ride height with increased control as the suspension approaches full travel. The bypass system generates greater damping at each end of the stroke, slowing the piston as it approaches full compression and extension to prevent harsh bottoming and allow larger bumps to be absorbed more effectively.
Designed, developed, tested, and manufactured entirely in-house by ARB's Old Man Emu team in Australia, the BP-51 undergoes extensive lab, real-world, and destructive testing to ensure reliability and performance meet ARB's demanding standards. Backed by a 3-year warranty and fully rebuildable for long-term serviceability.
