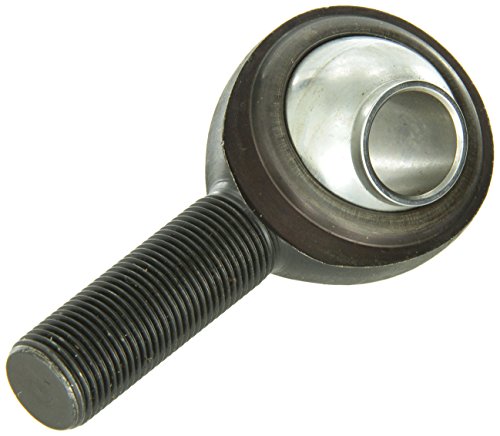

QA1 PCYML12T Chromoly Steel Male Rod End High Misalignment PTFE Lined

Part of: QA1 Chromoly Steel Male Rod End

Other options in this family: QA1 Precision Products PCYML8T QA1 Precision Products PCYMR6T QA1 Precision Products PCYMR12T QA1 Precision Products PCYMR10-12T QA1 Precision Products PCYML6T

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

PCYML12T
15 reviews
Sale Price

$22.04

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 Precision Products PCYML12T is a high-performance chromoly steel male rod end from the PCYM-T Series, engineered for demanding applications requiring exceptional misalignment capability. This 2-piece economy-style rod end features a mohawk design with just two components—the ball and body—where the body is swaged around the ball to lock it securely in place.

Key Features:

  • Industry-leading high misalignment capacity for extreme articulation requirements
  • PTFE liner for self-lubrication and reduced maintenance
  • Superior load ratings compared to carbon steel rod ends
  • Black oxide coated chromoly steel body for corrosion resistance
  • Precision ground, hard chrome plated ball for durability
  • Heat-treated components for enhanced strength

Ball Construction:

  • 52100 bearing steel material
  • Heat treated for maximum strength
  • Hard chrome plated surface
  • Precision ground to tight tolerances

Body Construction:

  • Heat-treated chromoly steel
  • Black oxide coating for corrosion protection
  • PTFE lined bearing surface
  • Male threaded shank

The PCYM-T Series represents an ideal choice for suspension linkages, steering components, and other high-articulation applications where maximum misalignment capability is critical. The PTFE liner eliminates the need for constant lubrication while providing smooth operation and extended service life.

Products specifications

A (+/-0.015)

3.375

Approx Bearing Weight

0.79

B (+0.0015/-0.0005)

0.75

Ball Dia Ref

1.5

C (+0.062/-0.031)

2

D Ref

2

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

61

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

1.500 in.

Rod End Centerline Length

3.375 in.

Rod End Construction

2-piece

Rod End Finish

Black oxide

Rod End Head Bore Size

0.750 in.

Rod End Head Diameter

1.750 in.

Rod End Head Width

1.500 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

61 degrees

Rod End Static Load Capacity

29,127 lbs.

Rod End Static Load Capacity (lbs)

29,127 lbs.

Rod End Style

Teflon® lined

Rod End Thread Size

3/4-16 LH in.

Thread Length

2.000 in.

Thread Type

Left Hand

Thread UNF-3A

3/4 -16

UTL Radical Static

27010

W (+/-0.005)

1.5

Title

QA1 Suspension Rod End Bearing PCYML12T
