June Sale: $70.52
In Stock
May ship from manufacturer
Free Shipping
Part number: HMR16
Competitor Pricing
Product Details
QA1 Precision Products HMR16 in our Rod Ends Department
Products specifications
A (+/-0.015) 4.125
Approx Bearing Weight 2.41
B (+0.0015/-0.0005) 1
Ball Dia Ref 1.875
C (+0.062/-0.031) 2.125
D (+/-0.010) 2.75
Grease Fitting No
Heat-Treated Yes
Jam Nut Included No
Misalign Angle 17
Quantity Sold individually.
Rod End Attachment Male threads
Rod End Ball Width 1.375 in.
Rod End Centerline Length 4.125 in.
Rod End Construction 3-piece
Rod End Finish Zinc plated
Rod End Head Bore Size 1.000 in.
Rod End Head Diameter 2.750 in.
Rod End Head Width 1.375 in.
Rod End Material Chromemoly
Rod End Misalign Angle (degrees) 17 degrees
Rod End Static Load Capacity 76,200 lbs.
Rod End Static Load Capacity (lbs) 76,200 lbs.
Rod End Style Metal to metal
Rod End Thread Size 1 1/4-12 RH in.
T (+/-0.005) 1
Thread Length 2.125 in.
Thread Type Right Hand
Thread UNF-3A 1-1/4 -12
UTL Radical Static 76200
W (+0.000/-0.005) 1.375

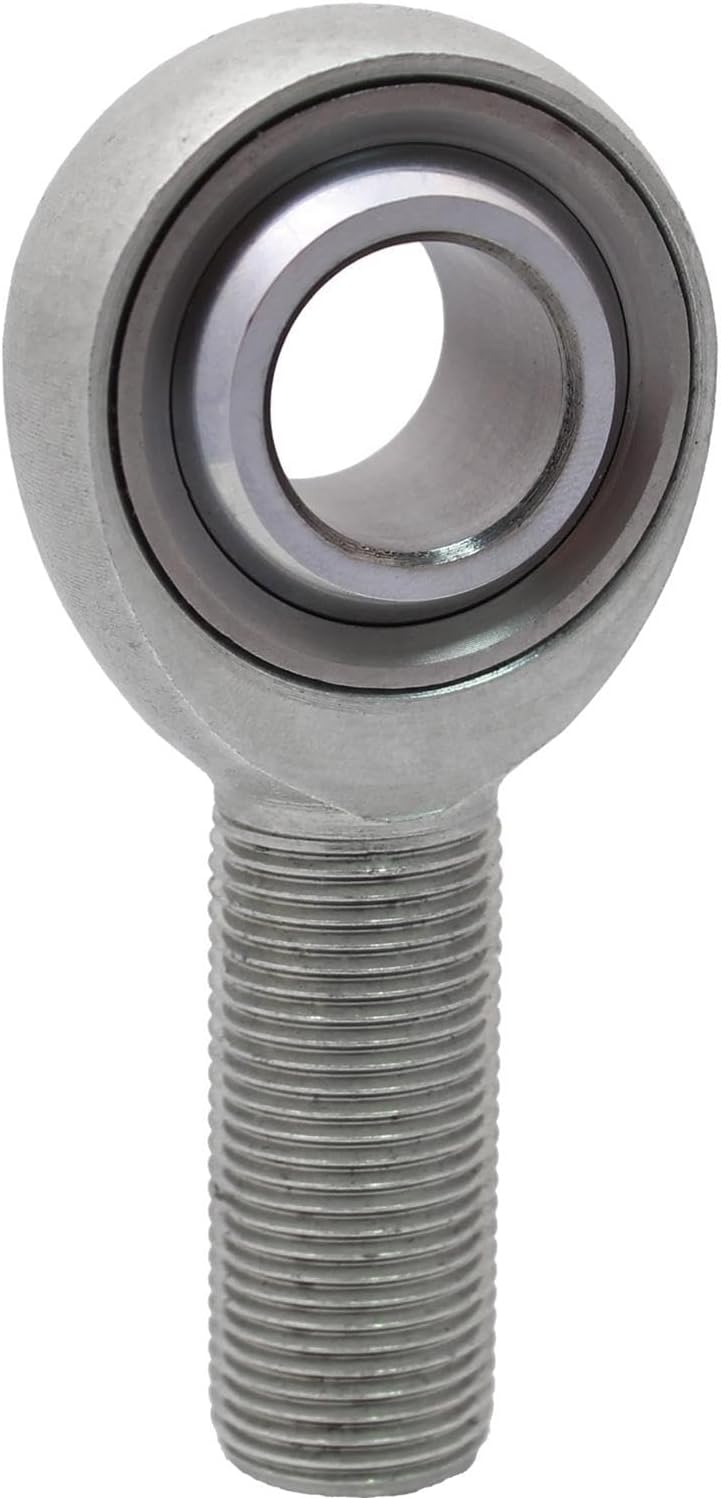

QA1 Precision Products HMR16 HM Series Alloy Steel Male Rod End

In QA1?s 3-Piece rod end, the ball is pressed into a sleeve that is swaged around the ball. After swaging, the unit is called the insert. The O.D. of the insert is then turned down and faced off to square up the sides for staking into a rod end body. This unit offers better ball to race conformity for together tolerances.

This style rod end is good in applications that required tighter tolerances.

KM Series Carbon Steel Male
The traditional three-piece carbon steel rod end is defined as QA1?s KM Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends. Grease fittings and stud configurations are also available.

BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

RACE

  • Alloy Steel
  • Corrosion and Wear Resistant

BODY

  • Carbon Steel (Alloy Steel ? Mfr.?s Option)
  • Protective Coated for Corrosion Resistance

KM-T Series Carbon Steel Male
Add a PTFE liner to the traditional three-piece carbon steel male rod end and you have QA1?s KM-T Carbon Steel Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends. Stud configurations are also available.

BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

RACE

  • Alloy Steel
  • Corrosion and Wear Resistant
  • PTFE Lined

BODY

  • Carbon Steel (Alloy Steel ? Mfr.?s Option)
  • Protective Coated for Corrosion Resistance

HM Series Alloy Steel Male
QA1?s HM Series rod ends are a traditional three-piece chromoly steel male rod end. These precision rod ends are heat treated, are available in right and left hand threads and in metric and inch dimensions. Grease fittings and stud configurations are also available.

BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

RACE

  • Chromoly Heat Treated Steel
  • Corrosion and Wear Resistant

BODY

  • Chromoly Steel
  • Heat Treated
  • Protective Coated for Corrosion Resistance

HM-T Series Alloy Steel Male
With a PTFE liner added to the traditional three-piece chromoly steel male rod end, QA1?s HM-T Series rod ends are ideal for a variety of applications. True precision rod ends, the HM-T Series are available in right and left hand threads and in metric and inch dimensions. Stud configurations are also available.

BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

RACE

  • Low Carbon Steel
  • Corrosion and Wear Resistant
  • PTFE Lined

BODY

  • Chromoly Steel
  • Heat Treated
  • Protective Coated for Corrosion Resistance

HF-T Series Alloy Steel Female
With a PTFE liner added to the traditional three-piece alloy steel female rod end, QA1?s HF-T Series rod ends are ideal for a variety of applications. True precision rod ends, the HF-T Series are available in right and left hand threads and in metric and inch dimensions. Stud configurations are also available.

BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

RACE

  • Low Carbon Steel
  • Corrosion and Wear Resistant
  • PTFE Lined

BODY

  • Chromoly Steel
  • Heat Treated
  • Protective Coated for Corrosion Resistance

KF Series Carbon Steel Female
The traditional three-piece carbon steel female rod end is defined as QA1?s KF Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends. Grease fittings and stud configurations are also available.

BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

RACE

  • Alloy Steel
  • Corrosion and Wear Resistant

BODY

  • Carbon Steel (Alloy Steel ? Mfr.?s Option)
  • Protective Coated for Corrosion Resistance

KF-T Series Carbon Steel Female
Add a PTFE liner to the traditional three-piece carbon steel female rod end and you have QA1?s KF-T Carbon Steel Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends. Stud configurations are available by calling 800.721.7761.

BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

RACE

  • Alloy Steel
  • Corrosion and Wear Resistant
  • PTFE Lined

BODY

  • Carbon Steel (Alloy Steel ? Mfr.?s Option)
  • Protective Coated for Corrosion Resistance

HF Series Alloy Steel Female
QA1?s HF Series female rod ends are a traditional three-piece chromoly steel rod end. These precision rod ends are heat treated, are available in right and left hand threads and in metric and inch dimensions. Grease fittings and stud configurations are also available.

BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

RACE

  • Chromoly Heat Treated Steel
  • Corrosion and Wear Resistant

BODY

  • Chromoly Steel
  • Heat Treated
  • Protective Coated for Corrosion Resistance
