Turbosmart TS-0555-8022 GenV PowerGate 60 Motorsport External Wastegate 22 PSI

Manufacturer

Part Number

TS-0555-8022
Black Friday Price

$535.49

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

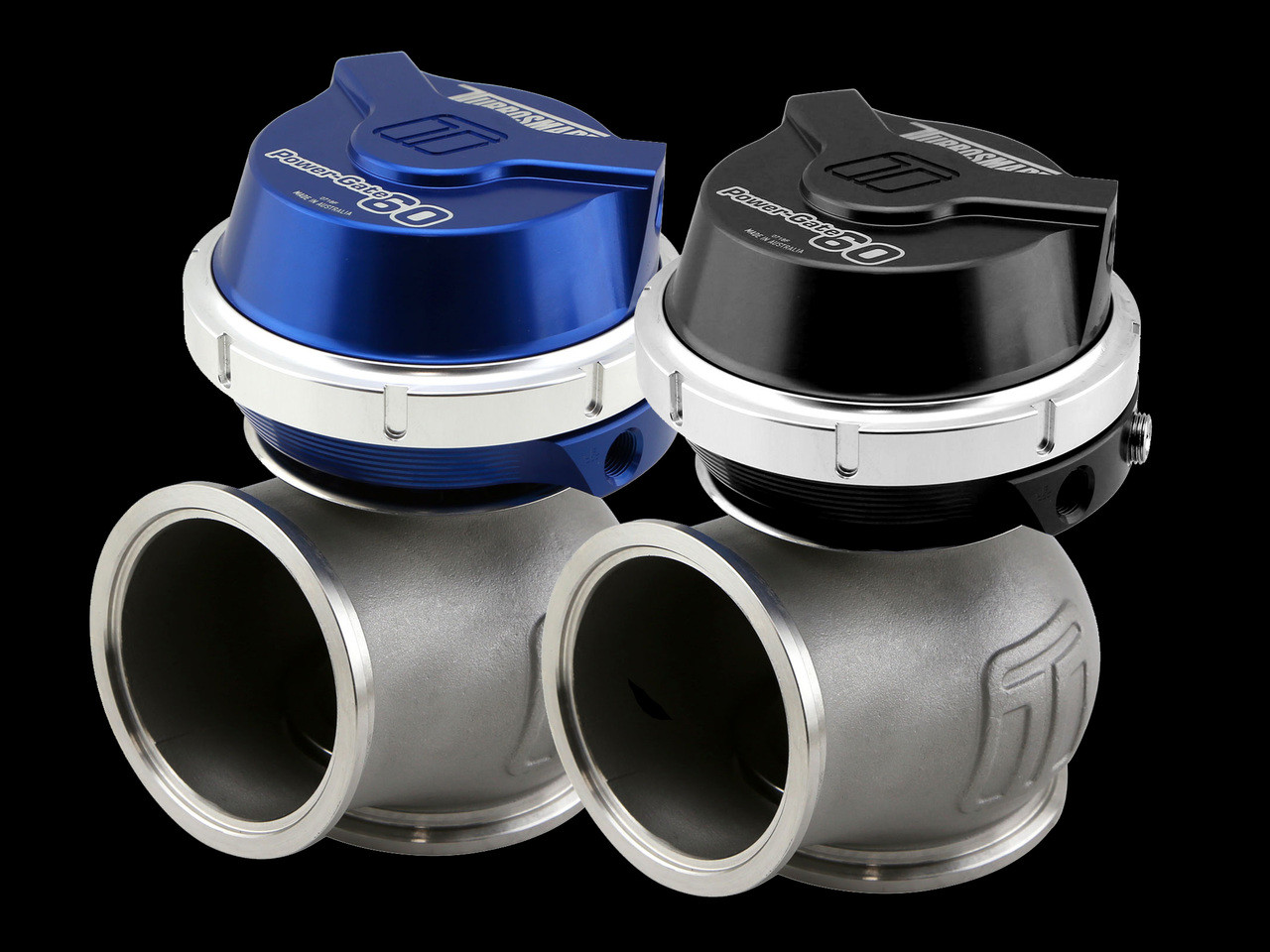

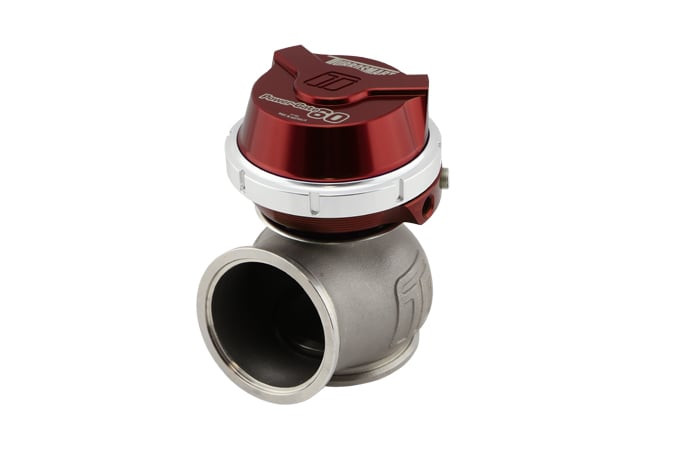

The Turbosmart TS-0555-8022 GenV PowerGate 60 Motorsport External Wastegate is a 60mm compressed-gas actuator variant of Turbosmart's flagship GenV external wastegate platform — engineered for high-demand motorsport applications requiring maximum reliability and precise boost control. Built on the class-leading GenV PowerGate 60 architecture, this Motorsport (CG) model replaces the pneumatic diaphragm actuator with a compressed gas-only design, delivering exceptional fatigue resistance and consistent actuation at elevated boost and drive pressures.

The GenV platform was a complete ground-up redesign, introducing a fully modular architecture that allows actuators to be swapped and indexed across the range. The Motorsport actuator housing can be clocked 360 degrees independently from the weld flanges, allowing for flexible installation even in tight engine bays.

Key Features:

  • 60mm valve diameter — the largest in the Turbosmart GenV range and one of the highest-flowing poppet-style external wastegates available
  • Motorsport compressed gas (CG) actuator — designed for extreme-duty competition use where diaphragm actuators are not suitable
  • 22 PSI base spring pressure — ideal for high-boost applications
  • CFD-optimized flow path validated in-house for maximum exhaust flow and thermal management
  • Infinitely clockable actuator housing — rotates independently from the body and weld flanges for flexible hose routing
  • Collar-locking system with variable actuator cap and base for 360-degree reference port orientation
  • Strap-type V-band clamps for secure, leak-free connections at inlet and outlet
  • Optional liquid cooling provision via integrated ports for extreme thermal environments
  • 1/8″ NPT reference ports for broad fitting compatibility
  • Fully serviceable and upgradeable modular construction with components rated for over one million cycles
  • Direct fit upgrade for all 4th-generation Turbosmart external wastegates

What's Included:

  • GenV PowerGate 60 Motorsport wastegate unit
  • Locking collar tool
  • SS316 valve seat
  • Strap-type V-band clamps (inlet and outlet)
  • Inlet and outlet weld flanges
  • Hose tail and blank fitting kit
  • Turbosmart decal

Intended for closed-course and sanctioned competition use. Not legal for sale or use on emissions-controlled vehicles in California or other emissions-regulated jurisdictions.
