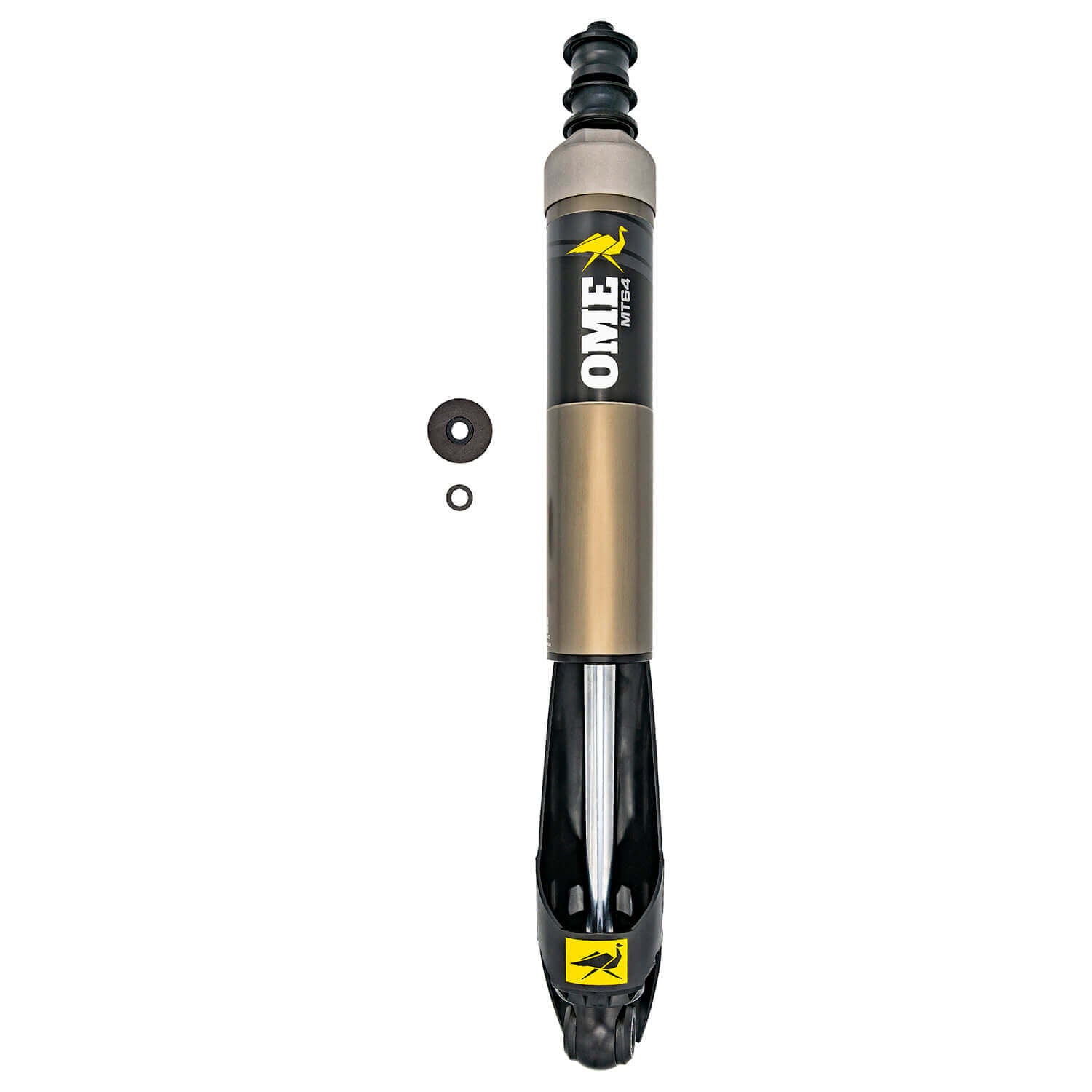

ARB MT64901019 Old Man Emu MT64 Front Shock Strut Land Cruiser 200

The ARB Old Man Emu MT64901019 is a high-performance front shock absorber designed specifically for the Toyota Land Cruiser 200 Series. This monotube shock represents a breakthrough in mid-tier suspension technology, engineered to handle the extreme demands of overlanding and heavy-duty off-road use.

Advanced Monotube Design:

• Massive 2.8-inch (64mm) body diameter provides increased oil capacity for superior heat dissipation and fade resistance
• 64mm high-flow digressive piston—larger than most competition race shocks which use 60mm pistons
• 2.5-inch internal bore with 22.5mm (7/8-inch) piston rod shaft for exceptional stability and precise tuning
• Internal floating piston (IFP) design separates oil and nitrogen gas for consistent performance

Premium Construction:

• Aerospace-grade 6061 aluminum body dissipates heat fifteen times faster than steel while providing superior protection against stone damage
• Type III hard anodized finish in gray for maximum durability
• Forged body cap and rod ends reduce weight while maintaining exceptional strength
• Maintenance-free design with advanced sealing system eliminates the need for regular servicing

Adjustable Height System:

• Six-position adjustable spring seat with 5mm increments allows 0-3 inches of lift (application specific)
• Configurable spring perch accommodates varying accessory weights without changing coil springs
• Multiple snap-ring grooves provide precise height adjustment capability

Engineered for Overlanding:

• Vehicle-specific damping tuned for Land Cruiser 200 Series applications
• Hydraulic top-out zone provides cushioning at full extension to prevent harshness
• Designed to handle extreme added weight from roof racks, campers, storage systems, and recovery equipment
• Digressive valving instantly reacts to changing surface conditions for optimal control
• Natural rubber bushings provide superior noise, vibration, and harshness (NVH) compliance

Performance Benefits:

• Smooth, controlled ride for everyday driving and long-distance travel reduces driver and passenger fatigue
• Superior load-handling capabilities for vehicles with dynamic shifting loads
• Direct replacement for stock suspension—compatible with factory and aftermarket lift configurations
• Designed and manufactured in Australia to handle extreme off-road conditions

The MT64 fills the gap between Old Man Emu's entry-level Nitrocharger series and the premium adjustable BP-51 bypass shocks, offering exceptional performance without the complexity of external reservoirs or manual adjustment. Backed by ARB's 36-month/37,000-mile limited warranty, this shock is built for travelers who demand reliability and comfort both on and off the road.
