Firestone 2863 Ride-Rite All-In-One Analog Air Helper Spring Kit

The Firestone 2863 Ride-Rite All-In-One Analog Kit is a complete air suspension solution designed for Ford F-250/F-350 Super Duty trucks. This comprehensive kit combines Ride-Rite air helper springs with an integrated analog air compressor system, providing everything needed to improve load support, maintain level ride height, and enhance towing and hauling performance in one convenient package.

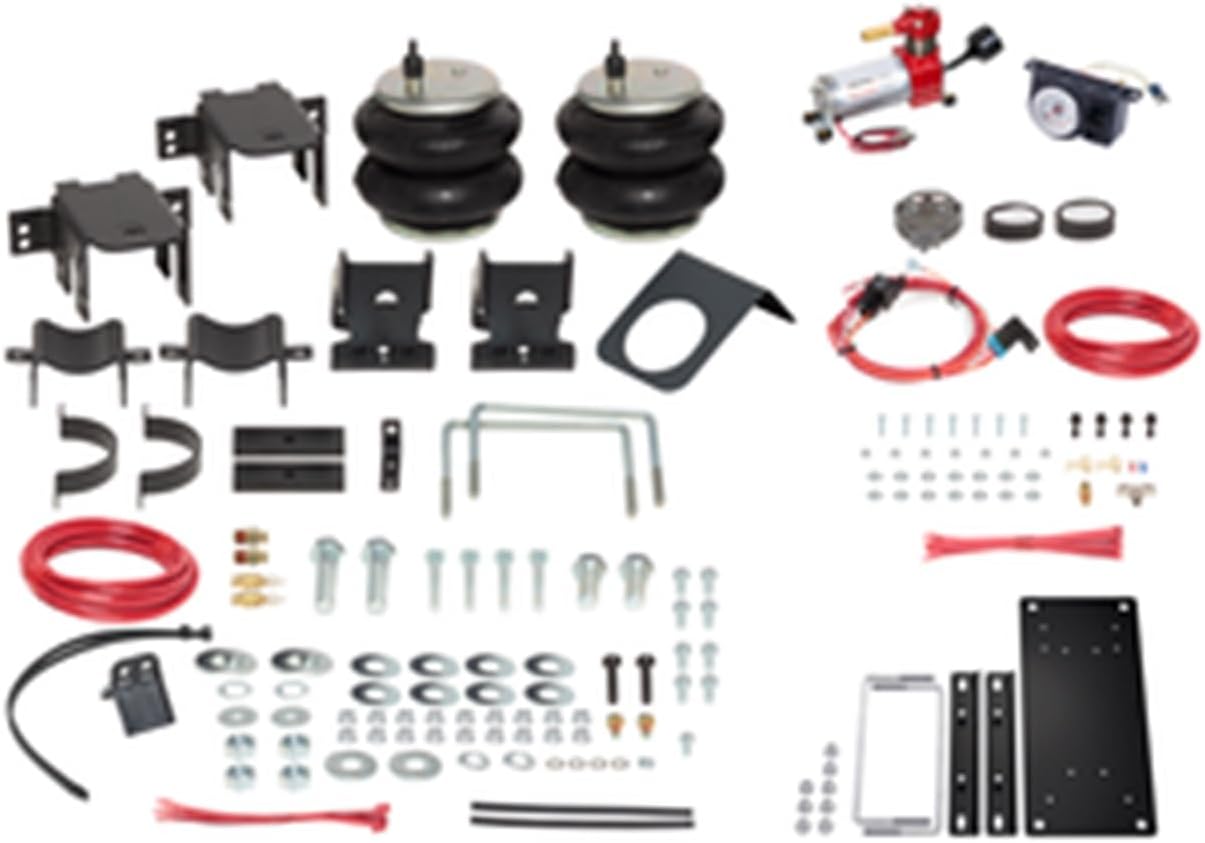

Complete System Includes:

• Two Firestone Ride-Rite air helper springs (Part 2550) with 5,000 lbs load carrying capacity
• Air Command Level Command analog compressor system (Part 2097) with backlit gauge
• No-drill mounting plate for easier compressor and ECU installation
• Upper and lower mounting brackets with axle clamp bracket
• Heat shield, air line tubing, inflation valves, and air filter
• Relay harness, air control panel, and all necessary fittings and hardware

Key Features:

• Standard duty air compressor with 100 PSI maximum pressure rating
• 17-second fill rate from 0-30 PSI with 0.32 CFM at 100 PSI
• 9% duty cycle with 13 amp maximum draw
• Single analog gauge for easy monitoring of both air springs
• Adjustable air pressure range: 5 PSI minimum to 100 PSI maximum
• No-drill installation compatible with in-bed hitches
• Original equipment grade electronics for durability

The Ride-Rite air springs mount between the vehicle frame and suspension to reduce bottoming out, improve vehicle stability, and enhance braking and handling when hauling heavy loads or towing. The integrated compressor system allows you to adjust air pressure on-demand from inside your truck, adapting to changing load and road conditions. This all-in-one kit eliminates the guesswork of matching components and provides better value than purchasing parts separately.
