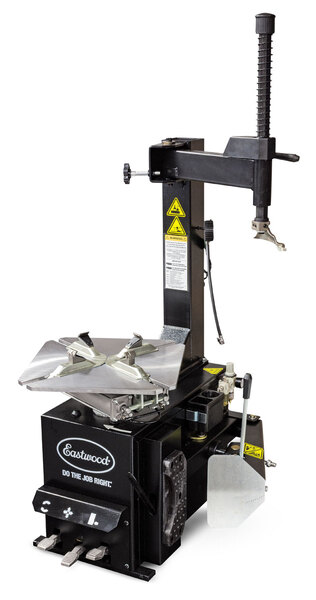

Eastwood Company 31638 Swing Arm Tire Changer Machine with Pneumatic Operation

The Eastwood Swing Arm Tire Changer is a professional-grade tire changing machine designed for home enthusiasts, race shops, and small automotive businesses. This machine offers the ability to quickly and easily mount and dismount tires on most any steel or alloy wheels without damage, featuring the same pneumatic functions as other professional machines.

Key Specifications:

• Rim diameter range: 10" to 18" (external clamping), 12" to 21" (internal clamping)
• Maximum rim width: 16 inches
• Maximum tire diameter: 45 inches
• Turntable rotation speed: 6 RPM
• Overall footprint dimensions: 70" H x 43" W x 37" D
• Power requirements: 120 VAC, 60 Hz, 10 amp
• Air supply operational range: 115 to 145 PSI (8 to 10 Bar)

What's Included:

• Main tire machine base unit and vertical tower
• 20 mount/dismount shoe "Duckhead" replaceable plastic glides
• 20 mount/dismount shoe "Ducktail" replaceable plastic glides
• Coiled air hose, gauge/fill gun, and male coupler
• Tire iron and 4 rim protectors
• Mounting hardware including M12 nuts, washers, slide shaft spring, and plastic cover

Important Note: This machine has a tire inflator only; bead seating jets are not included on this model. The machine is compatible with most household or workshop electrical outlets and requires a compressed air supply for pneumatic operation.
