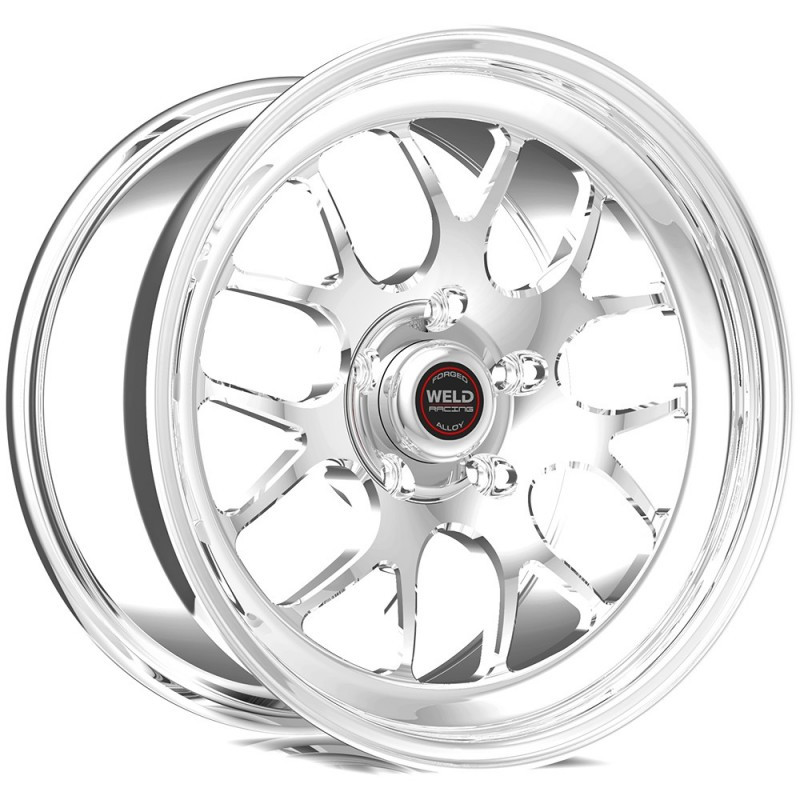

Weld Racing Wheels 77HP7050B22A RT-S S77 Polished 17x5 Front Wheel High Pad 5x4.75

The Weld Racing RT-S S77 wheel brings championship-proven racing technology to the street with a distinctive split 7-spoke mesh design. This 17x5 inch polished front wheel features a high pad configuration specifically engineered for modern high-performance brake systems with large opposed-piston calipers found on Corvettes, Camaros, and other performance vehicles.

Construction and Engineering:

• 3-piece modular design with forged billet aluminum center and cold-forged rim shells
• Unique welded assembly process for maximum strength and application flexibility
• Manufactured from forging-grade aluminum alloys for superior durability
• High pad mounting configuration provides clearance for Brembo, Baer, Wilwood, and factory performance brake packages
• Tested with finite element analysis and destructive testing to ensure safety
• Proudly made in Kansas City, Missouri USA since 1967

Specifications:

• Size: 17 inches diameter x 5 inches width
• Bolt pattern: 5x4.75 inches (5x120.65mm)
• Backspacing: 2.2 inches
• Offset: -20mm
• Finish: Polished center with polished shell
• Weight capacity: 1,580 lbs per wheel
• Approximate weight: 17 lbs

Important Notes:

• Requires 60-degree conical seat lug nuts (not included)
• Center cap and valve stem included
• Sold individually
• Will not accept 5/8 inch drive studs
• Designed for front axle use on performance applications
• 3-year structural warranty from Weld Racing

The RT-S S77 series represents the perfect balance of lightweight construction and strength for street/strip applications, featuring the classic Weld Racing aesthetic that has dominated professional drag racing for over five decades.
