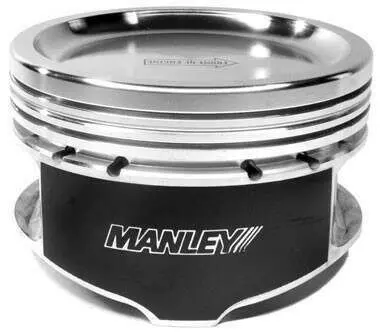

Manley 648200C-8 Platinum Series Piston Set Toyota 5.7L 3UR-FE 94.0mm Bore -24cc Dish

The Manley 648200C-8 is a premium Platinum Series forged piston set engineered for Toyota 5.7L 3UR-FE engines. These pistons feature 2618 alloy forgings with proven cam and barrel skirt profiles, tool steel wrist pins, and moly skirt coatings, delivering the strength and durability demanded by performance engine builders.

Key Features:

• 94.0mm bore diameter with -24cc dish design for optimized compression ratio
• Domestic 2618 alloy forgings ensuring superior strength and performance
• Premium Chrome Moly wrist pins included as standard
• Strict standards for piston ring lands and grooves for enhanced ring seal and more power
• Unique fixturing allows for skirt turning and ring groove machining in a single operation, ensuring ultimate ring groove to skirt squareness
• 1.328 inch compression height
• Includes wrist pins and locks

Manley's Platinum Series pistons are trusted by professional engine builders and tuners worldwide for high-performance and forced induction applications. These pistons are designed for Toyota Tundra, Sequoia, Land Cruiser 200 Series, and Lexus LX 570 equipped with the 3UR-FE engine.
