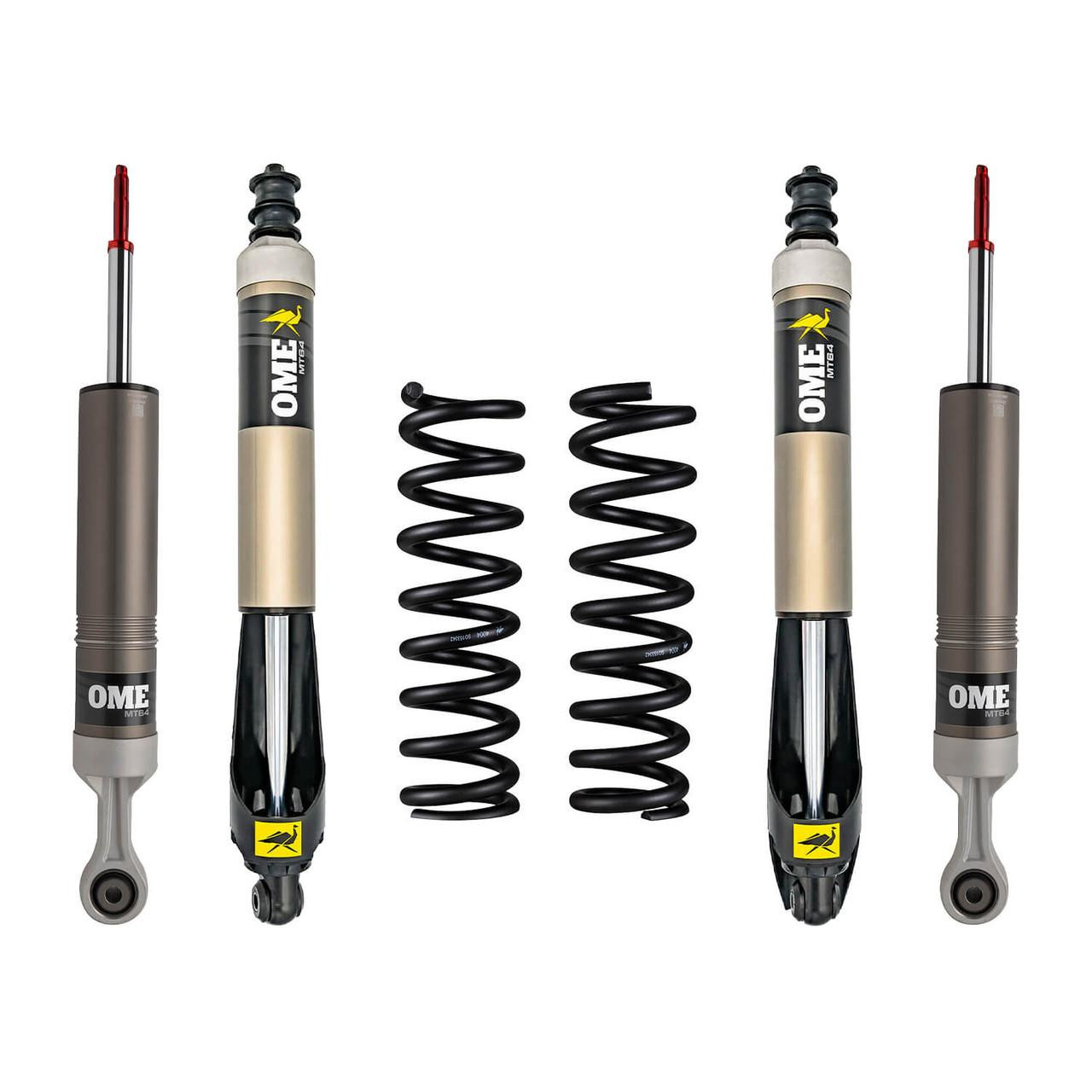

The ARB 1107K is an Old Man Emu MT64 suspension lift kit engineered specifically for 2016-2023 Toyota Tacoma 4WD models. This complete front suspension system provides 2 inches of lift and is tuned for vehicles with 220-330 lbs of front-end weight, making it ideal for overlanders and adventure builds with aftermarket bumpers, winches, and other accessories.
MT64 Monotube Technology:
The MT64 represents ARB's mid-tier suspension offering, filling the gap between the entry-level Nitrocharger and premium BP-51 systems. Featuring a massive 64mm (2.5-inch) internal bore and 2.8-inch shock body diameter, these monotube shocks with internal floating pistons deliver exceptional oil capacity for superior heat dissipation and damping control. The large bore allows for bigger piston and shim stacks, resulting in refined ride quality and consistent performance under load.
Premium Construction Features:
- Aerospace-grade 6061 aluminum shock bodies with military-spec hard anodized finish for superior corrosion resistance
- 22.5mm forged aluminum piston rod for exceptional stability and strength
- Adjustable spring seat with 6 positions in 5mm increments to accommodate different weight configurations
- Hydraulic end zone top-out provides cushioned padding at full shock extension
- Integrated wiper seal bump cap prevents dust and contaminant ingress
- High-density polyethylene replaceable shaft guard protects against stone damage
- Natural rubber bushings for noise-free operation and superior NVH compliance
Performance and Versatility:
Designed for the weekend warrior and overland enthusiast who demands both daily-driver comfort and off-road capability, the MT64 system delivers controlled, balanced ride quality on pavement while providing the articulation and damping needed for challenging trails. The system is engineered to handle heavy loads and long-distance travel without the complexity of remote reservoirs, making it a low-maintenance solution for adventure-ready builds.
This kit is backed by ARB's 3-year warranty and represents decades of Old Man Emu suspension engineering expertise. Professional installation recommended, with approximately 6 hours installation time required.
