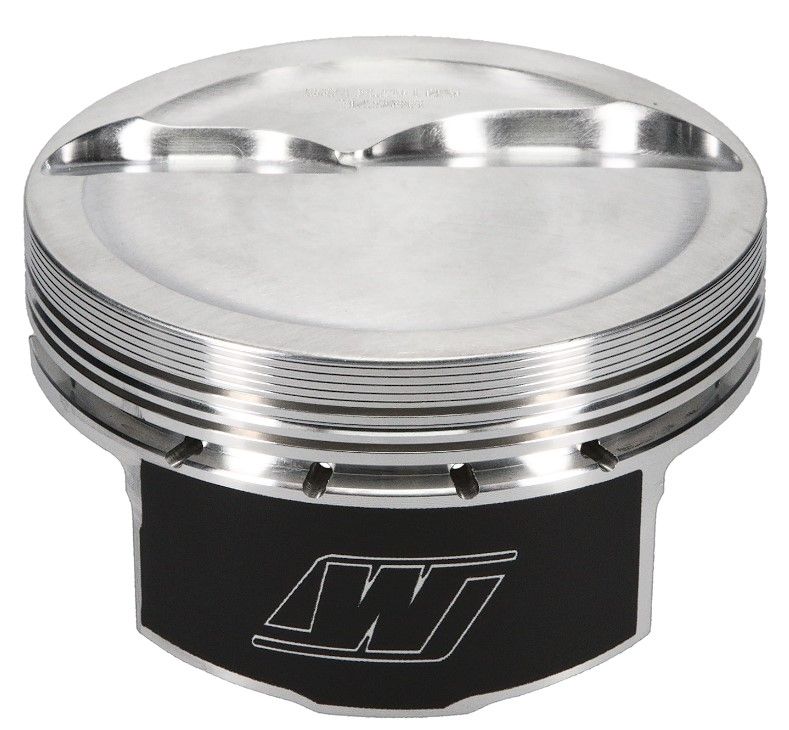

Wiseco RED0101XS RED Series Ford Small Block Forged Piston Set Dish Bore - 22cc 4.000

Manufacturer

Part Number

RED0101XS
Black Friday Price

$949.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

RED stands for Race Engineered Design — a platform built to deliver the strength, durability, and precision that serious performance and racing applications demand.

These pistons feature a -22cc dish crown and are sized at a 4.000 in. bore with a 1.280 in. compression height, yielding approximately 9.9:1 compression ratio with a 58cc combustion chamber. Forged from 2618 high-strength aluminum alloy, they provide the tensile toughness required for power-adder and high-load racing environments where cast pistons simply cannot compete.

Key Features:

  • -22cc dish piston crown — 4.000 in. bore, 1.280 in. compression height
  • 2618 high-strength forged aluminum alloy for maximum durability under extreme power
  • ArmorGlide skirt coating reduces operating friction, noise, and cylinder wear
  • Horizontal slot pin oiling maintains optimal wrist pin and small-end lubrication
  • Anti-detonation and pressure seal grooves for consistent ring seal and power
  • 0.927 in. wrist pin diameter with 0.150 in. wall pins and wire locks included
  • Premium GFX ring pack included — 1/16 in., 1/16 in., 3/16 in. configuration
  • Rated for 1,000+ HP applications including drag racing and circle track

The RED Series is Wiseco's purpose-built solution for domestic V8 platforms where maximum performance and value intersect. Whether you're building a stroker for the strip or a circle track engine that needs to last, the RED0101XS delivers race-proven reliability backed by Wiseco's decades of forging expertise.

Products specifications

Oil Ring Tension

Standard

Piston Quantity

8

Second Ring Material

Ductile iron

Stroke

4.000

Top Ring Material

Stainless steel

Wrist Pin Retainer Material

Chrome silicon

Wrist Pin Style

Floating

Make

Ford

Piston Material

2618

Rod Length

6.200

Wrist Pin Outer Diameter

0.927

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.000

Oil Ring Thickness

3.00

Third Ring Material

Stainless Steel

Compression Height

1.280

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine

Small Block

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Make - Web

Ford

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Piston Volume

-22.00

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Engine - Web

Small Block

Product Series

RED Series

Wrist Pin Quantity

8

Wrist Pin Retainer Quantity

16

Ring Quantity

8

Ring Set Part Number

4000GFX

Wrist Pin Part Number

S736

Wrist Pin Retainer Part Number

W5595

Wrist Pin Retainer Thickness

0.072

Cylinder Head

20? Inline Valve

Title

RED Series - Ford, Small Block, 4.000 in. Bore, Piston Set of 8

Title - Web

RED Series Piston Set of 8 - Ford Small Block - 4.000 in. Bore - 1.280 in. CH, -22.00 CC
