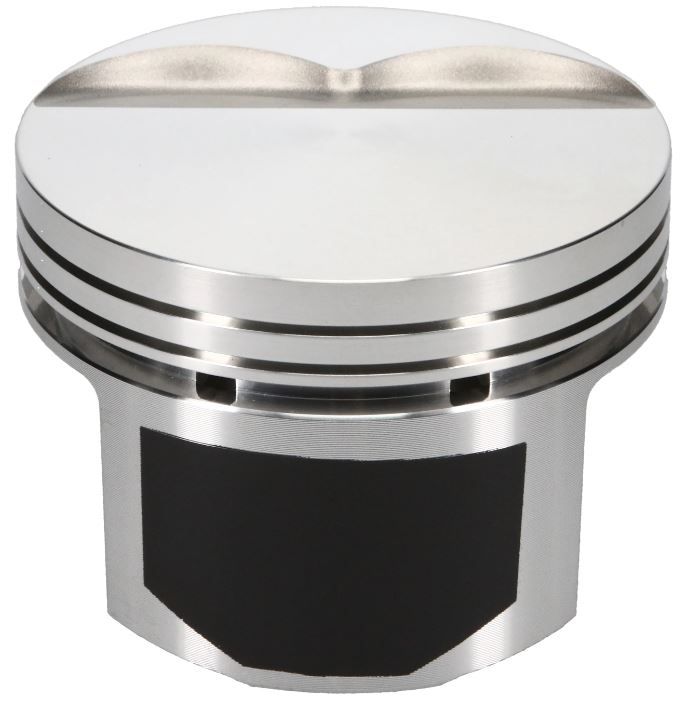

Wiseco RED0075X2 RED Series Ford Small Block Forged Piston Set -5cc Flat Top 4.020 Bore

Manufacturer

Part Number

RED0075X2
Black Friday Price

$899.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco RED0075X2 is part of Wiseco's RED Series (Race Engineered Design) piston line, delivering forged performance for Ford Small Block V8 applications. This set features a -5cc flat top crown, a 4.020 in. bore, and a 1.280 in. compression height, making it a precise-fit solution for builders seeking reliable high-performance internals.

Key Features:

  • Forged from 2618 aluminum alloy — provides the tensile strength required for performance racing and power adder applications including forced induction
  • -5cc flat top crown — optimized for high compression builds with compatibility across a range of Ford Small Block cylinder head combinations
  • 4.020 in. bore diameter with 1.280 in. compression height
  • ArmorGlide skirt coating — reduces operating friction, minimizes noise, and extends skirt and cylinder wall life
  • Dedicated engine-specific strutted forging — maximizes strength-to-weight ratio for the specific application
  • Horizontal slot oiling in pin bores — maintains optimal wrist pin and small-end lubrication for long service life
  • Accumulator groove — helps maintain consistent ring seal and power output
  • Premium rings included

Wiseco's RED Series piston kits are engineered for popular domestic V8 platforms and are well-suited for applications ranging from drag racing to circle track competition.

Products specifications

Oil Ring Tension

Standard

Piston Quantity

8

Second Ring Material

Ductile iron

Stroke

4.000

Top Ring Material

Stainless steel

Wrist Pin Retainer Material

Chrome silicon

Wrist Pin Style

Floating

Make

Ford

Piston Material

2618

Rod Length

6.200

Wrist Pin Outer Diameter

0.927

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.020

Oil Ring Thickness

3.00

Third Ring Material

Stainless Steel

Compression Height

1.280

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine

Small Block

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Make - Web

Ford

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Piston Volume

-5.00

Engine - Web

Small Block

Product Series

RED Series

Wrist Pin Quantity

8

Wrist Pin Retainer Quantity

16

Ring Quantity

8

Ring Set Part Number

4022GFX

Wrist Pin Part Number

S736

Wrist Pin Retainer Part Number

W5595

Wrist Pin Retainer Thickness

0.072

Title

RED Series - Ford, Small Block, 4.020 in. Bore, Piston Set of 8

Cylinder Head

Twisted Wedge

Title - Web

RED Series Piston Set of 8 - Ford Small Block - 4.020 in. Bore - 1.280 in. CH, -5.00 CC
