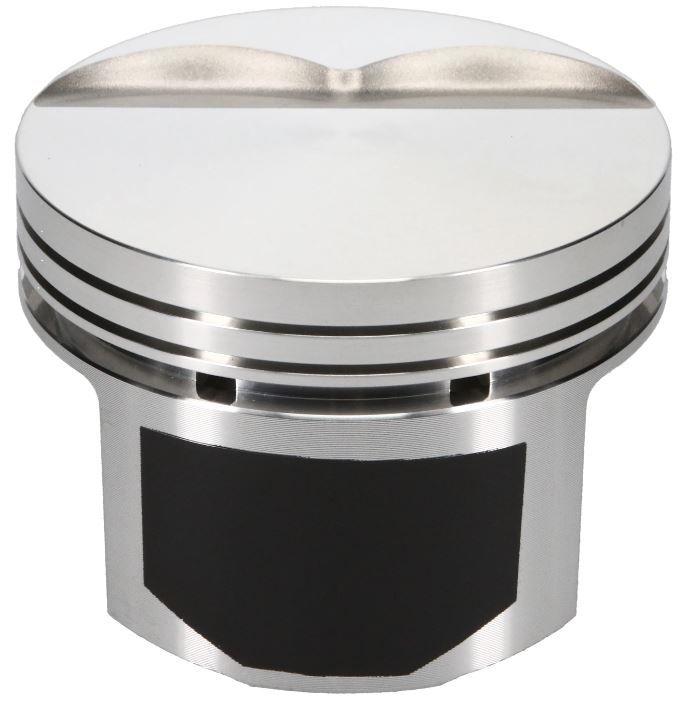

Wiseco RED0074X2 RED Series Ford Small Block Flat Top Forged Piston Bore - 5cc Set 4.020

Manufacturer

Part Number

RED0074X2
Black Friday Price

$899.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

Featuring a -5cc flat top crown, a 4.020-inch bore, and a 1.280-inch compression height, these pistons are engineered to deliver the strength and precision required in high-output domestic V8 builds.

Key Features:

  • -5cc Flat Top Crown — provides a near-zero deck volume for optimized compression ratio tuning
  • 4.020 in. Bore Diameter — sized for stroked or overbored Small Block Ford applications
  • 1.280 in. Compression Height — enables precise piston-to-deck clearance in performance engine builds
  • 0.927 in. Wrist Pin Diameter — heavy-duty pin for increased strength under high loads
  • Forged construction — Race Engineered Design™ strutted forging delivers superior strength-to-weight ratio
  • Engineered, forged, and machined in the USA at Wiseco's facility in Mentor, OH

The RED™ Series piston sets are available for a range of popular domestic V8 platforms and represent the ideal balance of performance and value for drag racing, circle track, and high-performance street builds. Wiseco's over 80 years of piston manufacturing expertise is built into every forging.

Products specifications

Oil Ring Tension

Standard

Piston Quantity

8

Second Ring Material

Ductile iron

Stroke

4.000

Top Ring Material

Stainless steel

Wrist Pin Retainer Material

Chrome silicon

Wrist Pin Style

Floating

Make

Ford

Piston Material

2618

Rod Length

6.200

Wrist Pin Outer Diameter

0.927

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.020

Oil Ring Thickness

3.00

Third Ring Material

Stainless Steel

Compression Height

1.280

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine

Small Block

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Make - Web

Ford

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Piston Volume

-5.00

Engine - Web

Small Block

Product Series

RED Series

Wrist Pin Quantity

8

Wrist Pin Retainer Quantity

16

Ring Quantity

8

Ring Set Part Number

4022GFX

Wrist Pin Part Number

S736

Wrist Pin Retainer Part Number

W5595

Wrist Pin Retainer Thickness

0.072

Cylinder Head

20? Inline Valve

Title

RED Series - Ford, Small Block, 4.020 in. Bore, Piston Set of 8

Title - Web

RED Series Piston Set of 8 - Ford Small Block - 4.020 in. Bore - 1.280 in. CH, -5.00 CC
