Wiseco RED0068X4 RED Series Ford Small Block Flat Top Forged Piston Bore - 5cc Set 4.040

Manufacturer

Part Number

RED0068X4
Black Friday Price

$899.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

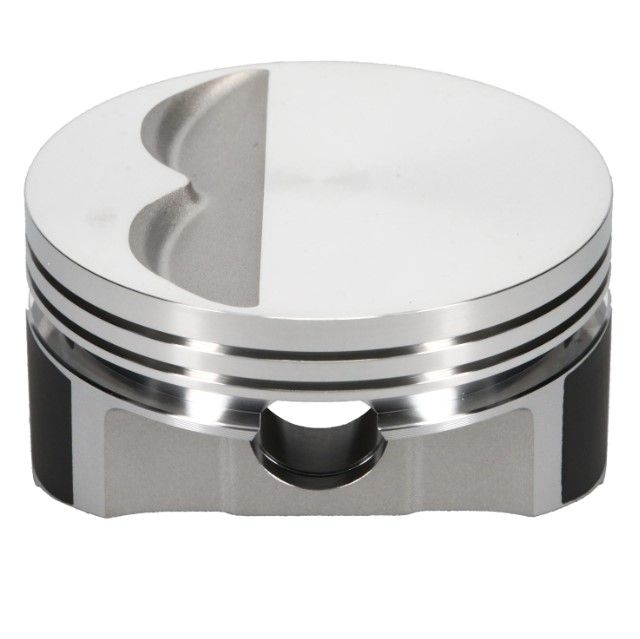

The Wiseco RED0068X4 is a RED Series forged piston set designed for Ford small block engines. Featuring a -5cc flat top crown with a 4.040-inch bore and 1.165-inch compression height, this set delivers the precision fitment and durability demanded by serious performance builds.

Built on Wiseco's Race Engineered Design (RED™) platform, these pistons are forged and machined from 2618 aluminum alloy — the material of choice for power adder and high-output racing applications. The 2618 alloy offers superior tensile strength and thermal resistance compared to standard 4032 forgings, making these pistons well-suited for forced induction, nitrous, and high-compression naturally aspirated combinations.

Key Features:

  • Bore: 4.040 in.
  • Compression Height: 1.165 in.
  • Crown Style: -5cc Flat Top with valve reliefs
  • Wrist Pin Diameter: 0.927 in.
  • Material: 2618 forged aluminum alloy
  • Engineered, forged, and machined in Mentor, Ohio, USA
  • Precision-machined crown for consistent combustion chamber volume
  • Full-floating wrist pin design for reduced friction and improved durability

The Wiseco RED Series offers the ultimate balance of performance and value for domestic V8 platforms, covering applications from circle track racing to drag racing and high-performance street builds.

Products specifications

Oil Ring Tension

Standard

Piston Quantity

8

Second Ring Material

Ductile iron

Stroke

3.250

Top Ring Material

Stainless steel

Wrist Pin Retainer Material

Chrome silicon

Wrist Pin Style

Floating

Make

Ford

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Rod Length

5.400

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.040

Oil Ring Thickness

3.00

Third Ring Material

Stainless Steel

Compression Height

1.165

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine

Small Block

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Make - Web

Ford

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Piston Volume

-5.00

Engine - Web

Small Block

Product Series

RED Series

Wrist Pin Quantity

8

Wrist Pin Retainer Quantity

16

Ring Quantity

8

Ring Set Part Number

4042GFX

Wrist Pin Part Number

S736

Wrist Pin Retainer Part Number

W5595

Wrist Pin Retainer Thickness

0.072

Title

RED Series - Ford, Small Block, 4.040 in. Bore, Piston Set of 8

Title - Web

RED Series Piston Set of 8 - Ford Small Block - 4.040 in. Bore - 1.165 in. CH, -5.00 CC

Cylinder Head

Twisted Wedge
