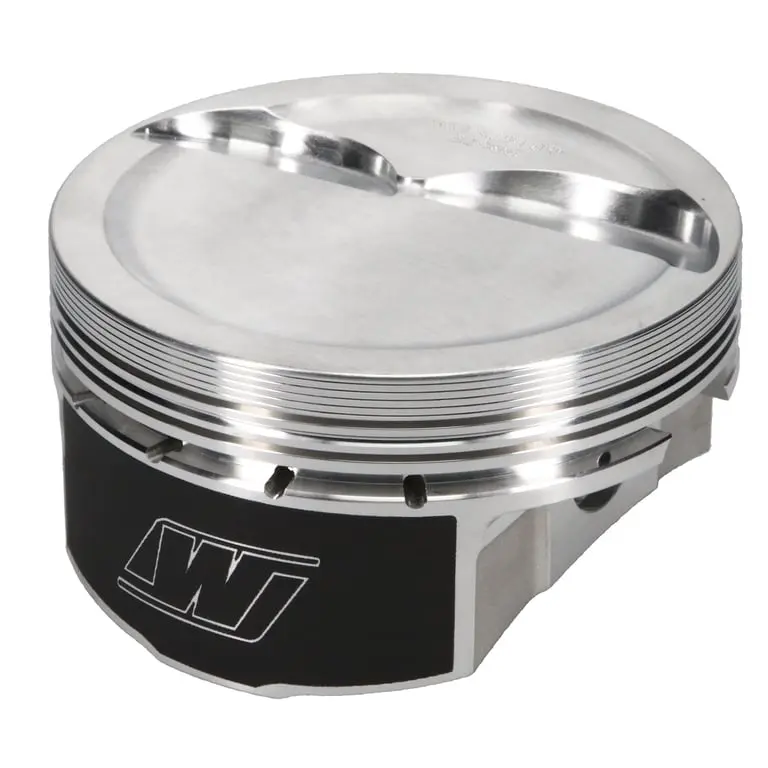

Wiseco RED0068X3 Ford -5cc Flat Top Forged Piston Set 4.030 Bore 1.165 Compression Height RED Series

Manufacturer

Part Number

RED0068X3
Black Friday Price

$899.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco RED0068X3 is a forged piston set from Wiseco's RED Series (Race Engineered Design), engineered for high-performance Ford V8 applications. This set features a -5cc flat top crown, a 4.030 in. bore diameter, and a 1.165 in. compression height, making it well-suited for performance builds targeting a near-zero deck and competitive compression ratios.

Key Features:

  • Forged 2618 aluminum construction — delivers the tensile strength required for performance racing and power-adder applications including forced induction
  • -5cc flat top crown — allows precise compression ratio tuning when combined with your choice of head gasket and deck height
  • 4.030 in. bore diameter with 1.165 in. compression height — engineered for specific Ford V8 engine configurations
  • Dedicated engine-specific forging — optimized strutted design maximizes strength-to-weight characteristics
  • ArmorGlide skirt coating — reduces operating friction, minimizes skirt and cylinder wall wear, and lowers noise levels
  • Horizontal slot oiling in pin bores — maintains optimal wrist pin and small-end lubrication for extended service life
  • Accumulator groove — helps maintain consistent ring seal and power output
  • Premium ring package included — each set ships complete with matched piston rings

The RED Series represents Wiseco's commitment to delivering race-proven forged piston technology for domestic V8 platforms, covering everything from circle track to drag racing. Manufactured in the USA, these pistons are built to handle the demands of both naturally aspirated and boosted engine builds.

Products specifications

Oil Ring Tension

Standard

Piston Quantity

8

Second Ring Material

Ductile iron

Stroke

3.250

Top Ring Material

Stainless steel

Wrist Pin Retainer Material

Chrome silicon

Wrist Pin Style

Floating

Make

Ford

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Rod Length

5.400

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.030

Oil Ring Thickness

3.00

Third Ring Material

Stainless Steel

Compression Height

1.165

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine

Small Block

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Make - Web

Ford

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Piston Volume

-5.00

Engine - Web

Small Block

Product Series

RED Series

Wrist Pin Quantity

8

Wrist Pin Retainer Quantity

16

Ring Quantity

8

Ring Set Part Number

4032GFX

Wrist Pin Part Number

S736

Wrist Pin Retainer Part Number

W5595

Wrist Pin Retainer Thickness

0.072

Title

RED Series - Ford, Small Block, 4.030 in. Bore, Piston Set of 8

Title - Web

RED Series Piston Set of 8 - Ford Small Block - 4.030 in. Bore - 1.165 in. CH, -5.00 CC

Cylinder Head

Twisted Wedge
