Weld Racing Wheels S16000084P38 Solana Drag 20x10 Gloss Black Milled Wheel

The Weld Racing Solana Drag wheel combines timeless six-spoke mesh styling with advanced rotary-forged construction for serious performance applications. This 20x10 wheel features a gloss black finish with precision-milled spoke accents, delivering both aggressive aesthetics and functional weight reduction for drag racing and high-performance street use.

Rotary-Forged Performance Construction:

Weld's rotary-forming process creates a wheel that is approximately 15% lighter than equivalent cast wheels while maintaining exceptional strength. The manufacturing technique uses heat, pressure, and rotation to compress and stretch the barrel, producing material properties closer to fully forged wheels at a more accessible price point. This construction meets SAE requirements for 3,500 lbs with 44-inch tires, providing substantial safety margins for loaded trucks and towing applications.

Key Specifications:

• Diameter: 20 inches
• Width: 10 inches
• Bolt Pattern: 6x139.7mm (6x5.5")
• Offset: +38mm
• Backspacing: 7.00 inches
• Finish: Gloss Black with Milled Spokes
• Construction: Rotary-Forged (Flow-Formed)

Design and Fitment:

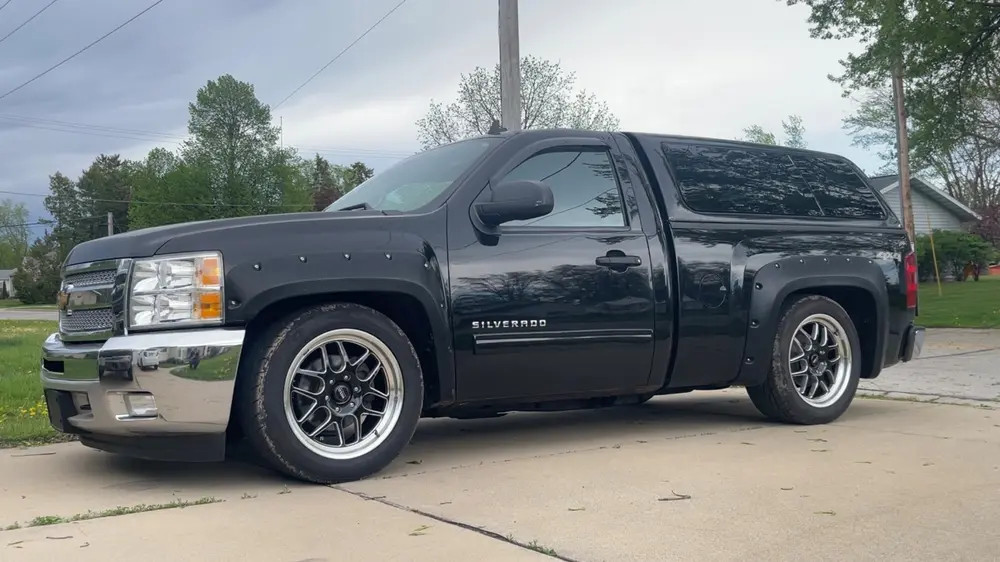

The Solana Drag features an iconic six-spoke mesh design that works equally well on vintage American muscle trucks and modern performance vehicles. The knurled bead seat is specifically engineered for drag racing applications, helping to prevent tire bead separation during high-horsepower launches. The 6-lug bolt pattern fits full-size trucks including Chevrolet Silverado 1500, GMC Sierra 1500, and Ram TRX models.

American Manufacturing Heritage:

Every Weld Racing wheel is manufactured at the company's 140,000 square-foot facility in Kansas City, Missouri. Founded in 1967 by championship Sprint Car driver Greg Weld, the company has built a legendary reputation in professional drag racing, with wheels proven at speeds exceeding 330 mph in NHRA competition. The same forging techniques and quality standards used in professional racing carry through to every street and truck wheel Weld produces.

Important Installation Note:

Weld wheels require 60-degree conical seat lug nuts, typically M14 x 1.5 thread. Factory lug nuts from GM, Ford, and Ram trucks will not seat properly and can create safety hazards or damage the wheel finish. Conical seat lug nuts should be purchased separately to ensure proper installation.
