FASS NDTSF18250F220G No Drop Series Diesel Fuel System Kit 220 GPH

The FASS No Drop Series Fuel System Kit combines the Titanium Signature Series diesel fuel lift pump with an integrated fuel sump to deliver superior fuel filtration and simplified installation without the need to drop the fuel tank. This comprehensive kit is engineered to provide clean, air-free diesel fuel while supporting engines producing 700-900 horsepower.

Advanced Filtration Technology:

• Removes over 99% of water from diesel fuel
• Eliminates entrained air and vapor using patented FASS air separation process
• Filters debris down to 2 microns absolute for maximum protection
• Increases fuel lubricity by at least 10% to extend injection component life
• Mass Flow Return (MFR) technology continuously polishes fuel for optimal cleanliness

Performance Features:

• Flow Rate: 220 gallons per hour at 65 PSI
• Supports 700-900 horsepower diesel engines
• FASS Whisper Technology drastically reduces pump noise while increasing flow rates
• Performance Radius Cuts (PRC) create smooth fuel flow and prevent air reintroduction
• Less than 2% motor failure rating with limited lifetime warranty

No Drop Installation Advantage:

• Includes SK5501 fuel sump kit for easy installation
• Eliminates the need to remove or drop the fuel tank during installation
• Bolt-on mounting brackets use factory bed bolts for secure installation
• Offers significant cost savings versus purchasing pump and sump separately
• All mounting hardware and installation components included

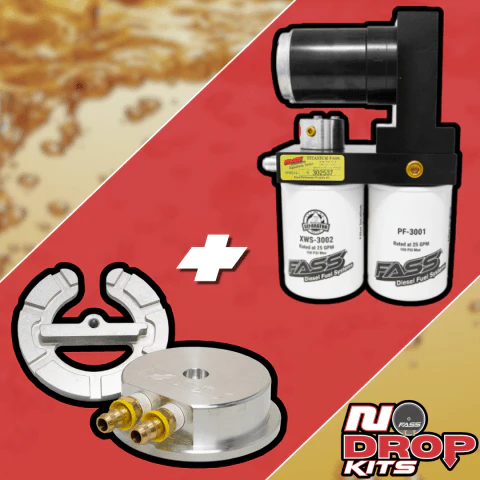

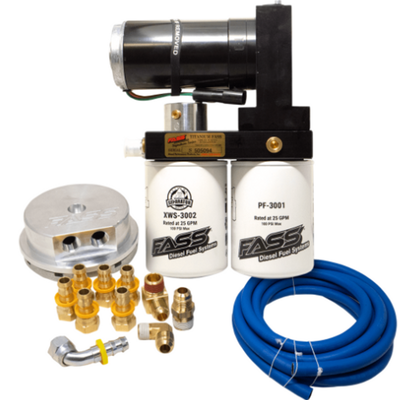

This kit includes the TSF18250F220G Titanium Signature Series fuel pump and complete sump assembly. Designed and manufactured in the USA, this system provides far superior fuel flow compared to OEM setups while protecting diesel injectors from fuel-related failure issues. The included fuel sump allows operation down to low fuel levels while maintaining consistent fuel pressure and delivery.
