Manufacturer

Part Number

HFR7
Black Friday Price

$15.18

$25.69 Save 41%

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

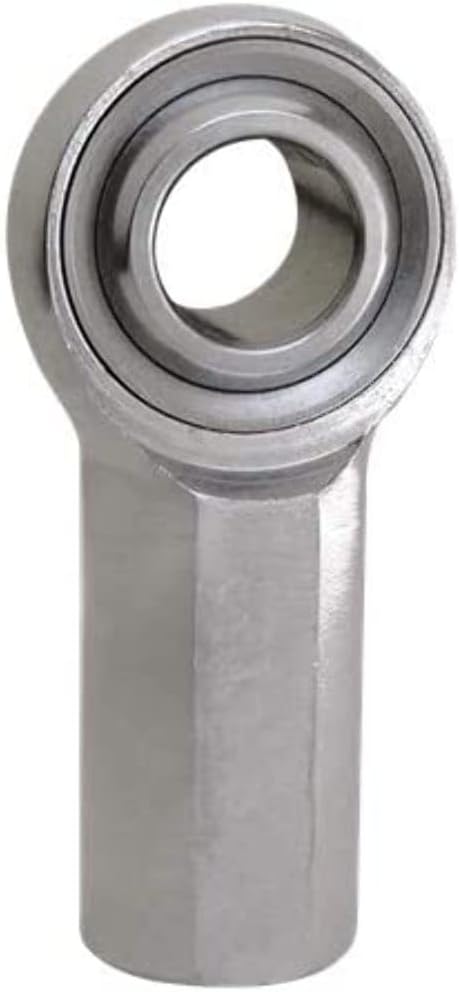

The QA1 Precision Products HFR7 is a high-misalignment, chromoly alloy rod end designed for steering and suspension applications requiring exceptional articulation and durability. This 3-piece forged design features a heat-treated chromoly body with a Teflon-lined race, providing smooth operation and extended service life even in demanding motorsports environments.

Key Features:

  • 7/16-20 right-hand female threaded shank for easy installation
  • High-misalignment design allows for greater angular movement than standard rod ends
  • 3-piece forged construction with heat-treated chromoly alloy body
  • Teflon-lined race reduces friction and eliminates the need for regular lubrication
  • Precision-engineered ball and race for smooth articulation under load
  • Ideal for tie rods, drag links, and steering linkage applications
  • Suitable for on-road and off-road racing, street rods, and custom suspension builds

QA1's HFR-series rod ends are trusted by professional racers and enthusiasts for their consistent performance and reliability. The high-misalignment design makes this rod end particularly well-suited for steering applications where extreme articulation angles are required.

Products specifications

A (+/-0.015)

1.812

Approx Bearing Weight

0.2

B (+0.0015/-0.0005)

0.4375

Ball Dia Ref

0.812

C (+0.062/-0.031)

1.062

D (+/-0.010)

1.125

E (+/-0.010)

0.75

F (+/-0.010)

0.625

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

14

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.562 in.

Rod End Centerline Length

1.812 in.

Rod End Construction

3-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.438 in.

Rod End Head Diameter

1.125 in.

Rod End Head Width

0.562 in.

Rod End Material

Chromoly

Rod End Misalign Angle (degrees)

14 degrees

Rod End Static Load Capacity

10,285 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

7/16-20 RH in.

T (+/-0.005)

0.437

Thread Length

1.062 in.

Thread Type

Right Hand

Thread UNF-2B

7/16 -20

UTL Radical Static

10285

W (+0.000/-0.005)

0.562

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov

Title

QA1 Suspension Rod End Bearing HFR7
