QA1 PCMR10-12 Chromoly Steel Male Rod End with PTFE Liner

Manufacturer

Part Number

PCMR10-12

8 reviews

Sale Price

$14.42

In Stock (10+)

Usually delivered within 2 days

Check out with

No Hassle Returns

Live-in-stock inventory

Fitment guaranteed

Show details for QA1 PCMR10-12 Chromoly Steel Male Rod End with PTFE Liner

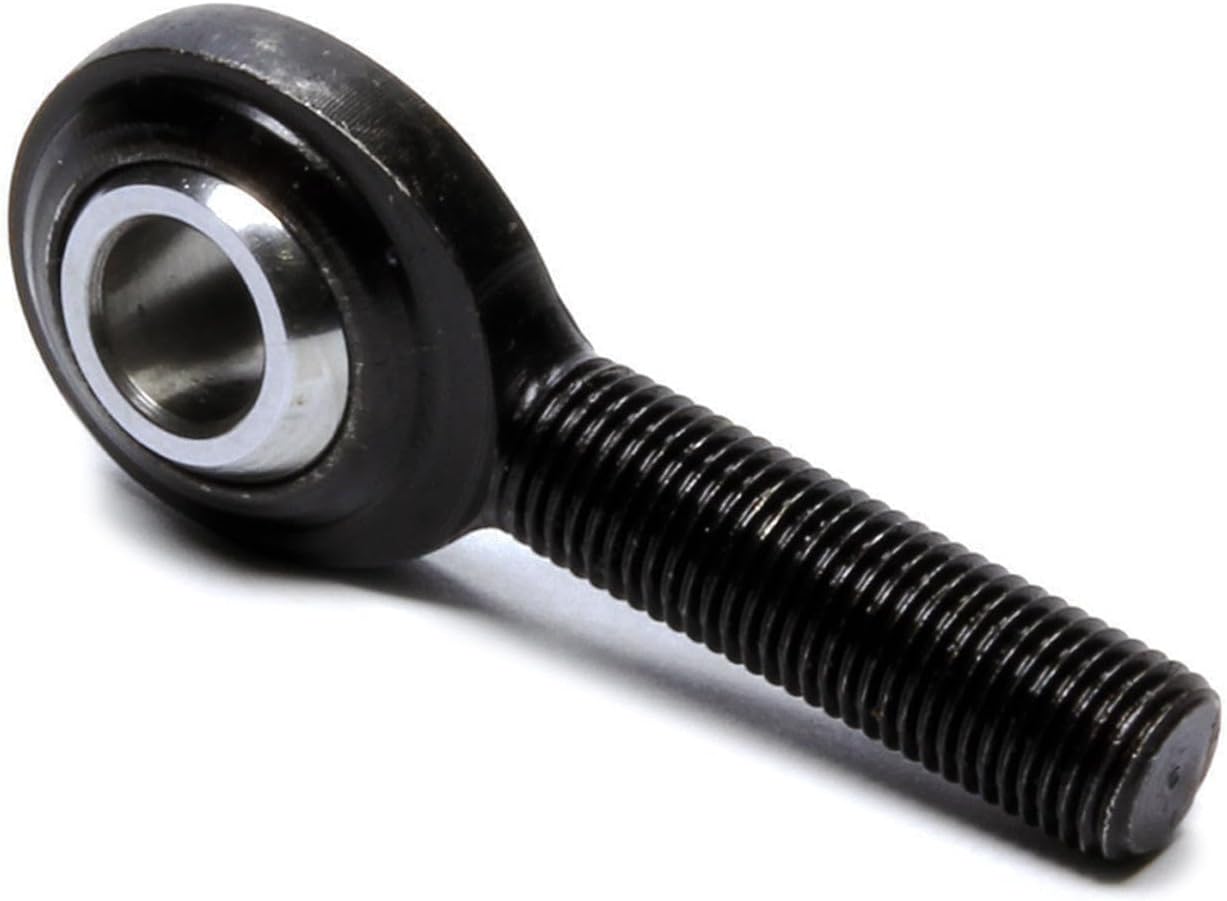

Picture of QA1 PCMR10-12 Chromoly Steel Male Rod End with PTFE Liner

QA1 PCMR10-12 Chromoly Steel Male Rod End with PTFE Liner — image 1

QA1 PCMR10-12 Chromoly Steel Male Rod End with PTFE Liner — image 2

Product Details

The QA1 PCMR10-12 is a high-performance chromoly steel male rod end from the PCM-T Series, designed for applications requiring superior strength and self-lubricating performance. This economical 2-piece "mohawk" design features only two components—a precision-ground ball and a heat-treated body—with the body swaged around the ball to secure it in place. The PTFE liner provides maintenance-free operation and smooth articulation in demanding environments.

Ball Specifications:

52100 bearing steel construction for maximum durability
Heat treated for enhanced strength
Hard chrome plated for wear resistance
Precision ground for smooth operation

Body Specifications:

Chromoly steel construction for superior load capacity
Heat treated for added strength
Black oxide coating for corrosion resistance
PTFE lined for self-lubricating performance

The PCM-T Series offers superior load ratings compared to carbon steel 2-piece rod ends, making it an excellent choice for performance racing, off-road vehicles, and other demanding applications where reliability and strength are critical. The black oxide finish provides corrosion resistance while maintaining a professional appearance.

Products specifications

A (+/-0.015)

2.875

Approx Bearing Weight

0.48

B (+0.0015/-0.0005)

0.625

Ball Dia Ref

1.125

C (+0.062/-0.031)

1.75

D Ref

1.75

Grease Fitting

Heat-Treated

Yes

Jam Nut Included

Misalign Angle

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.875 in.

Rod End Centerline Length

2.875 in.

Rod End Construction

2-piece

Rod End Finish

Black oxide

Rod End Head Bore Size

0.625 in.

Rod End Head Diameter

1.750 in.

Rod End Head Width

0.750 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

26 degrees

Rod End Static Load Capacity

25,000 lbs.

Rod End Static Load Capacity (lbs)

27,000 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

3/4-16 RH in.

Thread Length

1.750 in.

Thread Type

Right Hand

Thread UNF-3A

3/4 -16

UTL Radical Static

27000

W (+/-0.005)

0.75

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
